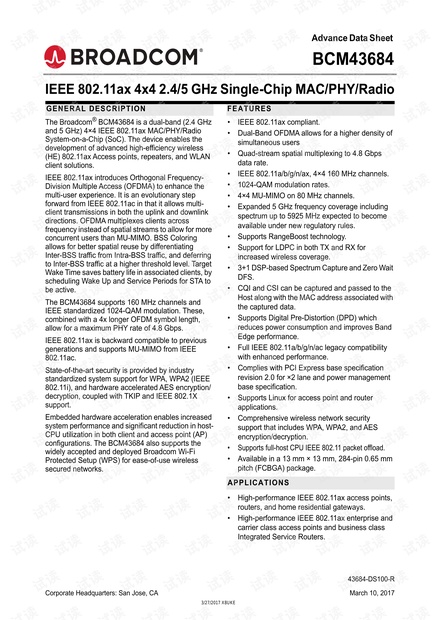

3/27/2017 X8UKE

43684-DS100-R

Corporate Headquarters: San Jose, CA March 10, 2017

Advance Data Sheet

BCM43684

IEEE 802.11ax 4x4 2.4/5 GHz Single-Chip MAC/PHY/Radio

GENERAL DESCRIPTION

FEATURES

The Broadcom

BCM43684 is a dual-band (2.4 GHz

and 5 GHz) 4×4 IEEE 802.11ax MAC/PHY/Radio

System-on-a-Chip (SoC). The device enables the

development of advanced high-efficiency wireless

(HE) 802.11ax Access points, repeaters, and WLAN

client solutions.

IEEE 802.11ax introduces Orthogonal Frequency-

Division Multiple Access (OFDMA) to enhance the

multi-user experience. It is an evolutionary step

forward from IEEE 802.11ac in that it allows multi-

client transmissions in both the uplink and downlink

directions. OFDMA multiplexes clients across

frequency instead of spatial streams to allow for more

concurrent users than MU-MIMO. BSS Coloring

allows for better spatial reuse by differentiating

Inter-BSS traffic from Intra-BSS traffic, and deferring

to Inter-BSS traffic at a higher threshold level. Target

Wake Time saves battery life in associated clients, by

scheduling Wake Up and Service Periods for STA to

be active.

The BCM43684 supports 160 MHz channels and

IEEE standardized 1024-QAM modulation. These,

combined with a 4x longer OFDM symbol length,

allow for a maximum PHY rate of 4.8 Gbps.

IEEE 802.11ax is backward compatible to previous

generations and supports MU-MIMO from IEEE

802.11ac.

State-of-the-art security is provided by industry

standardized system support for WPA, WPA2 (IEEE

802.11i), and hardware accelerated AES encryption/

decryption, coupled with TKIP and IEEE 802.1X

support.

Embedded hardware acceleration enables increased

system performance and significant reduction in host-

CPU utilization in both client and access point (AP)

configurations. The BCM43684 also supports the

widely accepted and deployed Broadcom Wi-Fi

Protected Setup (WPS) for ease-of-use wireless

secured networks.

• IEEE 802.11ax compliant.

• Dual-Band OFDMA allows for a higher density of

simultaneous users

• Quad-stream spatial multiplexing to 4.8 Gbps

data rate.

• IEEE 802.11a/b/g/n/ax, 4×4 160 MHz channels.

• 1024-QAM modulation rates.

• 4×4 MU-MIMO on 80 MHz channels.

• Expanded 5 GHz frequency coverage including

spectrum up to 5925 MHz expected to become

available under new regulatory rules.

• Supports RangeBoost technology.

• Support for LDPC in both TX and RX for

increased wireless coverage.

• 3+1 DSP-based Spectrum Capture and Zero Wait

DFS.

• CQI and CSI can be captured and passed to the

Host along with the MAC address associated with

the captured data.

• Supports Digital Pre-Distortion (DPD) which

reduces power consumption and improves Band

Edge performance.

• Full IEEE 802.11a/b/g/n/ac legacy compatibility

with enhanced performance.

• Complies with PCI Express base specification

revision 2.0 for ×2 lane and power management

base specification.

• Supports Linux for access point and router

applications.

• Comprehensive wireless network security

support that includes WPA, WPA2, and AES

encryption/decryption.

• Supports full-host CPU IEEE 802.11 packet offload.

• Available in a 13 mm × 13 mm, 284-pin 0.65 mm

pitch (FCBGA) package.

APPLICATIONS

• High-performance IEEE 802.11ax access points,

routers, and home residential gateways.

• High-performance IEEE 802.11ax enterprise and

carrier class access points and business class

Integrated Service Routers.

3/27/2017 X8UKE

Table of ContentsBCM43684 Advance Data Sheet

Broadcom

IEEE 802.11ax 4x4 2.4/5 GHz Single-Chip MAC/PHY/Radio

March 10, 2017 • 43684-DS100-R Page 4

BROADCOM CONFIDENTIAL

Table of Contents

Section 1: Introduction ....................................................................................................... 6

General Description ..................................................................................................................................... 6

Features .................................................................................................................................................. 7

Applications ............................................................................................................................................. 7

Functional Block Diagram ....................................................................................................................... 8

OFDMA (HE) Technology ....................................................................................................................... 9

Section 2: Functional Description ................................................................................... 10

Global Functions ........................................................................................................................................ 10

Power Management .............................................................................................................................. 10

Voltage Regulators................................................................................................................................ 10

AVS Section .......................................................................................................................................... 10

Reset ..................................................................................................................................................... 10

GPIO Interface ...................................................................................................................................... 11

Smart Antenna Subsystem Interface..................................................................................................... 11

UART Interface...................................................................................................................................... 11

OTP ....................................................................................................................................................... 11

SPROM Interface .................................................................................................................................. 11

JTAG Interface ...................................................................................................................................... 12

SWD Interface ....................................................................................................................................... 12

Crystal Oscillator ................................................................................................................................... 12

Fundamental Crystal Oscillator Mode ................................................................................................... 13

Fundamental Crystal Example .............................................................................................................. 14

Host CPU Offload Support .................................................................................................................... 14

Power Topology .................................................................................................................................... 15

PCI Express Interface................................................................................................................................. 17

Transaction Layer Interface................................................................................................................... 18

Data Link Layer ..................................................................................................................................... 18

Physical Layer ....................................................................................................................................... 18

Logical Subblock ................................................................................................................................... 18

Scrambler/Descrambler......................................................................................................................... 18

8B/10B Encoder/Decoder...................................................................................................................... 19

Elastic FIFO........................................................................................................................................... 19

Electrical Subblock ................................................................................................................................ 19

Configuration Space.............................................................................................................................. 19

IEEE 802.11ax MAC Description ............................................................................................................... 20

IEEE 802.11 PHY Description .................................................................................................................... 22

3/27/2017 X8UKE

Table of ContentsBCM43684 Advance Data Sheet

Broadcom

IEEE 802.11ax 4x4 2.4/5 GHz Single-Chip MAC/PHY/Radio

March 10, 2017 • 43684-DS100-R Page 5

BROADCOM CONFIDENTIAL

Dual-Band Radio Transceiver ............................................................................................................... 23

Receiver Path................................................................................................................................. 23

Transmitter Path............................................................................................................................. 23

Calibration ...................................................................................................................................... 23

Section 3: BGA Ball Assignments ................................................................................... 24

Ballout Diagram .......................................................................................................................................... 24

Ball and Signal Definitions ........................................................................................................................ 25

Signals by Signal Name ........................................................................................................................ 29

Section 4: Signal and Pin Descriptions........................................................................... 33

Package Signal Descriptions .................................................................................................................... 33

Strapping Options ...................................................................................................................................... 40

Section 5: RF Specifications ............................................................................................ 41

Introduction................................................................................................................................................. 41

WLAN .................................................................................................................................................... 41

2.4 GHz Band General RF Specifications ............................................................................................. 42

WLAN 2.4 GHz Receiver Performance Specifications.......................................................................... 42

WLAN 2.4 GHz Transmitter Performance Specifications ....................................................................... 46

WLAN 5 GHz Receiver Performance Specifications ............................................................................... 47

WLAN 5 GHz Transmitter Performance Specifications .......................................................................... 50

General Spurious Emissions Specifications ........................................................................................... 51

Section 6: Electrical Characteristics ............................................................................... 52

Absolute Maximum Ratings ...................................................................................................................... 52

Recommended Operating Conditions and DC Characteristics ............................................................. 53

Section 7: Timing Characteristics.................................................................................... 54

Power Sequence Timing ............................................................................................................................ 54

SPROM Timing Diagram ............................................................................................................................ 56

PCI Express Parameters ............................................................................................................................ 57

Section 8: Thermal information........................................................................................ 59

Junction Temperature Estimation and PSI

Versus Theta

................................................................ 59

Section 9: Package Information ....................................................................................... 60

Section 10: Ordering Information .................................................................................... 61

Revision History ......................................................................................................................................... 62
