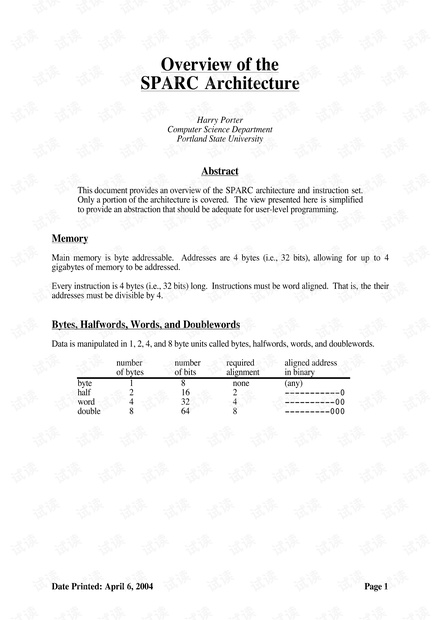

Date Printed: April 6, 2004 Page 1
Overview of the
SPARC Architecture
Harry Porter
Computer Science Department
Portland State University
Abstract
This document provides an overview of the SPARC architecture and instruction set.
Only a portion of the architecture is covered. The view presented here is simplified
to provide an abstraction that should be adequate for user-level programming.
Memory
Main memory is byte addressable. Addresses are 4 bytes (i.e., 32 bits), allowing for up to 4
gigabytes of memory to be addressed.
Every instruction is 4 bytes (i.e., 32 bits) long. Instructions must be word aligned. That is, the their
addresses must be divisible by 4.
Bytes, Halfwords, Words, and Doublewords
Data is manipulated in 1, 2, 4, and 8 byte units called bytes, halfwords, words, and doublewords.
number number required aligned address
of bytes of bits alignment in binary
byte 1 8 none (any)
half 2 16 2 -----------0
word 4 32 4 ----------00
double 8 64 8 ---------000

Date Printed: April 6, 2004 Page 2
The bits within a word are numbered from 0 (least significant) to 31 (most significant).
byte:
7 0
half (2 bytes):
15 0
|
word (4 bytes):
31 0
| | |
double (8 bytes):
63 0
| | | | | | |
Alignment
Halfword, word, and doubleword data must be aligned in memory. For example, a 4 byte word
value must be placed at an address that is divisible by 4, and a doubleword must be placed at an
address that is divisible by 8. The load and store instructions will cause error exceptions if an
attempt is made to move a halfword, word, or doubleword quantity to/from an address that is not
properly aligned.
Big Endian
The SPARC architecture is “Big Endian,”!meaning that when a word-sized quantity is stored in 4
bytes of memory, the most significant byte is stored in the first byte (i.e., lowest numbered address)
and the least significant byte is stored in the last byte (i.e., the byte with the greatest address). In
other words, if a word is stored at address x, the most significant byte will be stored in byte x and
the least significant byte will be stored in address x+3.
Some other (non-SPARC) computers use “Little Endian” order, in which the least significant byte
is stored in the lowest numbered address.
Binary, Decimal, and Hex Notation
An integer may be represented many ways. Normally, we represent integers in decimal using 10
numeral symbols (0, 1, 2, 3, 4, 5, 6, 7, 8, and 9). The position (i.e., “place”) of each digit in the
representation is significant. The place values are: ones, tens, hundreds, thousands, and so on.
Integers represented in binary use only two numeral symbols (0 and 1). The bit in each place is
multiplied by a power of 2. Thus, the place values are: 1's, 2's, 4's, 8's, 16's, and so on.
Integers represented in hex use sixteen digits (0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F). The
hex digit in each place is multiplied by a power of 16. Thus, the place values are: 1's, 16's, 256's,
4096's, 65536's, and so on.

Date Printed: April 6, 2004 Page 3
The first 16 numbers are shown represented in decimal, hex, and binary.
decimal hex binary
0 0 0000
1 1 0001
2 2 0010
3 3 0011
4 4 0100
5 5 0101
6 6 0110
7 7 0111
8 8 1000
9 9 1001
10 A 1010
11 B 1011
12 C 1100
13 D 1101
14 E 1110
15 F 1111
Note that is takes exactly 4 binary digits to represent one hex digit. Thus, there is a simple and
immediate correspondence between numbers represented in binary and in hex. As a result, we
generally use hex notation to represent binary quantities. The translation between hex notation and
binary notation is trivial; the translation between binary and decimal requires computation.
number number example same example
of bytes of bits in hex in binary
byte 1 8 3A 0011,1010
half 2 16 3A0F 0011,1010,0000,1111
word 4 32 3A0F 12D8 0011,1010,0000,1111,0001,0010,1101,1000
In octal notation, three binary bits are represented with a number between 0 and 7. The octal system
is problematic since there is a mismatch between the 3 bits in an octal digit and the 8 bits in a byte.
In the SPARC assembler, numbers can be represented in any base; the assembler will convert them
all to binary.
Decimal: 1234
Hex: 0x04D2, 0x04d2 (capitalization is not important)
Octal: 02322 (A leading zero indicates octal)
Signed Numbers
A byte (or halfword, or word) contains a bit pattern which may be interpreted either as an unsigned
integer or as a signed integer.
Signed integers are represented using the “two's complement” system. The following discussion
refers to 32 bit quantities, but the ideas apply analogously to other sizes of data, too.

Date Printed: April 6, 2004 Page 4
The table below shows how 4-byte signed numbers are represented.
bit hex value
pattern representation (in decimal)
0111...1111 7FFF FFFF 2,147,483,647
0111...1110 7FFF FFFE 2,147,483,646
0111...1101 7FFF FFFD 2,147,483,645
•!•!•
0000...0011 0000 0003 3
0000...0010 0000 0002 2
0000...0001 0000 0001 1
0000...0000 0000 0000 0
1111...1111 FFFF FFFF -1
1111...1110 FFFF FFFE -2
1111...1101 FFFF FFFD -3
•!•!•
1000...0010 8000 0002 -2,147,483,646
1000...0001 8000 0001 -2,147,483,647
1000...0000 8000 0000 -2,147,483,648
The most significant bit (bit 31) is the sign bit: 0=positive (or zero), 1=negative. Note that there is
always one more negative number than there are positive numbers.
The algorithm for addition and subtraction is the same for signed and unsigned numbers. Thus,
there is only one instruction for addition (and not one for signed addition and one for unsigned
addition).
To negate a signed number, the algorithm is: flip all the bits and then add one. For example, to
negate 2:
2 = 0000 0000 0000 0000 0000 0000 0000 0010
flipping bits = 1111 1111 1111 1111 1111 1111 1111 1101
adding one = 1111 1111 1111 1111 1111 1111 1111 1110
The result is just the two's complement representation of -2. Going from negative to positive works,
too:
-2 = 1111 1111 1111 1111 1111 1111 1111 1110
flipping bits = 0000 0000 0000 0000 0000 0000 0000 0001
adding one = 0000 0000 0000 0000 0000 0000 0000 0010
Every number can be negated except the most negative number. The result of trying to negate the
most negative number gives that number itself:
-2,147,483,648 = 1000 0000 0000 0000 0000 0000 0000 0000
flipping bits = 0111 1111 1111 1111 1111 1111 1111 1111
adding one = 1000 0000 0000 0000 0000 0000 0000 0000

Date Printed: April 6, 2004 Page 5
The range of values that can be represented depends on the number of bits being used:
byte half word
total 2
8
2
16
2
32
number = 256 = 65,536 = 4,294,967,296
of values = 64K = 4G
largest 2
7
-1 2
15
-1 2
31
-1
positive = 127 = 32,767 = 2,147,483,647
number = 32K-1 = 2G-1
most -2
7
-2
15
-2
31
negative = -128 = -32,768 = -2,147,483,648
number = -32K = -2G
Load Store Architecture
The SPARC uses a “load-store” architecture. Operations (such as arithmetic and logical
functions) can only be performed on data stored in registers. It is necessary to move the data from
memory to registers (load it) and back to memory (store it) with separate instructions. The
instructions in the following example are not exactly SPARC instructions, but they give you the
idea of load-store architectures. Here, “x,” “y,” and “z” are the names of some memory
locations and “r1,” “r2,” and “r3” are the names of registers.
load x,r1
load y,r2
add r1,r2,r3
store r3,z
The first instruction moves data from memory into register “r1.” The second instructions moves a
number into register “r2.” The third instruction adds the values in “r1” and “r2,” placing the
result into register “r3.” The final instructions moves data from register “r3” back to main
memory.
Each SPARC instruction either does a memory access or does a computation. The idea is that each
instruction will be executed in one machine cycle. (Actually, in one machine cycle on average; due
to pipelining—i.e., instruction overlapping—the execution of each instruction will be spread over
several cycles.)
This architecture works best if all (or most all) the data can be kept in registers. Toward this end,
the SPARC provides a large number of registers. Accessing memory slows microprocessors down
and the goal is to minimize memory accessing by keeping all relevant data in registers.
Integer Registers
Each running process may access 32 “integer” registers. (“Floating-point” register are discussed
later.) Each integer register contains one word (32 bits) of data. Actually, each integer register has
