W25Q80, W25Q16, W25Q32
Publication Release Date: September 26, 2007
- 5 - Preliminary - Revision B
1. GENERAL DESCRIPTION
The W25Q80 (8M-bit), W25Q16 (16M-bit), and W25Q32 (32M-bit) Serial Flash memories provide a
storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and
performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM,
executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The devices
operate on a single 2.7V to 3.6V power supply with current consumption as low as 5mA active and
1µA for power-down. All devices are offered in space-saving packages.
The W25Q80/16/32 array is organized into 4,096/8,192/16,384 programmable pages of 256-bytes
each. Up to 256 bytes can be programmed at a time using the Page Program instructions. Pages can
be erased in groups of 16 (sector erase), groups of 128 (32KB block erase), groups of 256 (64KB
block erase) or the entire chip (chip erase). The W25Q80/16/32 has 256/512/1024 erasable sectors
and 16/32/64 erasable blocks respectively. The small 4KB sectors allow for greater flexibility in
applications that require data and parameter storage. (See figure 2.)
The W25Q80/16/32 supports the standard Serial Peripheral Interface (SPI), and a high performance
Dual/Quad output as well as Dual/Quad I/O SPI using SPI pins: Serial Clock, Chip Select, Serial Data
I/O0 (DI), I/O1 (DO), I/O2 (/WP), and I/O3 (/HOLD). SPI clock frequencies of up to 80MHz are
supported allowing equivalent clock rates of 160MHz for Dual Output and 320MHz for Quad Output
when using the Fast Read Dual/Quad Output instructions. These transfer rates are comparable to
those of 8 and 16-bit Parallel Flash memories.
A Hold pin, Write Protect pin and programmable write protection, with top or bottom array control,
provide further control flexibility. Additionally, the device supports JEDEC standard manufacturer and
device identification with a 64-bit Unique Serial Number.
2. FEATURES
• Family of SpiFlash Memories
– W25Q80: 8M-bit / 1M -byte (1,048,576)
– W25Q16: 16M-bit / 2M-byte (2,097,152)
– W25Q32: 32M-bit / 4M-byte (4,194,304)
– 256-bytes per programmable page
• Standard, Dual or Quad SPI
– Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
– Dual SPI: CLK, /CS, IO
0
, IO
1
, /WP, /Hold
– Quad SPI: CLK, /CS, IO
0
, IO
1
, IO
2
, IO
3
• Highest Performance Serial Flash
– Up to 6X that of ordinary Serial Flash
– 80MHz clock operation
– 160MHz equivalent Dual SPI
– 320MHz equivalent Quad SPI
– 40MB/S continuous data transfer rate
– 30MB/S random access (32-byte fetch)
– Comparable to X16 Parallel Flash
• Low Power, Wide Temperature Range
– Single 2.7 to 3.6V supply
– 4mA active current, <1µA Power-down (typ.)
– -40°C to +85°C operating range
• Flexible Architecture with 4KB sectors
– Uniform Sector Erase (4K-bytes)
– Block Erase (32K and 64K-bytes)
– Program one to 256 bytes
– Up to 100,000 erase/write cycles
– 20-year data retention
• Advanced Security Features
– Software and Hardware Write-Protect
– Top or Bottom, Sector or Block selection
– Lock-Down and OTP protection
(1)
– 64-Bit Unique ID for each device
(1)
Note 1:
These features are on special order.
Please contact Winbond for details.

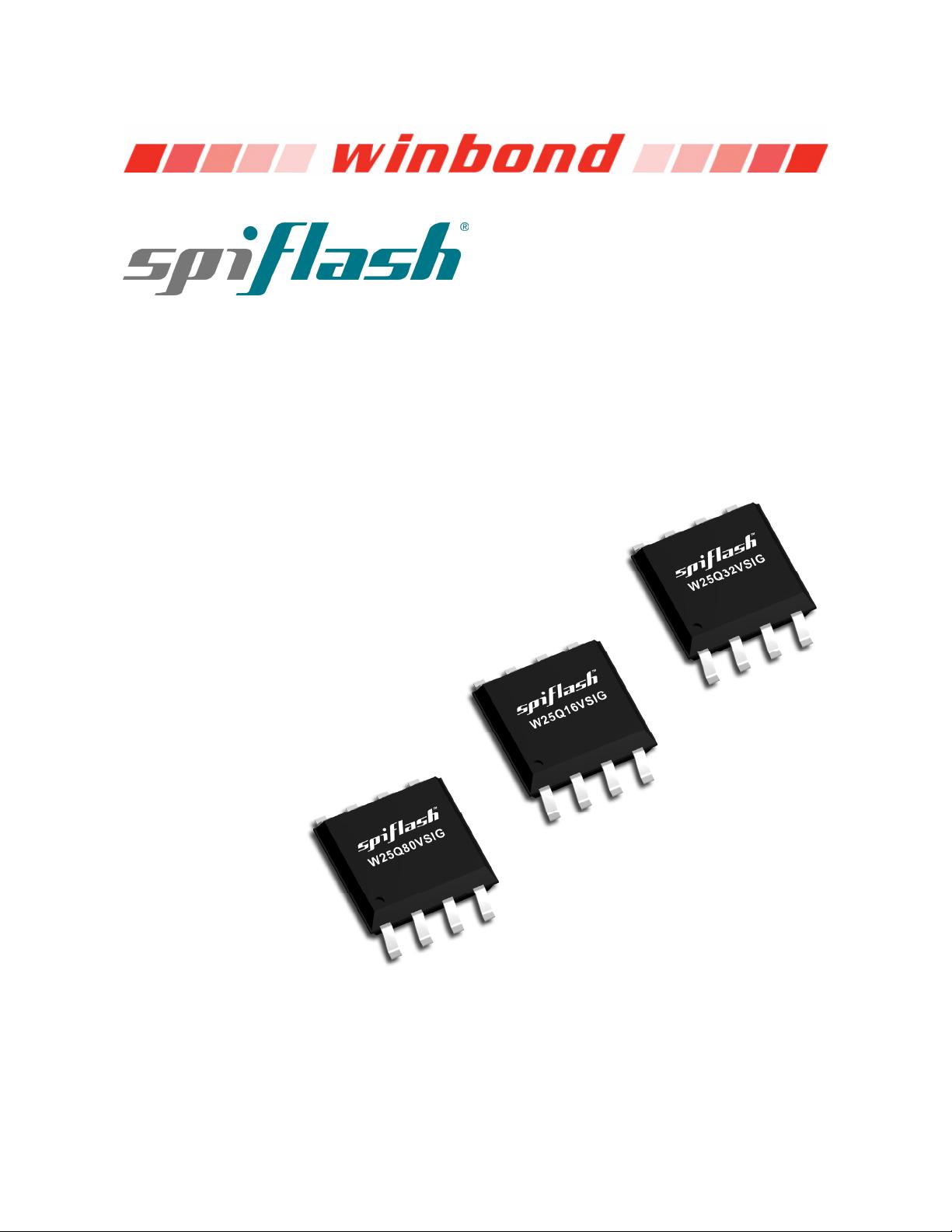

• Space Efficient Packaging
– 8-pin SOIC 208-mil
– 8-pad WSON 6x5-mm (W25Q80 & W25Q16)
–16-pin SOIC 300-mil (W25Q16 & W25Q32)
