ISO 11451-2:2015 specifies a method for testing the immunity of passenger cars and commercial vehicles to electrical disturbances from off-vehicle radiation sources, regardless of the vehicle propulsion system (e.g. spark ignition engine, diesel engine, electric motor). The electromagnetic disturbances considered are limited to narrowband electromagnetic fields.
资源详情
资源评论
资源推荐
©

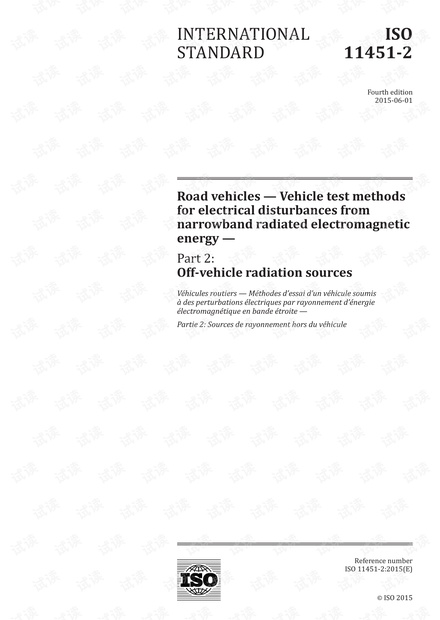

ISO 2015
Road vehicles — Vehicle test methods
for electrical disturbances from
narrowband radiated electromagnetic
energy —
Part 2:
Off-vehicle radiation sources
Véhicules routiers — Méthodes d’essai d’un véhicule soumis
à des perturbations électriques par rayonnement d’énergie
électromagnétique en bande étroite —
Partie 2: Sources de rayonnement hors du véhicule
INTERNATIONAL
STANDARD
ISO
11451-2
Fourth edition
2015-06-01
Reference number
ISO 11451-2:2015(E)
ISO 11451-2:2015(E)
ii © ISO 2015 – All rights reserved
COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
the requester.
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
www.iso.org
ISO 11451-2:2015(E)
Foreword ........................................................................................................................................................................................................................................iv
1 Scope
................................................................................................................................................................................................................................. 1
2 Normative references
...................................................................................................................................................................................... 1
..................................................................................................................................................................................... 1
4 Test conditions
....................................................................................................................................................................................................... 1
5 Test location
.............................................................................................................................................................................................................. 2
6 Test instrumentation
....................................................................................................................................................................................... 4
6.1 Field generating device .................................................................................................................................................................... 4
6.2 Field probes ............................................................................................................................................................................................... 5
6.3 Stimulation and monitoring of the device under test (DUT) .......................................................................... 5
7 Test set-up
................................................................................................................................................................................................................... 5
7.1 Vehicle placement ................................................................................................................................................................................. 6
7.2 Field generating device location (relative to vehicle and shielded enclosure) ............................... 6
7.2.1 Antenna constraints ...................................................................................................................................................... 6
7.2.2 TLS constraints .................................................................................................................................................................. 6
............................................................................................................................................................ 6
7.3.1 Vehicle not connected to the power grid .................................................................................................... 6
7.3.2 Vehicle in charging mode connected to the power grid ................................................................. 7
7.3.3 Vehicle in charging mode through wireless power transmission (WPT) .................... 15
8 Test procedure
.....................................................................................................................................................................................................17
8.1 Test plan ..................................................................................................................................................................................................... 18
8.2 Test method ............................................................................................................................................................................................ 18
8.2.1 Field calibration .............................................................................................................................................................18
8.3 Test report ................................................................................................................................................................................................ 24
Annex A (informative)
.................................................................................25
© ISO 2015 – All rights reserved iii
Contents Page
ISO 11451-2:2015(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
on the ISO list of patent declarations received (see www.iso.org/patents).
constitute an endorsement.
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL:
The committee responsible for this document is ISO/TC 22, Road vehicles, Subcommittee SC 32, Electrical
and electronic components and general system aspects.
Annex A
revised.
ISO 11451 consists of the following parts, under the general title Road vehicles — Vehicle test methods for
electrical disturbances from narrowband radiated electromagnetic energy:
— Part 1: General principles and terminology
— Part 2: Off-vehicle radiation sources
— Part 3: On-board transmitter simulation
— Part 4: Bulk current injection (BCI)
iv © ISO 2015 – All rights reserved
Road vehicles — Vehicle test methods for electrical
disturbances from narrowband radiated electromagnetic
energy —
Part 2:
Off-vehicle radiation sources
1 Scope
vehicles to electrical disturbances from off-vehicle radiation sources, regardless of the vehicle propulsion
procedure.
an off-vehicle radiation source are given in Annex A.
2 Normative references
ISO 11451-1, Road vehicles — Vehicle test methods for electrical disturbances from narrowband radiated
electromagnetic energy — Part 1: General principles and terminology
4 Test conditions
levels are given in Annex A of this International Standard.
Standard test conditions are given in ISO 11451-1 for the following:
— test temperature;
INTERNATIONAL STANDARD ISO 11451-2:2015(E)
© ISO 2015 – All rights reserved 1
