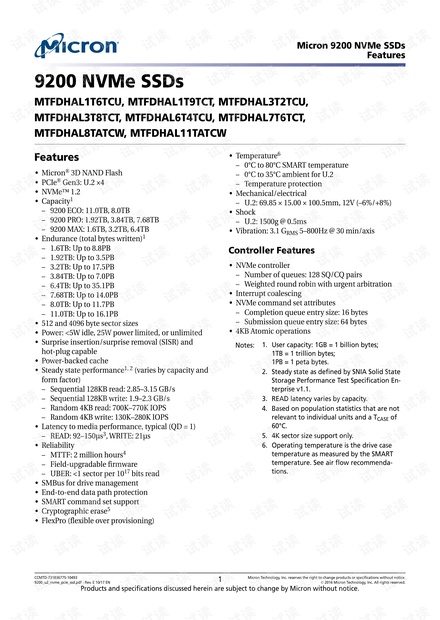

9200 NVMe SSDs
MTFDHAL1T6TCU, MTFDHAL1T9TCT, MTFDHAL3T2TCU,
MTFDHAL3T8TCT, MTFDHAL6T4TCU, MTFDHAL7T6TCT,
MTFDHAL8TATCW, MTFDHAL11TATCW
Features
• Micron
®
3D NAND Flash
• PCIe
®
Gen3: U.2 ×4
•
NVMe™ 1.2
• Capacity
1
– 9200 ECO: 11.0TB, 8.0TB
– 9200 PRO: 1.92TB, 3.84TB, 7.68TB
– 9200 MAX: 1.6TB, 3.2TB, 6.4TB
• Endurance (total bytes written)
1
– 1.6TB: Up to 8.8PB
– 1.92TB: Up to 3.5PB
– 3.2TB: Up to 17.5PB
– 3.84TB: Up to 7.0PB
– 6.4TB: Up to 35.1PB
– 7.68TB: Up to 14.0PB
– 8.0TB: Up to 11.7PB
– 11.0TB: Up to 16.1PB
• 512 and 4096 byte sector sizes
• Power: <5W idle, 25W power limited, or unlimited
• Surprise insertion/surprise removal (SISR) and
hot-plug capable
• Power-backed cache
• Steady state performance
1, 2
(varies by capacity and
form factor)
– Sequential 128KB read: 2.85–3.15 GB/s
– Sequential 128KB write: 1.9–2.3 GB/s
– Random 4KB read: 700K–770K IOPS
– Random 4KB write: 130K–280K IOPS
• Latency to media performance, typical (QD = 1)
– READ: 92–150µs
3
, WRITE: 21µs
• Reliability
– MTTF: 2 million hours
4
– Field-upgradable firmware
– UBER: <1 sector per 10
17
bits read
• SMBus for drive management
• End-to-end data path protection
• SMART command set support
• Cryptographic erase
5
• FlexPro (flexible over provisioning)
• Temperature
6
– 0°C to 80°C SMART temperature
– 0°C to 35°C ambient for U.2
– Temperature protection
• Mechanical/electrical
– U.2: 69.85 × 15.00 × 100.5mm, 12V (–6%/+8%)
• Shock
– U.2: 1500g @ 0.5ms
• Vibration: 3.1 G
RMS
5–800Hz @ 30 min/axis
Controller Features
• NVMe controller
– Number of queues: 128 SQ/CQ pairs
– Weighted round robin with urgent arbitration
• Interrupt coalescing
• NVMe command set attributes
– Completion queue entry size: 16 bytes
– Submission queue entry size: 64 bytes
• 4KB Atomic operations
Notes:
1. User capacity: 1GB = 1 billion bytes;
1TB = 1 trillion bytes;
1PB = 1 peta bytes.
2. Steady state as defined by SNIA Solid State
Storage Performance Test Specification En-
terprise v1.1.
3. READ latency varies by capacity.
4. Based on population statistics that are not
relevant to individual units and a T
CASE
of
60°C.
5. 4K sector size support only.
6. Operating temperature is the drive case
temperature as measured by the SMART
temperature. See air flow recommenda-
tions.
Micron 9200 NVMe SSDs
Features
CCMTD-731836775-10493
9200_u2_nvme_pcie_ssd.pdf - Rev. E 10/17 EN
1
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2016 Micron Technology, Inc. All rights reserved.
Products and specifications discussed herein are subject to change by Micron without notice.
Native Drivers
• Microsoft Windows Server
®
2016
• Red Hat
®
Enterprise Linux (RHEL) 6.5+
• CentOS
®
6.5+
• SUSE
®
Linux Enterprise Server 11 SP4, 12+
• Ubuntu
®
12.04.03+, 14.04+
• VMware
®
5.5, 6.0+
Custom Drivers
• Microsoft Windows Server 2012 R2, Hyper-V (rec-
ommended)
• RHEL 6.1-6.4
• CentOS 6.1-6.4
• SUSE Linux Enterprise Server 11 SP1-SP3
Part Numbering Information
The Micron
®
9200 SSD is available in different configurations and capacities. Visit www.micron.com for a list of
valid part numbers.
Figure 1: Part Number Chart
FD H 1T6 T
Micron Technology
Product Family
FD = Flash drive
Drive Interface
H = PCIe Gen3
Drive Form Factor
AL = 2.5-inch, 15mm
Device Capacity
1T6 = 1.6TB
1T9 = 1.92TB
3T2 = 3.2TB
3T8 = 3.84TB
6T4 = 6.4TB
7T6 = 7.68TB
8T0 = 8.0TB
11T0 = 11.0TB
NAND Flash Type
T = TLC
Flash Drive Product Family
CU = 9200 MAX
CT = 9200 PRO
CW = 9200 ECO
Production Status
Blank = Production
ES = Engineering sample
MS = Mechanical sample
Customer Designator
YY = Standard
Additional Features
AB = Standard
Extended Firmware Features
Z = Standard
8 = VPD/SMBUS on by default
Sector Size
1 = 512 Bytes
NAND Component
AR = 384Gb, TLC, x16, 1.8V (3D)
BOM Production
1 = First generation
AL CU 1 Z AB ESAR 1 YY
MT
Warranty: Contact your Micron sales representative for further information regarding the product, including prod-
uct warranties.
Micron 9200 NVMe SSDs
Features
CCMTD-731836775-10493
9200_u2_nvme_pcie_ssd.pdf - Rev. E 10/17 EN
2
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2016 Micron Technology, Inc. All rights reserved.
General Description
The Micron 9200® NVMe SSD Series is Micron's flagship performance product line.
These products utilize a Gen3 PCIe interface, the innovative Non-Volatile Memory Ex-
press protocol and Micron's own high-speed NAND to provide high throughput and
IOPS, very low latency, and consistent quality of service. The 9200 product line has Mi-
cron's FlexPro™ firmware architecture which allows you to actively tune capacity to op-
timize drive performance and endurance and is available in high capacities up to 11
TBs. Reliability assurance measures include cyclic redundancy checks (CRC), end-to-
end data path protection, capacitor-backed power loss protection and Micron's exten-
sive validation, quality and reliability testing. It features thermal monitoring and pro-
tection, SMART attributes for status polling and SMBus for out-of-band management.
The Micron 9200 has three endurance classes: the PRO for read-centric use at roughly 1
drive writes per day (DWPD); and the MAX for mixed-use workloads at about 3 DWPD;
and the ECO for less than 1 DWPD. The PRO version comes in 1.92TB, 3.84TB, and
7.68TB capacities, while the MAX is sized at 1.6TB, 3.2TB, 6.4TB, and the ECO in 8.0TB
and 11.0TB.
Logical Block Address Configuration
The number of logical block addresses (LBAs) reported by the device ensures sufficient
storage space for the specified capacity.
Table 1: LBA Count in Accordance with IDEMA LBA1-03
Capacity 512-Byte Sector LBA Count 4KB Sector LBA Count
1.6TB 3,125,627,568 390,703,446
1.92TB 3,750,748,848 468,843,606
3.2TB 6,251,233,968 781,404,246
3.84TB 7,501,476,528 937,684,566
6.4TB 12,502,446,768 1,562,805,846
7.68TB 15,002,931,888 1,875,366,486
8.0TB 15,628,053,168 1,953,506,646
11.0TB 21,488,565,168 2,686,070,646
Micron 9200 NVMe SSDs
General Description
CCMTD-731836775-10493
9200_u2_nvme_pcie_ssd.pdf - Rev. E 10/17 EN
3
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2016 Micron Technology, Inc. All rights reserved.
Performance
Table 2: Drive Performance
Specification
9200 ECO
(TB)
9200 PRO
(TB)
9200 MAX
(TB)
Unit8.0 11.0 1.92 3.84 7.68 1.6 3.2 6.4
Sequential read
(128KB I/O size)
3.15 3.15 2.85 3.15 3.15 2.85 3.15 3.15 GB/s
Sequential write
(128KB I/O size)
2.3 2.25 1.9 2.3 2.3 1.9 2.3 2.3
Random read
(4KB I/O size)
740K 770K 700K 770K 750K 700K 770K 770K IOPS
Random write
(4KB I/O size)
135K 130K 185K 170K 160K 255K 280K 270K
Mixed 70/30 read/write
(4KB I/O size)
320K 330K 325K 355K 355K 370K 445K 450K
Notes:
1. Performance specifications shown are with power limiting off. See Electrical Characteris-
tics section for more details.
2. The stated specifications are preliminary.
3. Performance is steady state as defined by SNIA Solid State Storage Performance Test
Specification Enterprise v1.1.
4. Performance may vary up to 10% over life of drive.
Table 3: Latency
Specification Queue Depth = 1 Unit
READ latency (TYP) 1.6TB–3.84TB 92 µs
READ latency (TYP) 6.4TB–8TB 101
READ latency (TYP) 11TB 105
WRITE latency (TYP) all capacities 21
Note:
1. Quality of service is measured using random 4KB workloads, QD = 1 at steady state.
Micron 9200 NVMe SSDs
Performance
CCMTD-731836775-10493
9200_u2_nvme_pcie_ssd.pdf - Rev. E 10/17 EN
4
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2016 Micron Technology, Inc. All rights reserved.
Functional Description
Mean Time to Failure
The mean time to failure (MTTF) for the device can be calculated based on the compo-
nent reliability data using the methods referenced in the Telcordia SR-322 reliability
prediction procedures for electronic equipment and measured during reliability dem-
onstration test.
Table 4: MTTF
Capacity MTTF (Operating Hours)
All 2.0 million
Endurance
SSD endurance is dependent on many factors, including: usage conditions applied to
the drive, drive performance and capacity, formatted sector size, error correction codes
(ECCs) in use, internal NAND PROGRAM/ERASE cycles, write amplification factor,
wear-leveling efficiency of the drive, over-provisioning ratio, valid user data on the
drive, drive temperature, NAND process parameters, and data retention time.
The device is designed to operate under a wide variety of conditions, while delivering
the maximum performance possible and meeting enterprise market demands.
While actual endurance varies depending on conditions, the drive lifetime can be esti-
mated based on capacity, assumed fixed-use models, ECC, and formatted sector size.
Lifetime estimates for the device are shown in the following tables in total bytes written.
Table 5: Total Bytes Written
Model Capacity (TB) Total Bytes Written (PB)
9200 ECO
8.0 11.7
11.0 16.1
9200 PRO
1.92 3.5
3.84 7.0
7.68 14.0
9200 MAX
1.6 8.8
3.2 17.5
6.4 35.1
Note:
1. Values shown are based on system modeling.
Micron 9200 NVMe SSDs
Functional Description
CCMTD-731836775-10493
9200_u2_nvme_pcie_ssd.pdf - Rev. E 10/17 EN
5
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2016 Micron Technology, Inc. All rights reserved.
