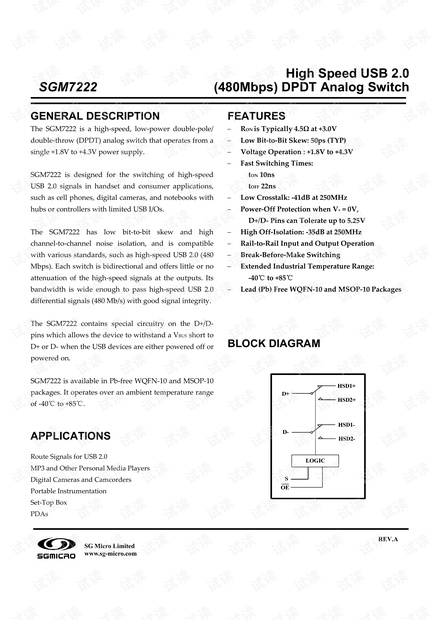

High Speed USB 2.0
SGM7222 (480Mbps) DPDT Analog Switch
GENERAL DESCRIPTION
The SGM7222 is a high-speed, low-power double-pole/
double-throw (DPDT) analog switch that operates from a
single +1.8V to +4.3V power supply.
SGM7222 is designed for the switching of high-speed
USB 2.0 signals in handset and consumer applications,
such as cell phones, digital cameras, and notebooks with
hubs or controllers with limited USB I/Os.
The SGM7222 has low bit-to-bit skew and high
channel-to-channel noise isolation, and is compatible
with various standards, such as high-speed USB 2.0 (480
Mbps). Each switch is bidirectional and offers little or no
attenuation of the high-speed signals at the outputs. Its
bandwidth is wide enough to pass high-speed USB 2.0
differential signals (480 Mb/s) with good signal integrity.
The SGM7222 contains special circuitry on the D+/D-
pins which allows the device to withstand a V
BUS short to
D+ or D- when the USB devices are either powered off or
powered on.
SGM7222 is available in Pb-free WQFN-10 and MSOP-10
packages. It operates over an ambient temperature range
of -40℃ to +85℃.
APPLICATIONS
Route Signals for USB 2.0
MP3 and Other Personal Media Players
Digital Cameras and Camcorders
Portable Instrumentation
Set-Top Box
PDAs
FEATURES
− RON is Typically 4.5Ω at +3.0V
− Low Bit-to-Bit Skew: 50ps (TYP)
− Voltage Operation : +1.8V to +4.3V
− Fast Switching Times:
t
ON 10ns
t
OFF 22ns
− Low Crosstalk: -41dB at 250MHz
− Power-Off Protection when V
+ = 0V,
D+/D- Pins can Tolerate up to 5.25V
− High Off-Isolation: -35dB at 250MHz
− Rail-to-Rail Input and Output Operation
− Break-Before-Make Switching
− Extended Industrial Temperature Range:
-40℃ to +85℃
− Lead (Pb) Free WQFN-10 and MSOP-10 Packages
BLOCK DIAGRAM
REV.A
SG Micro Limited
www.sg-micro.com

SGM7222
2

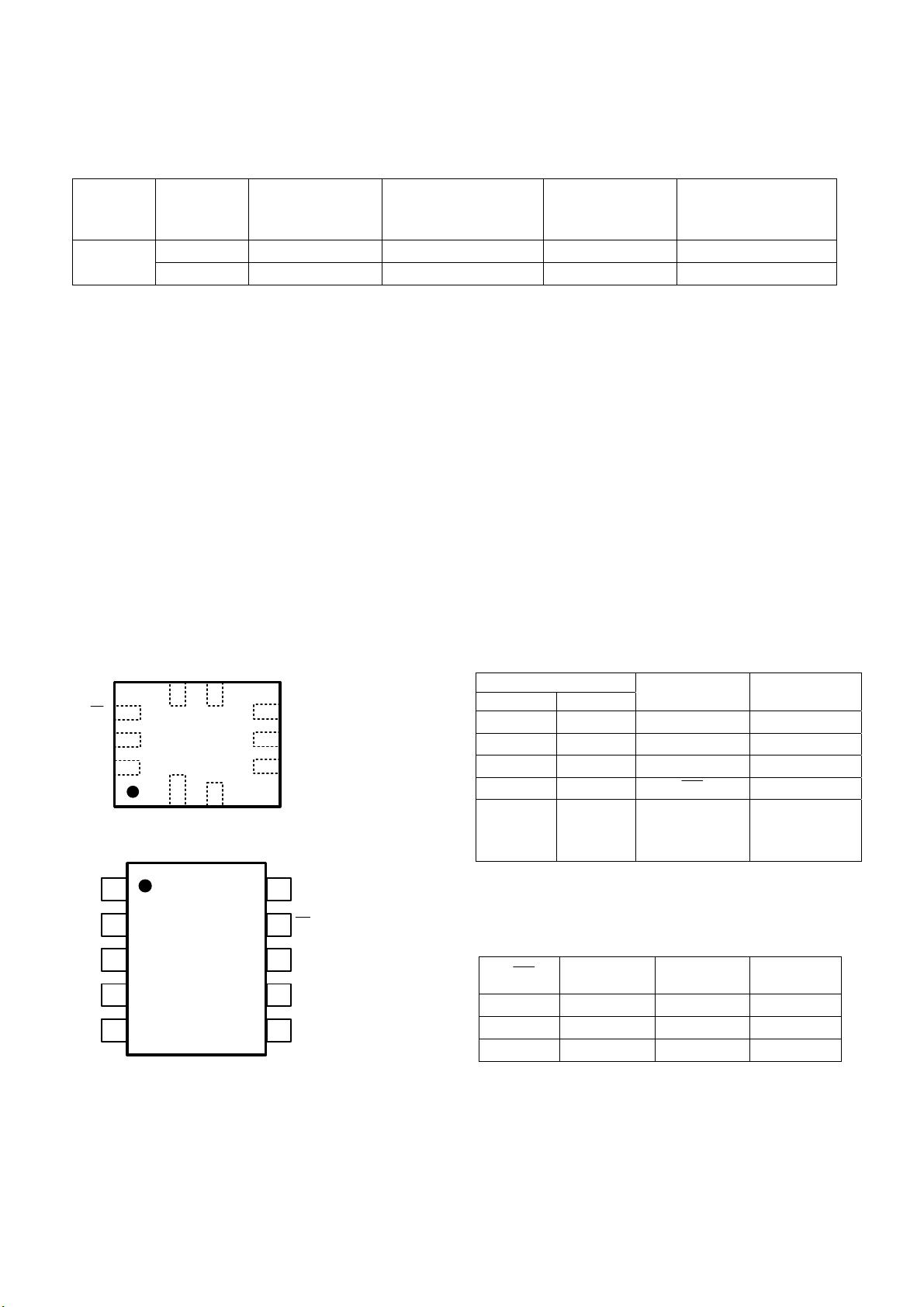

ORDERING INFORMATION
MODEL
PIN-
PACKAGE
SPECIFIED
TEMPERATURE
RANGE
ORDERING
NUMBER
PACKAGE
MARKING
PACKAGE
OPTION
MSOP-10 -40℃ to +85℃ SGM7222YMS10/TR SGM7222YMS10 Tape and Reel, 3000
SGM7222
WQFN-10 -40℃ to +85℃ SGM7222YWQ10/TR 7222 Tape and Reel, 3000
ABSOLUTE MAXIMUM RATINGS
V+, IN to GND........................................................... 0V to +4.6V
Analog, Digital voltage range .....................-0.3V to (V
+ +0.3V)
Continuous Current HSDn or Dn……........................±100mA
Peak Current HSDn or Dn……....................................±150mA
Operating Temperature Range...........................-40℃ to +85℃
Junction Temperature..................................................... +150℃
Storage Temperature..........................................-65℃ to +150℃
Lead Temperature (soldering, 10s).................................+260℃
ESD Susceptibility
HBM......................................................................................4000V
MM..........................................................................................400V
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress
ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational
sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect
device reliability.
PIN CONFIGURATIONS (TOP VIEW)
WQFN-10
HSD2
+
HSD1
+
1
2
5
4
3
6
7
8
9
10
D
+
GND
D-
HSD2-HSD1-
OE
V
+
S
D-
OE
1
2
3
4
5
6
7
8
9
10
HSD1+
D+
HSD1-
V
+
HSD2+
GND
S
HSD2-
MSOP-10
PIN DESCRIPTION
PIN
WQFN-10 MSOP-10
NAME FUNCTION
9 10 V+
Power Supply
4 5 GND
Ground
10 1 S
Select Input
8 9
OE
Output Enable
1,2,
7,6,
3,5
2,3,
8,7,
4,6
HSD1
+, HSD2+,
HSD1
-, HSD2-,
D
+, D-
Data Ports
FUNCTION TABLE
OE
S
HSD1+
HSD1-
HSD2+
HSD2-
0 0 ON OFF
0 1 OFF ON
1 × OFF OFF
Switches Shown For Logic “0” Input

SGM7222
3
ELECTRICAL CHARACTERISTICS
(V+ = +1.8V to +4.3V, GND = 0V, VIH = +1.6V, VIL = +0.5V, TA = -40℃ to + 85℃. Typical values are at V+ = +3.3V, TA = +25℃, unless
otherwise noted.)
PARAMETER SYMBOL CONDITIONS TEMP MIN TPY MAX UNITS
ANALOG SWITCH
Analog I/O Voltage
(HSD1
+, HSD1-, HSD2+, HSD2-)
V
IS -40℃ to +85℃ 0 V+ V
+25℃ 4.5 8.5
On-Resistance RON
V
+ = 3.0V, VIS = 0V to 0.4V, ID = 8mA,
Test Circuit 1
-40℃ to +85℃ 9
Ω
+25℃ 0.15 0.6
On-Resistance Match Between
Channels
∆R
ON
V
+ = 3.0V, VIS = 0V to 0.4V, ID = 8mA,
Test Circuit 1
-40℃ to +85℃ 1.6
Ω
+25℃ 1.5 2.0
On-Resistance Flatness RFLAT(ON)
V
+ = 3.0V, VIS = 0V to 1.0V, ID = 8mA,
Test Circuit 1
-40℃ to +85℃ 2.6
Ω
Power Off Leakage Current
(D
+, D-)
I
OFF
V
+ = 0V, VD = 0V to 3.6 V,
V
S , V
OE
= 0V or 3.6 V
-40℃ to +85℃ 1 µA
Increase in I+ per Control
Voltage
I
CCT
V
+=3.6V, VS or V
OE
=2.6 V
-40℃ to +85℃ 5 µA
Source Off Leakage Current IHSD2(OFF),IHSD1(OFF)
V
+=3.6V, VIS = 3.3V/ 0.3V,
V
D= 0.3V/ 3.3V
-40℃ to +85℃ 1 µA
Channel On Leakage Current IHSD2(ON), IHSD1(ON)
V
+=3.6V, VIS = 3.3V/ 0.3V,
V
D= 3.3V/ 0.3V or floating
-40℃ to +85℃ 1 µA
DIGITAL INPUTS
Input High Voltage VIH -40℃ to +85℃ 1.6 V
Input Low Voltage VIL -40℃ to +85℃ 0.5 V
Input Leakage Current IIN
V
+ = 3.0V, VS , V
OE
= 0V or V+
-40℃ to +85℃ 1 µA
DYNAMIC CHARACTERISTICS
Turn-On Time tON +25℃ 10 ns
Turn-Off Time tOFF
V
IS = 0.8V, RL = 50Ω, CL = 10pF,
Test Circuit 2
+25℃ 22 ns
Break-Before-Make Time Delay tD
V
IS = 0.8V, RL = 50Ω, CL = 10pF,
Test Circuit 3
+25℃ 4 ns
Propagation Delay tPD RL = 50Ω, CL = 10pF +25℃ 0.3 ns
Off Isolation OISO
Signal = 0dBm, R
L = 50Ω,
f = 250MHz, Test Circuit 4
+25℃ -35 dB
Channel-to-Channel Crosstalk XTALK
Signal = 0dBm, R
L = 50Ω,
f = 250MHz, Test Circuit 5
+25℃ -41 dB
–3dB Bandwidth BW
Signal = 0dBm, R
L = 50Ω, CL = 5pF
Test Circuit 6
+25℃ 550 MHz
Channel-to-Channel Skew tSKEW RL = 50Ω, CL = 10pF +25℃ 0.05 ns
Charge Injection Select Input to
Common I/O
Q
VG = GND, CL = 1.0nF, RG = 0Ω,
Q = C
L x VOUT, Test Circuit 7
+25℃ 11 pC
HSD+, HSD-, D+, D-
ON Capacitance
C
ON +25℃ 6.5 pF
POWER REQUIREMENTS
Power Supply Range V+ -40℃ to +85℃ 1.8 4.3 V
Power Supply Current I+
V
+ = 3.0V, VS , V
OE
= 0V or V+
-40℃ to +85℃ 1 µA
Specifications subject to changes without notice.
