Proprietary and Confidential Information of Siano

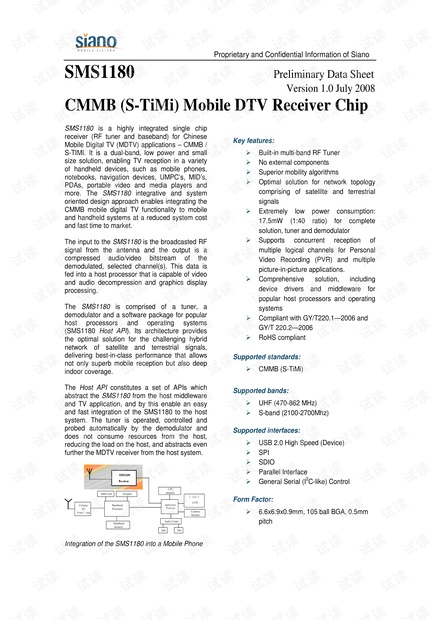

SMS1180

Preliminary Data Sheet

Version 1.0 July 2008

CMMB (S-TiMi) Mobile DTV Receiver Chip

SMS1180 is a highly integrated single chip

receiver (RF tuner and baseband) for Chinese

Mobile Digital TV (MDTV) applications – CMMB /

S-TIMI. It is a dual-band, low power and small

size solution, enabling TV reception in a variety

of handheld devices, such as mobile phones,

notebooks, navigation devices, UMPC’s, MID’s,

PDAs, portable video and media players and

more. The SMS1180 integrative and system

oriented design approach enables integrating the

CMMB mobile digital TV functionality to mobile

and handheld systems at a reduced system cost

and fast time to market.

The input to the SMS1180 is the broadcasted RF

signal from the antenna and the output is a

compressed audio/video bitstream of the

demodulated, selected channel(s). This data is

fed into a host processor that is capable of video

and audio decompression and graphics display

processing.

The SMS1180 is comprised of a tuner, a

demodulator and a software package for popular

host processors and operating systems

(SMS1180 Host API). Its architecture provides

the optimal solution for the challenging hybrid

network of satellite and terrestrial signals,

delivering best-in-class performance that allows

not only superb mobile reception but also deep

indoor coverage.

The Host API constitutes a set of APIs which

abstract the SMS1180 from the host middleware

and TV application, and by this enable an easy

and fast integration of the SMS1180 to the host

system. The tuner is operated, controlled and

probed automatically by the demodulator and

does not consume resources from the host,

reducing the load on the host, and abstracts even

further the MDTV receiver from the host system.

Integration of the SMS1180 into a Mobile Phone

Key features:

 Built-in multi-band RF Tuner

 No external components

 Superior mobility algorithms

 Optimal solution for network topology

comprising of satellite and terrestrial

signals

 Extremely low power consumption:

17.5mW (1:40 ratio) for complete

solution, tuner and demodulator

 Supports concurrent reception of

multiple logical channels for Personal

Video Recording (PVR) and multiple

picture-in-picture applications.

 Comprehensive solution, including

device drivers and middleware for

popular host processors and operating

systems

 Compliant with GY/T220.1—2006 and

GY/T 220.2—2006

 RoHS compliant

Supported standards:

 CMMB (S-TiMi)

Supported bands:

 UHF (470-862 MHz)

 S-band (2100-2700Mhz)

Supported interfaces:

 USB 2.0 High Speed (Device)

 SPI

 SDIO

 Parallel Interface

 General Serial (I

C-like) Control

Form Factor:

 6.6x6.9x0.9mm, 105 ball BGA, 0.5mm

pitch

Proprietary and Confidential Information of Siano

Disclaimer

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH SIANO MOBILE SILICON’S

PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY

INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN

SIANO’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, SIANO ASSUMES NO LIABILITY

WHATSOEVER, AND SIANO DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE

AND/OR USE OF SIANO PRODUCTS INCLUDING LIABILITY OR WARRANTIES

RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF

ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

Siano products are not intended for use in medical, life saving, life sustaining applications.

Siano may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked "reserved" or

"undefined. Siano reserves these for future definition and shall have no responsibility whatsoever for conflicts or

incompatibilities arising from future changes to them. The SMS118O chip may contain design defects or errors known

as errata which may cause the product to deviate from published specifications. Current characterized errata are

available on request.

This document and the software described in it are furnished under license and may only be used or copied in

accordance with the terms of the license. The information in this document is furnished for informational use only, is

subject to change without notice, and should not be construed as a commitment by Siano. Siano assumes no

responsibility or liability for any errors or inaccuracies that may appear in this document or any software that may be

provided in association with this document. Except as permitted by such license, no part of this document may be

reproduced, stored in a retrieval system, or transmitted in any form or by any means without the express written

consent of Siano..

Contact your local Siano sales office or your distributor to obtain the latest specifications and before placing your

product order.

Copies of documents which have an ordering number and are referenced in this document, or other Siano literature may

be obtained by emailing support@siano-ms.com or by visiting Siano’s website at http://www.siano-ms.com

Proprietary and Confidential Information of Siano

ABLE OF

ONTENTS

INTRODUCTION ......................................................................................................................... 7

BOUT THIS

OCUMENT

............................................................................................................... 7

URTHER

EADING AND

ELATED

OCUMENTS

........................................................................ 7

SMS1180 INTRODUCTION ................................................................................................. 8

1.1

EY FEATURES

...................................................................................................................... 9

1.2

LOCK

IAGRAM

.................................................................................................................. 9

1.3

AIN

EATURES OF

UNER

............................................................................................... 11

1.3.1

UAL BAND SUPPORT

........................................................................................................ 11

1.3.2

ULLY INTEGRATED SOLUTION

......................................................................................... 11

1.3.3

OBUST

LOCKING SYSTEM

............................................................................................. 11

1.3.4

OBUST POWER SUPPLY CIRCUITRY

.................................................................................. 11

1.3.5

GSP

CONTROLLED

............................................................................................................. 11

1.4

AIN

EATURES OF

EMODULATOR

............................................................................... 11

1.4.1

CMMB

(S-T

)

SUPPORT

................................................................................................ 11

1.4.2

ULTIPLE

NTERFACES SUPPORT

...................................................................................... 12

1.4.3

PWM ................................................................................................................................. 12

1.5

EATURES OF

SMS1180

OST

API ................................................................................... 12

1.6

YSTEM

ATA

LOW

.......................................................................................................... 13

POWERING THE SMS1180 ............................................................................................... 14

2.1

COPE

.................................................................................................................................. 14

2.2

SMS1180

SUPPLIES

............................................................................................................. 14

2.2.1

UNER SUPPLIES

................................................................................................................ 14

2.3

EMODULATOR SUPPLIES

.................................................................................................. 14

CLOCKING THE SMS1180 CHIP..................................................................................... 15

3.1

COPE

.................................................................................................................................. 15

3.2

HASE NOISE

....................................................................................................................... 15

3.3

EQUIREMENTS

.................................................................................................................. 16

3.3.1

HASE NOISE REQUIREMENT OF THE SOURCE

................................................................... 16

3.3.2

RYSTAL ADDITIONAL REQUIREMENTS

............................................................................ 17

SMS1180 INTERFACE MODES ........................................................................................ 18

4.1

COPE

.................................................................................................................................. 18

4.2

NTERFACING THE

SMS1180 ............................................................................................. 18

4.3

ELECTING THE

NTERFACE

ODE

.................................................................................. 20

4.4

USB

MODE

........................................................................................................................... 22

Proprietary and Confidential Information of Siano

4.5

GSP

ONTROL AND

TATUS

XCHANGE

.......................................................................... 23

4.6

SPI

MODE

............................................................................................................................ 23

4.7

SDIO

MODE

......................................................................................................................... 25

4.8

PWM ................................................................................................................................... 27

RF FRONT END................................................................................................................... 28

5.1

COPE

.................................................................................................................................. 28

5.2

NTENNA

............................................................................................................................. 29

5.2.1

UHF

ANTENNA SPECIFICATION

......................................................................................... 29

5.2.2

S-

BAND ANTENNA SPECIFICATION

.................................................................................... 29

5.3

ILTER

......................................................................................................................... 30

5.3.1

UHF

ILTER SPECIFICATION

GSM

PPLICATION

..................................................... 30

5.3.2

UHF

ILTER SPECIFICATION IN

GSM

PPLICATION

......................................................... 30

5.3.3

S-B

AND

ILTER SPECIFICATION

........................................................................................ 30

5.4

ALUN

......................................................................................................................... 31

5.5

ECOMMENDED

FRONT END PARTS

............................................................................ 31

SMS1180 BOOT SEQUENCE............................................................................................. 32

6.1

COPE

.................................................................................................................................. 32

6.2

OOT PHASES

...................................................................................................................... 32

6.2.1

OWER UP

.......................................................................................................................... 32

6.2.2

ESET

................................................................................................................................ 32

6.2.3

AND CLOCKS INITIALIZATION

...................................................................................... 33

6.2.4

ODE DOWNLOAD

............................................................................................................. 34

6.2.5

EEPROM .......................................................................................................................... 34

6.2.6

USB................................................................................................................................... 34

6.2.7

GSP ................................................................................................................................... 34

6.2.8

SPI..................................................................................................................................... 35

6.2.9

SDIO ................................................................................................................................. 35

6.2.10

ARALLEL

NTERFACE

............................................................................................. 35

SMS1180 “POWER MODES”............................................................................................. 36

7.1

COPE

.................................................................................................................................. 36

7.2

“P

OWER

ODES

” ............................................................................................................... 36

SMS1180 INTERFACES DRIVERS................................................................................... 37

8.1

COPE

.................................................................................................................................. 37

8.2

RCHITECTURE

........................................................................................................... 37

8.3

USB

RIVER

........................................................................................................................ 38

DC CHARACTERISTICS ................................................................................................... 39

Proprietary and Confidential Information of Siano

9.1

BSOLUTE MAXIMUM RATINGS

......................................................................................... 39

9.2

PERATION TEMPERATURE

............................................................................................... 39

AC CHARACTERISTICS ................................................................................................... 40

10.1

TEST CONDITIONS

....................................................................................................... 40

10.2

ESET TIMING

................................................................................................................... 40

10.3

SSP

YNCHRONOUS

ERIAL

ORT

)

INTERFACE TIMING

.............................................. 41

10.3.1

SSP

ASTER

............................................................................................................... 41

10.3.2

SSP

LAVE

.................................................................................................................. 43

10.3.3

MOTOROLA

SPI

ASTER

............................................................................................. 45

10.3.4

MOTOROLA

SPI

LAVE

................................................................................................ 47

10.4

SDIO

INTERFACE TIMING

................................................................................................ 49

10.5

USB

INTERFACE TIMING

.................................................................................................. 50

SMS1180 PACKAGE INFORMATION............................................................................. 52

11.1

ACKAGE

ATA

................................................................................................................ 52

11.2

ACKAGE

IEW

........................................................................................................ 52

11.3

ALL ASSIGNMENT

–

OTTOM VIEW

............................................................................... 54

11.4

ALL ASSIGNMENT

–

OP VIEW

....................................................................................... 55

11.4.1

OUT

ESCRIPTION

.................................................................................................... 56

ORDERING INFORMATION............................................................................................ 61

12.1

TORAGE

........................................................................................................................... 61

12.2

HS................................................................................................................................. 61

GLOSSARY................................................................................................................................. 62

剩余61页未读，继续阅读

sunsunsun000888

2014-02-14

看那看考价值的，比较难找

jason_ye

粉丝: 79
资源: 30

会员权益专享

评论5

会员权益专享

最新资源

SMS1180_DataSheet

评论5

优化这段代码 if list_send_time == send_time: if sms_list_meta['status'] == "已完成": log.info("Sms Task Send Successfully") elif sms_list_meta['status'] == "发送中": log.info("Sms Task is Sending") elif sms_list_meta["status"] == "待发送": log.info("Sms Task TOBE Send")

send_sms_twilio

select if ( mod(char_length( msgstr)+12,70) = 0, div(char_length( msgstr)+12,70), div(char_length( msgstr)+12,70)+1 ) from ngp_sms_north_interface where month(reqtime) =11

写一个学生管理系统程序

写出学生管理系统的Python代码

数据结构建立一个简单的学生信息管理系统

建立一个简单的学生信息管理系统

单链表实现数学生管理系统 python

Android中监听短信的两种方法

发送短信验证码的方法代码

sms activate接码网站

有一个获取手机验证码的业务，当我们五分钟类获取短信验证码的次数超过了2次，就把对应的手机号放入黑名单，java代码如何操作redis实现

做一个学生管理系统的代码

使用sms-activate接收openai 的验证码

请帮我写个类，用python实现，发送短信到手机号

帮我用代码写一个学生管理系统

用python实现学生信息管理系统具备学生信息的查找、修改、增加和删除功能，并进行测试

会员权益专享

最新资源
