Dedicated Pin 100-Pin TQFP 100-Pin FBGA 100-Pin MBGA
IO/GCLK0 12
E2 F2
IO/GCLK1 14 E1 E1
IO/GCLK2 62 F8 F10
IO/GCLK3 64 E10 G11
IO/DEV_OE 43 J7 L8
IO/DEV_CLRn 44 K9 K8
TDI 23 H2 J2
TMS 22 J1 J1
TCK 24 H3 K1
TDO 25 J2 K2
GNDINT 11, 65
F5, E6 G4, E8
GNDIO 10, 32, 46, 60,
79, 93
E5, G5, G7, F6,
D7, D5
E4, H5, H7, G8, D7,
D5
VCCINT (1)
13, 63
F4, E7 G3, E9
VCCIO1 (2)
9, 31, 45
E4, G4, G6 E3, J4, J8
VCCIO2 (2)
59, 80, 94
F7, D6, D4 G9, C8, C4
No Connect (N.C.) -
--
Total User I/O Pins 80
80 80
Notes:
1. For EPM240 devices, all VCCINT pins must be connected to either 3.3 V or 2.5 V, but not a combination of both.
For EPM240G devices, all VCCINT pins must be connected to 1.8 V.
2. Each set of VCCIO pins (VCCIO1 or VCCIO2) can be connected to 3.3 V, 2.5 V, 1.8 V, or 1.5 V.

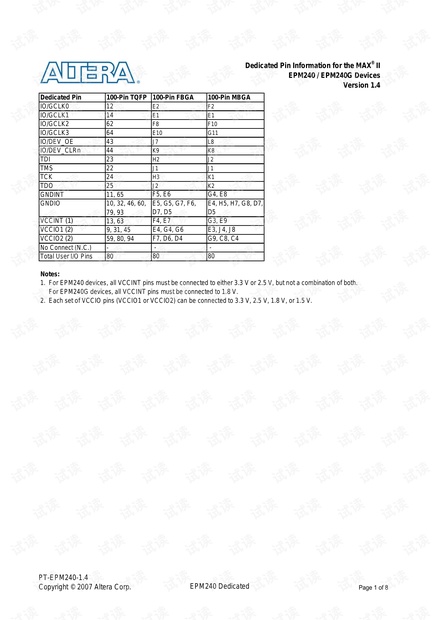

Dedicated Pin Information for the MAX
®
II
EPM240 / EPM240G Devices
V
ersion 1.4
PT-EPM240-1.4
Copyright © 2007 Altera Corp.
EPM240 Dedicated
Page 1 of 8
