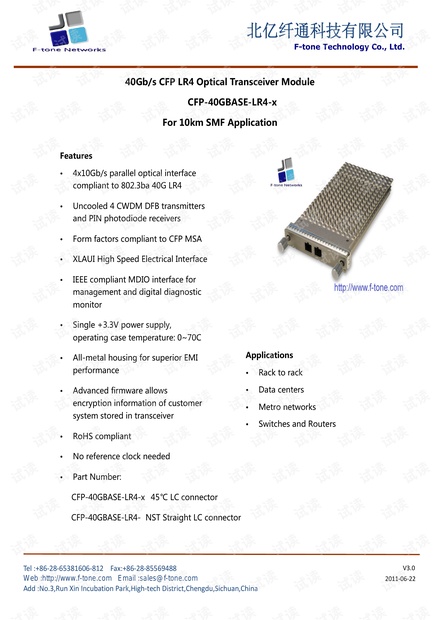

Features
4x10Gb/s parallel optical interface
compliant to 802.3ba 40G LR4
Uncooled 4 CWDM DFB transmitters
and PIN photodiode receivers
Form factors compliant to CFP MSA
XLAUI High Speed Electrical Interface
IEEE compliant MDIO interface for
management and digital diagnostic
monitor
Single +3.3V power supply,
operating case temperature: 0~70C
All-metal housing for superior EMI
performance
Advanced firmware allows
encryption information of customer
system stored in transceiver
RoHS compliant
No reference clock needed
Part Number:
CFP-40GBASE-LR4-x 45℃ LC connector
CFP-40GBASE-LR4- NST Straight LC connector
Applications
Rack to rack
Data centers
Metro networks
Switches and Routers

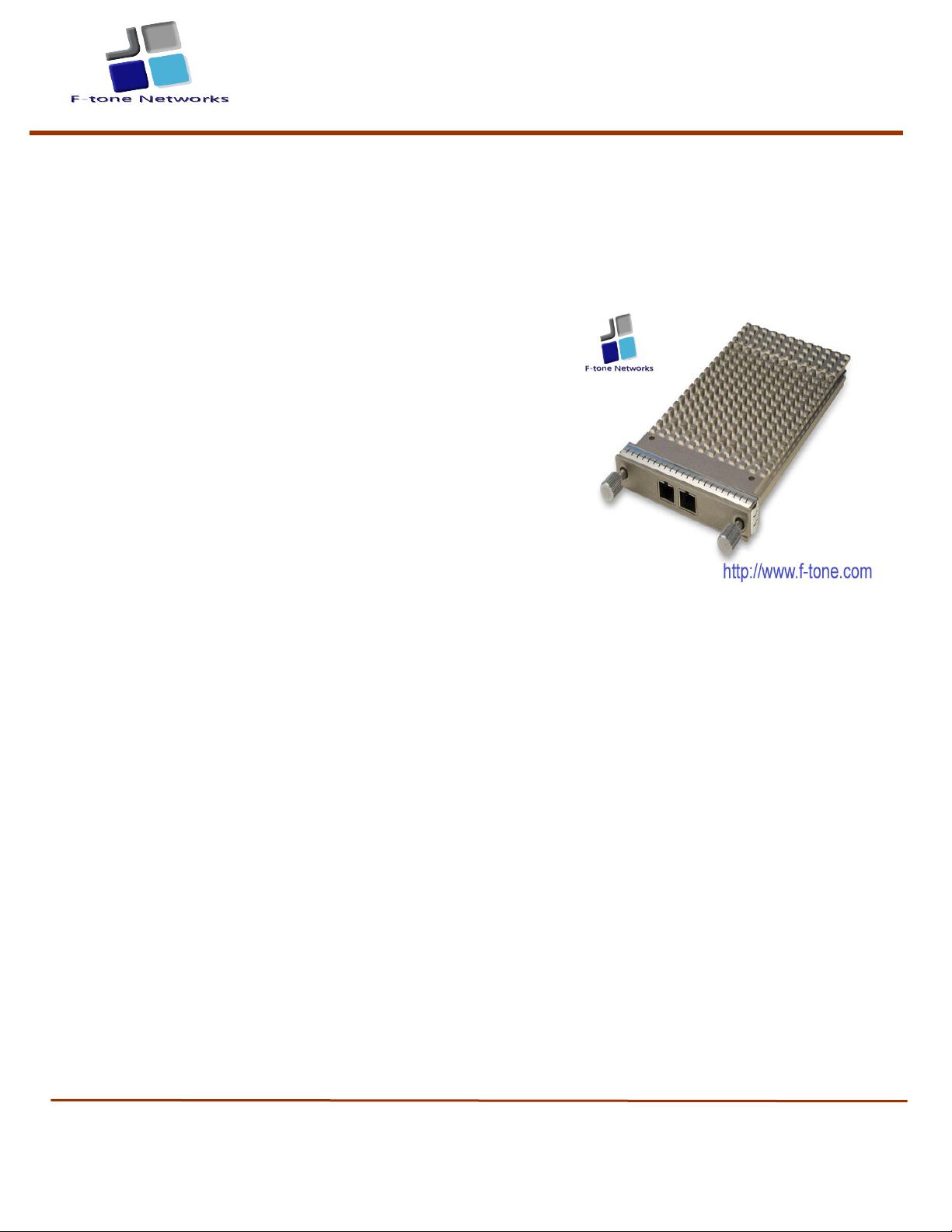

40Gb/s CFP LR4 Optical Transceiver Module
CFP-40GBASE-LR4-x
For 10km SMF Application
北亿纤通科技有限公司
F-tone Technology Co., Ltd.
Tel :+86
-
28
-
65381606
-
812 Fax:+86
-
28
-
85569488
Add :No.3,Run Xin Incubation Park,High-tech District,Chengdu,Sichuan,China
V3.0
2011-06-22
Web :http://www.f-tone.com Email :sales@f-tone.com

1. General Description
CFP-40GBASE-LR4-x is a 40Gb/s transceiver module for optical communication
applications compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module
converts 4 inputs channels of 10Gb/s electrical data to 4 CWDM optical signals and
then multiplexes them into a single channel for 40Gb/s optical transmission.
Reversely on the receiver side, the module de-multiplexes a 40Gb/s optical input into
4 CWDM channels of optical signals and then converts them to electrical data for 4
output channels.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm
as members of the CWDM wavelength grid defined in ITU-T G694.2. For SMF
applications, the transceiver module has an operating range of 2m~10km.
CFP-40GBASE-LR4-xis designed with form factor, optical/electrical connection and
MDIO interface according to the CFP Multi-Source Agreement (MSA). The innovative
design has all the fibers inside the CFP package configured without any splicing or
non-permanent connector. Also, fiber routines are neatly organized and fixed inside a
stainless steel container. For mechanical and environmental reliability, the WDM
sections are aligned and secured to the container by laser welder, and then aligned
and affixed with each CWDM laser or PIN/TIA TO to form an integrated structure of
TOSA or ROSA.
2. Functional Description
CFP-40GBASE-LR4-x contains a duplex LC connector for the optical interface and a
148-pin connector for the electrical interface. The chart in section 3 shows the
functional block diagram of the CFP-40GBASE-LR4-x CFP Transceiver.
Transmitter Operation
The transceiver module receives 4 channels of 10 GB/s electrical data, which are
processed by a 4 channel Clock Data Recovery (CDR) IC that reshapes and reduces
the jitter of each electrical signal. Subsequently, a DML laser driver IC converts each
channel of the 4 electrical signals to optical signal from one of the 4 CWDM lasers.
The optical output power is maintained constant by an automatic power control (APC)
circuit. All of 4 optical signals are multiplexed by CWDM filters in a daisy-chain
configuration to form a single optical output of 40 GB/s.
Receiver Operation
北亿纤通科技有限公司
F-tone Technology Co., Ltd.
Tel :+86
-
28
-
65381606
-
812 Fax:+86
-
28
-
85569488
Add :No.3,Run Xin Incubation Park,High-tech District,Chengdu,Sichuan,China
V3.0
2011-06-22
Web :http://www.f-tone.com Email :sales@f-tone.com

The receiver section de-multiplexes the optical input of 40 GB/s signal into 4 optical
signals of CWDM wavelengths. Each optical signal is converted to electrical signal by
one of 4 PIN/TIA. All of the 4 electrical signals are feed to another CDR IC that
provides limiting amplification, and reshapes and retimes each electrical signal as one
of the 4 output channels.
MDIO Interface
The CFP Module supports alarm, control and monitor functions via hardware pins and
via an MDIO bus. Upon module initialization, these functions are available. CFP MDIO
electrical interface consists of 8 wires including 2 wires of MDC and MDIO, as well as
5 Port Address wires, and the Global Alarm wire. MDC is the MDIO Clock line driven
by host and MDIO is the bidirectional data line driven by both host and module
depending upon the data directions. The CFP uses pins in the electrical connector to
instantiate the MDIO interface, listed in Table 1: MDIO Interface Pins.
Table 1: MDIO Interface Pins
Pin # Symbol Description I/O
Logic “H” “L”
41 GLB_ALRMn
Global Alarm O 3.3V LVCMOS OK Alarm
47 MDIO
Management Data Input
Output Bi-Directional Data
I/O
1.2V LVCMOS
48 MDC MDIO Clock I 1.2V LVCMOS
46 PRTADR0 MDIO port address bit 0 I 1.2V LVCMOS
per MDIO
document
45 PRTADR1 MDIO port address bit 1 I 1.2V LVCMOS
44 PRTADR2 MDIO port address bit 2 I 1.2V LVCMOS
43 PRTADR3 MDIO port address bit 3 I 1.2V LVCMOS
42 PRTADR4 MDIO port address bit 4 I 1.2V LVCMOS
北亿纤通科技有限公司
F-tone Technology Co., Ltd.
Tel :+86
-
28
-
65381606
-
812 Fax:+86
-
28
-
85569488
Add :No.3,Run Xin Incubation Park,High-tech District,Chengdu,Sichuan,China
V3.0
2011-06-22
Web :http://www.f-tone.com Email :sales@f-tone.com
