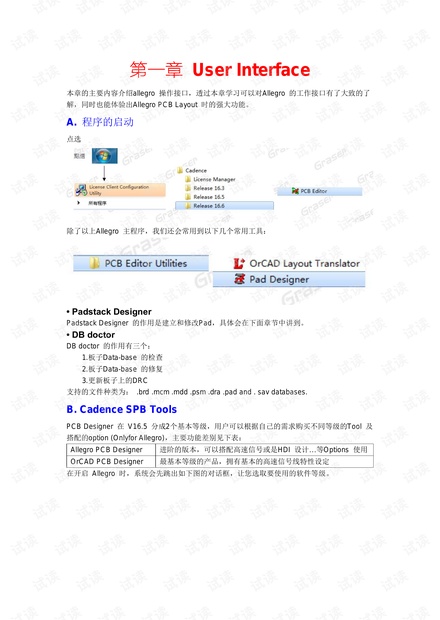

Library file that stores package/part symbols
Library file that stores drawing or board/substrate symbols
Library file that stores flash symbols
Library file that stores shape symbols
Library file that stores module definitions
Output text files that contain NC drill data
Text file, such as that used for parameters
Log file that contains data on processes
A journal file which contains a record of events -- menu picks,
keyboard activity, and
so on -- which are recorded for each session in Allegro/APD. You
can share this
data with Cadence Usability staff to help us learn how you use the
product, which
will assist us in our efforts to improve the user interface.
D. Allegro的目录结构
Allegro的文件目录可以分为三部分:安装路径、工作路径和用户环境路径。
安装路径:系统默认的安装路径为:C:\Cadence\SPB_16.6,在安装时使用者可以根据自己随
意更改安装路径。
工作路径:系统默认的工作路径为:C:\SPB_DATA,在安装时建议用户把工作路径设在非系统
上,如:D:\WORK 之类的。
环境路径:储存着用户个人设定、记忆工作更改的工作接口环境。
* Win XP 用户会在系统盘的\Documents and Settings 下产生文件夹。
E. 设定与更改工作路径
因为 Allegro 在开启文件时有一个“工作目录”,它做的所有动作都会以当前工作目录为基准,
如储存当前文件、输出产生的各类文件…,所以我们在新建文件或者打开文件时就要将Change
Directory 勾选,这样在存档或输出时才会存在正确的路径上,而且能够在下次开启程序时就能
直接开启最后编辑的文件。
