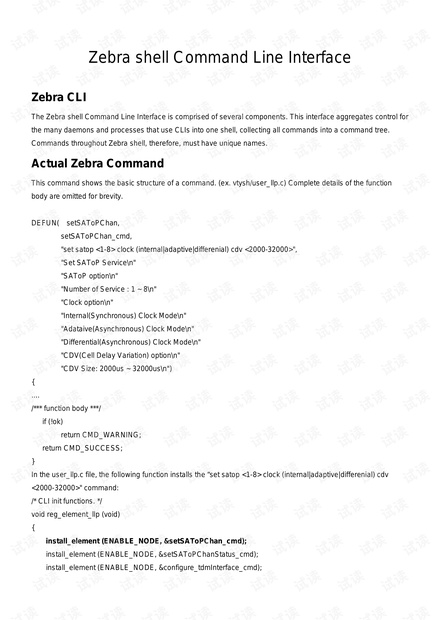

Zebra shell Command Line Interface
Zebra CLI
The Zebra shell Command Line Interface is comprised of several components. This interface aggregates control for
the many daemons and processes that use CLIs into one shell, collecting all commands into a command tree.
Commands throughout Zebra shell, therefore, must have unique names.
Actual Zebra Command
This command shows the basic structure of a command. (ex. vtysh/user_llp.c) Complete details of the function
body are omitted for brevity.
DEFUN( setSAToPChan,
setSAToPChan_cmd,
"set satop <1-8> clock (internal|adaptive|differenial) cdv <2000-32000>",
"Set SAToP Service"
"SAToP option"
"Number of Service : 1 ~ 8"
"Clock option\n"
"Internal(Synchronous) Clock Mode"
"Adataive(Asynchronous) Clock Mode"
"Differential(Asynchronous) Clock Mode"
"CDV(Cell Delay Variation) option"
"CDV Size: 2000us ~ 32000us")
{
....
/*** function body ***/
if (!ok)
return CMD_WARNING;
return CMD_SUCCESS;
}
In the user_llp.c file, the following function installs the “set satop <1-8> clock (internal|adaptive|differenial) cdv
<2000-32000>" command:
/* CLI init functions. */
void reg_element_llp (void)
{
install_element (ENABLE_NODE, &setSAToPChan_cmd);
install_element (ENABLE_NODE, &setSAToPChanStatus_cmd);
install_element (ENABLE_NODE, &configure_tdmInterface_cmd);
