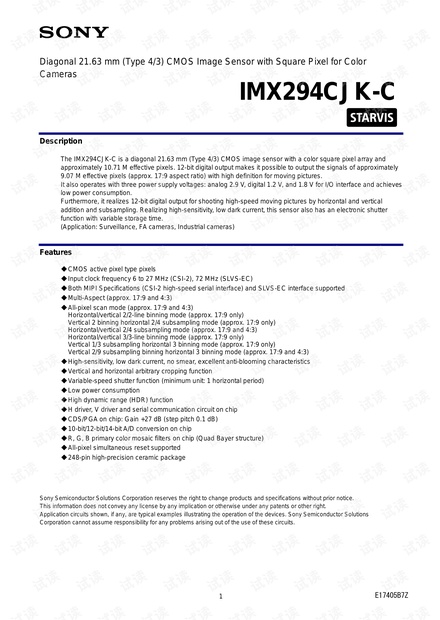

Diagonal 21.63 mm (Type 4/3) CMOS Image Sensor with Square Pixel for Color
Cameras
IMX294CJK-C
Description
The IMX294CJK-C is a diagonal 21.63 mm (Type 4/3) CMOS image sensor with a color square pixel array and
approximately 10.71 M effective pixels. 12-bit digital output makes it possible to output the signals of approximately
9.07 M effective pixels (approx. 17:9 aspect ratio) with high definition for moving pictures.
It also operates with three power supply voltages: analog 2.9 V, digital 1.2 V, and 1.8 V for I/O interface and achieves
low power consumption.
Furthermore, it realizes 12-bit digital output for shooting high-speed moving pictures by horizontal and vertical
addition and subsampling. Realizing high-sensitivity, low dark current, this sensor also has an electronic shutter
function with variable storage time.
(Application: Surveillance, FA cameras, Industrial cameras)
Features
◆ CMOS active pixel type pixels
◆ Input clock frequency 6 to 27 MHz (CSI-2), 72 MHz (SLVS-EC)
◆ Both MIPI Specifications (CSI-2 high-speed serial interface) and SLVS-EC interface supported
◆ Multi-Aspect (approx. 17:9 and 4:3)
◆ All-pixel scan mode (approx. 17:9 and 4:3)
Horizontal/vertical 2/2-line binning mode (approx. 17:9 only)
Vertical 2 binning horizontal 2/4 subsampling mode (approx. 17:9 only)
Horizontal/vertical 2/4 subsampling mode (approx. 17:9 and 4:3)
Horizontal/vertical 3/3-line binning mode (approx. 17:9 only)
Vertical 1/3 subsampling horizontal 3 binning mode (approx. 17:9 only)
Vertical 2/9 subsampling binning horizontal 3 binning mode (approx. 17:9 and 4:3)
◆ High-sensitivity, low dark current, no smear, excellent anti-blooming characteristics
◆ Vertical and horizontal arbitrary cropping function
◆ Variable-speed shutter function (minimum unit: 1 horizontal period)
◆ Low power consumption
◆ High dynamic range (HDR) function
◆ H driver, V driver and serial communication circuit on chip
◆ CDS/PGA on chip: Gain +27 dB (step pitch 0.1 dB)
◆ 10-bit/12-bit/14-bit A/D conversion on chip
◆ R, G, B primary color mosaic filters on chip (Quad Bayer structure)
◆ All-pixel simultaneous reset supported
◆ 248-pin high-precision ceramic package
Sony Semiconductor Solutions Corporation reserves the right to change products and specifications without prior notice.
This information does not convey any license by any implication or otherwise under any patents or other right.
Application circuits shown, if any, are typical examples illustrating the operation of the devices. Sony Semiconductor Solutions
Corporation cannot assume responsibility for any problems arising out of the use of these circuits.
E17405B7Z
