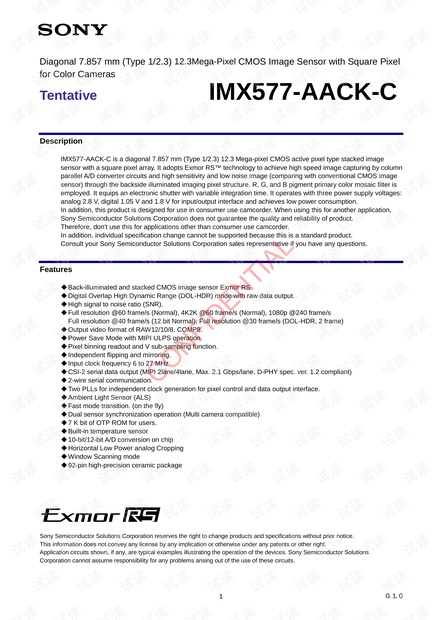

Diagonal 7.857 mm (Type 1/2.3)
12.3Mega-Pixel
CMOS Image Sensor with Square
Pixel
for Color Cameras
Tentative
IMX577-AACK-C
Description
IMX577-AACK-C is a diagonal 7.857 mm (Type 1/2.3) 12.3 Mega-pixel CMOS active pixel type stacked image
sensor with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column
parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image
sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is
employed. It equips an electronic shutter with variable integration time. It operates with three power supply voltages:
analog 2.8 V, digital 1.05 V and 1.8 V for input/output interface and achieves low power consumption.
In addition, this product is designed for use in consumer use camcorder. When using this for another application,
Sony Semiconductor Solutions Corporation does not guarantee the quality and reliability of product.
Therefore, don't use this for applications other than consumer use camcorder.
In addition, individual specification change cannot be supported because this is a standard product.
Consult your Sony Semiconductor Solutions Corporation sales representative if you have any questions.
Features
◆ Back-illuminated and stacked CMOS image sensor Exmor RS
◆ Digital Overlap High Dynamic Range (DOL-HDR) mode with raw data output.
◆ High signal to noise ratio (SNR).
◆ Full resolution @60 frame/s (Normal), 4K2K @60 frame/s (Normal), 1080p @240 frame/s
Full resolution @40 frame/s (12 bit Normal), Full resolution @30 frame/s (DOL-HDR, 2 frame)
◆ Output video format of RAW12/10/8, COMP8.
◆ Power Save Mode with MIPI ULPS operation
◆ Pixel binning readout and V sub-sampling function.
◆ Independent flipping and mirroring.
◆ Input clock frequency 6 to 27 MHz
◆ CSI-2 serial data output (MIPI 2lane/4lane, Max. 2.1 Gbps/lane, D-PHY spec. ver. 1.2 compliant)
◆ 2-wire serial communication.
◆ Two PLLs for independent clock generation for pixel control and data output interface.
◆ Ambient Light Sensor (ALS)
◆ Fast mode transition. (on the fly)
◆ Dual sensor synchronization operation (Multi camera compatible)
◆ 7 K bit of OTP ROM for users.
◆ Built-in temperature sensor
◆ 10-bit/12-bit A/D conversion on chip
◆ Horizontal Low Power analog Cropping
◆ Window Scanning mode
◆ 92-pin high-precision ceramic package
Sony Semiconductor Solutions Corporation reserves the right to change products and specifications without prior notice.
This information does not convey any license by any implication or otherwise under any patents or other right.
Application circuits shown, if any, are typical examples illustrating the operation of the devices. Sony Semiconductor Solutions
Corporation cannot assume responsibility for any problems arising out of the use of these circuits.
0.1.0
CONFIDENTIAL
IMX577-AACK-C
2
Device Structure
◆ CMOS image sensor
◆ Image size : Diagonal 7.857 mm (Type 1/2.3)
◆ Total number of pixels : 4072 (H) × 3176 (V) approx. 12.93 M pixels
◆ Number of effective pixels : 4072 (H) × 3064 (V) approx. 12.47 M pixels
◆ Number of active pixels : 4056 (H) × 3040 (V) approx. 12.33 M pixels
◆ Chip size : 7.564 mm (H) × 5.476 mm (V)
◆ Unit cell size : 1.55 µm (H) × 1.55 µm (V)
◆ Substrate material : Silicon
Optical Black Array and Readout Scan Direction
(Top View)
V
This sensor (Top view)
A1
Lens
Object
M1
M10
A10
H
Optical
Black
Array
Note) Arrows in the figure indicate scanning direction during default readout in the vertical direction and the
horizontal direction.
Figure 1 Optical Black Array and Readout Scan Direction
CONFIDENTIAL
IMX577-AACK-C
3
Absolute Maximum Ratings
Item Symbol Ratings Unit notes
Supply voltage (analog) V
ANA
-0.3 to +3.3 V
refer to
V
SS
level
Supply voltage (digital) V
DIG
-0.3 to +1.8 V
Supply voltage (interface) V
IF
-0.3 to +3.3 V
Input voltage (digital) V
I
-0.3 to +3.3 V
Output voltage (digital) V
O
-0.3 to +3.3 V
Guaranteed operating temperature T
OPR
-20 to +75 ˚C
Guaranteed storage temperature T
STG
-30 to +80 ˚C
Guaranteed performance temperature T
SPEC
-20 to +60 ˚C
Recommended Operating Voltage
*1
V
ANA
: V
DD
SUB, V
DD
HAN, V
DD
HCM1 to 2, V
DD
HSN1 to 4 (2.8 V power supply)
*2
V
DIG
: V
DD
LSC1 to 4, V
DD
LCN1 to 2, V
DD
LPL1 to 2, V
DD
LIF (1.05 V power supply)
*3
V
IF
: V
DD
MIO1 to 2, V
DD
MIF (1.8 V power supply)
Item Symbol Ratings Unit notes
Supply voltage (analog) V
ANA
*1
2.8 ± 0.1 V
refer to
V
SS
level
Supply voltage (digital) V
DIG
*2
1.05 ± 0.1 V
Supply voltage (interface) V
IF
*3
1.8 ± 0.1 V
CONFIDENTIAL
IMX577-AACK-C
4
USE RESTRICTION NOTICE
This USE RESTRICTION NOTICE ("Notice") is for customers who are considering or currently using the
image sensor products ("Products") set forth in this specifications book. Sony Semiconductor Solutions
Corporation ("SSS") may,
at any time, modify this Notice which will be available to you in the latest
specifications book for the Products. You should abide by the latest version of this Notice. If a SSS
subsidiary or distributor has its
own use restriction notice on the Products, such a use restriction notice will
additionally apply between you and the subsidiary or distributor. You should consult a sales representative of
the subsidiary or distributor of SSS on such a use restriction notice when you consider using the Products.
Use Restrictions
The Products are intended for incorporation into such general electronic equipment as office products,
communication products, measurement products, and home electronics products in accordance with
the terms and conditions set forth in this specifications book and otherwise notified by SSS from time
to time.
You should not use the Products for critical applications which may pose a life- or injury-threatening
risk or are highly likely to cause significant property damage in the event of failure of the Products. You
should consult your sales representative beforehand when you consider using the Products for such
critical applications. In addition, you should not use the Products in weapon or military equipment.
SSS disclaims and does not assume any liability and damages arising out of misuse, improper use,
modification, use of the Products for the above-mentioned critical applications, weapon and military
equipment, or any deviation from the requirements set forth in this specifications book.
Design for Safety
SSS is making continuous efforts to further improve the quality and reliability of the Products; however,
failure of a certain percentage of the Products is inevitable. Therefore, you should take sufficient care
to ensure the safe design of your products such as component redundancy, anti-conflagration features,
and features to prevent mis-operation in order to avoid accidents resulting in injury or death, fire or
other social damage as a result of such failure.
Export Control
If the Products are controlled items under the export control laws or regulations of various countries,
approval may be required for the expo
rt of the Products under the said laws or regulations.
You should be responsible for compliance with the said laws or regulations.
No License Implied
The technical information shown in this specifications book is for your reference purposes only. The
availability of this specifications book shall not be construed as giving any indication that SSS and its
licensors will license any intellectual property rights in such information by any implication or otherwise.
SSS will not assume responsibility for any problems in connection with your use of such information or
for any infringement of third-party rights due to the same. It is therefore your sole legal and financial
responsibility to resolve any such problems and infringement.
Governing Law
This Notice shall be governed by and construed in accordance with the laws of Japan, without reference
to principles of conflict of laws or choice of laws. All controversies and disputes arising out of or relating
to this Notice shall be submitted to the exclusive jurisdiction of the Tokyo District Court in Japan as the
court of first instance.
Other Applicable Terms and Conditions
The terms and conditions in the SSS additional specifications, which will be made available to you when
you order the Products, shall also be applicable to your use of the Products as well as to this
specifications book. You should review those terms and conditions when you consider purchasing
and/or using the Products.
General-0.0.9
CONFIDENTIAL
IMX577-AACK-C
5
Contents
Description ............................................................................................................................................................................. 1
Features ................................................................................................................................................................................. 1
Device Structure ..................................................................................................................................................................... 2
Optical Black Array and Readout Scan Direction ................................................................................................................... 2
Absolute Maximum Ratings .................................................................................................................................................... 3
Recommended Operating Voltage ......................................................................................................................................... 3
USE RESTRICTION NOTICE ................................................................................................................................................ 4
1. Optical Center ............................................................................................................................................................ 8
2. Pin Configuration ....................................................................................................................................................... 8
3. Pin Description ........................................................................................................................................................... 9
4. Input / Output Equivalent Circuit .............................................................................................................................. 12
5. Peripheral Circuit Diagram ....................................................................................................................................... 13
5-1 Standard peripheral circuit diagram ..................................................................................................................... 13
5-2 Connecting for OIS compatible system ................................................................................................................ 14
6. Functional Description ............................................................................................................................................. 15
6-1 System Outline .................................................................................................................................................... 15
6-2 Control register setting by the serial communication ........................................................................................... 16
6-2-1 2-wire Serial Communication Operation Specifications ................................................................................... 16
6-2-2 Communication Protocol ................................................................................................................................. 17
6-3 Clock generation and PLL ................................................................................................................................... 18
6-3-1 Clock System Diagram .................................................................................................................................... 18
6-4 Description of operation clocks ............................................................................................................................ 19
6-4-1 INCK ................................................................................................................................................................ 19
6-4-2 IVTCK, IOPCK (PLL output) ............................................................................................................................ 19
6-4-3 IVTPXCK Clock ............................................................................................................................................... 19
6-4-4 IOPPXCK Clock .............................................................................................................................................. 19
6-5 Image Readout Operation ................................................................................................................................... 20
6-5-1 Physical alignment of imaging pixel array ........................................................................................................ 20
6-5-2 Color coding and order of reading image date ................................................................................................ 21
6-6 Output Image Format........................................................................................................................................... 21
6-6-1 Embedded Data Line control ........................................................................................................................... 22
6-6-2 Image size of mode ......................................................................................................................................... 22
6-6-3 Description about operation mode ................................................................................................................... 23
6-6-4 Image area control capabilities ........................................................................................................................ 24
6-6-5 Readout Scan Direction ................................................................................................................................... 25
6-7 Gain setting ......................................................................................................................................................... 26
6-8 Image compensation function .............................................................................................................................. 26
6-8-1 Defect Pixel Correction .................................................................................................................................... 26
CONFIDENTIAL
