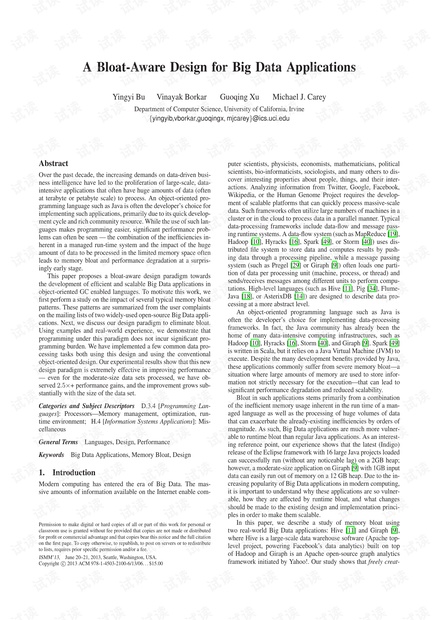

A Bloat-Aware Design for Big Data Applications

Yingyi Bu Vinayak Borkar Guoqing Xu Michael J. Carey

Department of Computer Science, U niversity of California, Irvine

{yingyib,vborkar,guoqingx, mjcarey}@ics.uci.edu

Abstract

Over the past decade, the increasing demands on data-driven busi-

ness intelligence have led to the proliferation of large-scale, data-

intensive applications that often have huge amounts of data (often

at terabyte or petabyte scale) to process. An object-oriented pro-

gramming language such as Java is often the developer’s choice for

implementing such applications, primarily due to its quick develop-

ment cycle and rich community resource. While the use of such lan-

guages makes programming easier, signiﬁcant performance prob-

lems can often be seen — the combination of the inefﬁciencies in-

herent in a managed run-time system and t he impact of the huge

amount of data to be processed in the limited memory space often

leads to memory bloat and performance degradation at a surpris-

ingly early stage.

This paper proposes a bloat-aware design paradigm towards

the development of efﬁcient and scalable Big Data applications in

object-oriented GC enabled languages. To motivate this work, we

ﬁrst perform a study on the impact of several typical memory bloat

patterns. These patterns are summarized from the user complaints

on the mailing lists of t wo widely-used open-source Big Data appli-

cations. Next, we discuss our design paradigm to eliminate bloat.

Using examples and real-world experience, we demonstrate that

programming under this paradigm does not incur signiﬁcant pro-

gramming burden. We have implemented a few common data pro-

cessing tasks both using this design and using the conventional

object-oriented design. Our experimental results show that this new

design paradigm is extremely effective in improving performance

— even for the moderate-size data sets processed, we have ob-

served 2.5×+ performance gains, and the improvement grows sub-

stantially with the size of the data set.

Categories and Subject Descriptors D.3.4 [Programming Lan-

guages]: Processors—Memory management, optimization, run-

time environment; H.4 [Information Systems Applications]: Mis-

cellaneous

General Terms Languages, Design, Performance

Keywords Big Data Applications, Memory Bloat, Design

1. Introduction

Modern computing has entered the era of Big Data. The mas-

sive amounts of information available on the Internet enable com-

Permission to make digital or hard copies of all or part of this work for personal or

classroom use is granted without fee provided that copies are not made or distributed

for proﬁt or commercial advantage and that copies bear this notice and the full citation

on the ﬁrst page. To copy otherwise, to republish, to post on servers or to redistribute

to lists, requires prior speciﬁc permission and/or a fee.

ISMM’13,

June 20–21, 2013, Seattle, Washington, USA.

 2013 ACM 978-1-4503-2100-6/13/06. . . $15.00

puter scientists, physicists, economists, mathematicians, political

scientists, bio-informaticists, sociologists, and many others to dis-

cover interesting properties about people, things, and their inter-

actions. Analyzing information from Twitter, Google, Facebook,

Wikipedia, or the Human Genome Project requires the develop-

ment of scalable platforms that can quickly process massive-scale

data. Such frameworks often utilize large numbers of machines in a

cluster or in the cloud to process data in a parallel manner. Typical

data-processing frameworks include data-ﬂow and message pass-

ing runtime systems. A data-ﬂow system (such as MapReduce [19],

Hadoop [10 ] , Hyracks [16], Spark [49], or Storm [40]) uses dis-

tributed ﬁle system to store data and computes results by push-

ing data t hrough a processing pipeline, while a message passing

system (such as Pregel [29] or Giraph [9]) often loads one parti-

tion of data per processing unit (machine, process, or thread) and

sends/receives messages among different units to perform compu-

tations. High-level languages (such as Hive [11], Pig [34], Fl ume-

Java [18], or Asteri xDB [14]) are designed to describe data pro-

cessing at a more abstract level.

An object-oriented programming l anguage such as Java is

often the developer’s choice for implementing data-processing

frameworks. In fact, the Java community has already been the

home of many data-intensive computing infrastructures, such as

Hadoop [10], Hyracks [16], Storm [40], and Giraph [9]. Spark [49]

is written in Scala, but it relies on a Java Virtual Machine (JVM) to

execute. Despite the many development beneﬁts provided by Java,

these applications commonly suffer from severe memory bloat—a

situation where large amounts of memory are used to store infor-

mation not str ictly necessary for t he execution—that can lead to

signiﬁcant performance degradation and reduced scalability.

Bloat in such applications stems primarily from a combination

of the inefﬁcient memory usage inherent in the run time of a man-

aged language as well as the processing of huge volumes of data

that can exacerbate t he already-existing inefﬁciencies by orders of

magnitude. As such, Big Data applications are much more vulner-

able to runtime bloat than regular Java applications. As an interest-

ing reference point, our experience shows that the latest (I ndigo)

release of the Eclipse framework with 16 large Java projects loaded

can successfully run (without any noticeable lag) on a 2GB heap;

however, a moderate-size application on Giraph [9] wi th 1GB input

data can easily run out of memory on a 12 GB heap. Due to the in-

creasing popularity of Big Data applications in modern computing,

it is important to understand why these applications are so vulner-

able, how they are affected by runtime bloat, and what changes

should be made to the existing design and implementation princi-

ples in order to make them scalable.

In this paper, we describe a study of memory bloat using

two real-world Big Data applications: Hive [11] and Giraph [9],

where Hive is a large-scale data warehouse software (Apache top-

level project, powering Facebook’s data analytics) built on top

of Hadoop and G iraph is an Apache open-source graph analytics

framework initiated by Yahoo!. Our study shows that freely creat-

ing objects (as encouraged by object-orientation) is the root cause

of the performance bottleneck that prevents these applications from

scaling up to large data sets.

To gain a deep understanding of the bottleneck and how to ef-

fectively optimize it away, we break down the problem of exces-

sive object creation into two different aspects, (1) what is the space

overhead if all data items are represented by Java objects? and (2)

given all these objects, what is the memory management (i.e., GC)

costs in a typical B ig Data application? These two questions are

related, respectively, to the spatial impact and the temporal impact

that object creation can have on performance and scalability.

On the one hand, each Java object has a ﬁxed-size header space

to store its type and the information necessary for garbage collec-

tion. What constitutes the space overhead is not just object head-

ers; the other major component is from the pervasive use of object-

oriented data structures that commonly have multiple layers of del-

egations. Such delegation patterns, while simplifying development

tasks, can easily lead to wasteful memory space that stores point-

ers to form data structures, rather than the actual data needed for

the forward execution. Based on a study reported in [32], the frac-

tion of the actual data in an IBM application i s only 13% of the

total used space. This impact can be signiﬁcantly magniﬁed in a

Big Data application that contains a huge number of (relatively

small) data item objects. For such small objects, the space overhead

cannot be easily amortized by the actual data content. The prob-

lem of inefﬁcient memory usage becomes increasingly painful for

highly-parallel data-processing systems because each thread con-

sumes excessive memory resource, leading to increased I/O costs

and reduced concurrency.

On the other hand, a typical tracing garbage collection (GC) al-

gorithm periodically traverses the entire live object graph to iden-

tify and reclaim unreachable objects. For non-allocation-intensive

applications, efﬁcient garbage collection algorithms such as a gen-

erational GC can quickly mark reachable objects and reclaim mem-

ory from dead objects, causing negligible interruptions from the

main execution threads. However, once the heap grows to be large

(e.g., a few dozens of GBs) and most objects in the heap are live, a

single GC call can become exceedingly longer. In addition, because

the amount of used memory in a Big Data application is often close

to the heap size, GC can be frequently triggered and would even-

tually become the major bottleneck that prevents the main threads

from making satisfactory progress. We observe that in most B ig

Data applications, a huge number of objects (representing data to

be processed in the same batch) often have the same lifetime, and

hence it is highly unnecessary for the GC to traverse each individ-

ual object every time to determine whether or not it is reachable.

Switch back to an unmanaged language? Switching back to

an unmanaged language such as C++ appears to be a reasonable

choice. H owever, our experience with many Big Data applications

(such as Hive, Pig, Jaql, Giraph, or Mahout) suggests t hat a Big

Data application often exhibits clear distinction between a control

path and a data path. The control path organizes tasks into the

pipeline and performs optimizations while the data path represents

and manipulates data. For example, in a typical Big Data applica-

tion that runs on a shared-nothing cluster, there is often a driver

at the client side that controls the data ﬂow and there are multi-

ple run-time data operators executing data processing algorithms

on each machine. The execution of the driver in the control path

does not touch any actual data. Only the execution of the data op-

erators in the data path manipulates data items. While the data path

creates most of the run-time objects, it s development often takes a

very small amount of coding effort, primarily because data process-

ing algorithms (e.g., joining, grouping, sorting, etc.) can be easily

shared and reused across applications.

One study we have performed on seven open-source Big Data

applications shows that the data ﬂow path takes an overage 36.8%

of the lines of source code but creates more than 90% of the

objects during execution. Details of this study can be found in

Section 4.3. Following the conventional object-oriented design for

the control path is often unharmful; it is the data path that needs a

non-conventional design and an extremely careful implementation.

As the control path takes the majority of the development work,

it is unnecessary to f orce developers to switch to an unmanaged

language for the whole application where they have to face the (old)

problems of low productivity, less community resource, manual

memory management, and error-prone implementations.

Although the inefﬁcient use of memory in an object-oriented

language is a known problem and has been studied before (e.g.,

in [32]), there does not exist any systematic analysis of its impact

on Big Data applications. In this paper, we study this impact both

analytically and empirically. We argue that the designers of a B ig

Data application should strictly follow the following principle: the

number of data objects in the system has to be bounded and can-

not grow proportionally with the size of the data to be processed.

To achieve this, we propose a new design paradigm that advocates

to merge small objects in the storage and access the merged ob-

jects using data processors. The idea is inspired from old mem-

ory management technique called page-based record management,

which has been used widely to build database systems. We adopt

the proposed design paradigm in our “build-from-scratch” general-

purpose Big Data processing framework ( call ed H yracks) at the

application (Java) level, without requiring the modiﬁcation of the

JVM or the Java compiler. We demonstrate, using both examples

and experience, that writing programs using the proposed design

paradigm does not create much burden for developers.

We have implemented several common data processing tasks

by following both this new design paradigm and t he conventional

object-oriented design principle. Our experimental results demon-

strate that the implementations following the new design can scale

to much larger data sizes than t hose following the conventional

design. We believe that this new design paradigm is valuable in

guiding the future implementations of Big Data applications using

managed object-oriented languages. The observations made in this

paper strongly call for novel optimization techniques targeting Big

Data applications. For example, optimizer designers can develop

automated compiler and/or runtime system support (e.g., within a

JVM) to remove the identiﬁed inefﬁciency patterns in order to pro-

mote the use of object-oriented languages in developing Big Data

applications. Furthermore, future development of benchmark suites

should consider the inclusion of such applications to measure JVM

performance.

Contributions of this paper include:

•

an analytical study on the memory usage of common Bi g Data

processing tasks such as the graph link analysis and the rela-

tional join. We ﬁnd that the excessive creation of objects to rep-

resent and process data items i s the bottleneck that prevents Big

Data applications from scaling up t o large datasets (Section 2);

•

a bloat-aware design paradigm for the development of highly-

efﬁcient Big Data applications; instead of building a new mem-

ory system to solve t he memory issues from scratch, we propose

two application-level optimizations, including (1) merging (in-

lining) a chunk of small data item objects with the same lifetime

into few large objects (e.g., few byte arrays) and (2) manipulat-

ing data by directly accessing merged objects (i.e., at the binary

level), in order to mitigate the observed memory bloat patterns

(Section 3);

•

a set of experimental results (Section 5) that demonstrate sig-

niﬁcant memory and time savings using the design. We report

our experience of programming for real-world data-processing

tasks in the Hyracks platform (Section 4). We compare the per-

formance of several Big Data applications with and without us-

ing the proposed design; the experimental results show that our

optimizations are extremely effective (Section 5).

2. Memory Analysis of Big Data Applications

In this section, we study two popular data-intensive applications,

Giraph [9] and Hive [11], to investigate the impact of creating

of Java objects to represent and process data on performance and

scalability. Our analysis drills down to two fundamental problems,

one in space and one in time: (1) large space consumed by object

headers and object references, leading to low packing factor of

the memory, and (2) massive amounts of objects and references,

leading to poor GC performance. We analyze these two problems

using examples from Giraph and Hive, respectively.

2.1 Low Packing Factor

In the Java runtime, each object requires a header space for type

and memory management purposes. An additional space is needed

by an array to store its length. For instance, in the Oracle 64-

bit HotSpot JVM, the header spaces for a regular object and for

an array take 8 and 12 bytes, r espectively. In a typical Big Data

application, the heap often contains many small objects (such as

Integers representing record IDs), in which the overhead in-

curred by headers cannot be easily amortized by the actual data

content. Space inefﬁciencies are exacerbated by the pervasive uti-

lization of object-oriented data structures. These data structures of-

ten use multiple-level of delegations to achieve their functionality,

leading to large space storing pointers instead of the actual data. In

order to measure the space inefﬁciencies introduced by the use of

objects, we employ a metric called packing factor, which is deﬁned

as the maximal amount of actual data that be accommodated into

a ﬁxed amount of memory. While a similar analysis [32] has been

conducted to understand the health of Java collections, our analysis

is speciﬁc to Big Data applications where a huge amount of data

ﬂow through a ﬁxed amount memory in a batch-by-batch manner.

To analyze the packing factor for the heap of a typical Big Data

application, we use the PageRank algorithm [35] (i.e., an applica-

tion built on top of Giraph [9]) as a running example. PageRank is

a link analysis algorithm that assigns weights (ranks) to each vertex

in a graph by iteratively computing the weight of each vertex based

on the weight of its inbound neighbors. This algorithm is widely

used to rank web pages in search engines.

We ran PageRank on different open-source Big Data com-

puting systems, including Giraph [9], Spark [49], and Ma-

hout [12], using a 6-rack, 180-machine research cluster. Each ma-

chine has 2 quad-core Intel Xeon E5420 processors and 16GB

RAM. We used a 70GB web graph dataset that has a total of

1, 413, 511, 393 vertices. We found none of t he three systems

could successfully process this dataset. They all crashed with

java.lang.OutOfMemoryError, even though the data par-

titioned for each machine (i.e., less than 500MB) should easily ﬁt

into its physical memory.

We found t hat many real-world developers experienced simi-

lar problems. For example, we saw a number of complaints on

OutOfMemoryError from Giraph’s user mailing list, and there

were 13 bloat-related threads on Giraph’s mailing list during the

past 8 months

. In order to locate the bottleneck, we perform a

quantitative analysis using PageRank. Gir aph contains an example

http://mail-archives.apache.org/mod

mbox/giraph-user/

Figure 1. Giraph object subgraph rooted at a vertex.

Class #Objects Header (b) Pointer (b)

Vertex 1 8 40

List 3 24 24

List$Array 3 36 8(m + n)

LongWritable m + 1 8m + 8 0

DoubleWritable n + 1 8n + 8 0

Total m + n + 9 8(m + n) + 84 8(m + n) + 64

Table 1. Numbers of objects per vertex and their space overhead

(in bytes) in PageRank in the Sun 64-bit H opspot JVM.

implementation of the PageRank algorithm. Part of its data repre-

sentation implementation

is shown below.

public abstract class EdgeListVertex<

I extends WritableComparable,

V extends Writable,

E extends Writable, M extends Writable>

extends MutableVertex<I, V, E, M> {

private I vertexId = null;

private V vertexValue = null;

indices of its outgoing edges

private List<I> destEdgeIndexList;

values of its outgoing edges

private List<E> destEdgeValueList;

incoming messages from

the previous iteration

private List<M> msgList;

......

return the edge indices starting from 0

public List<I> getEdegeIndexes(){

...

}

Graphs handled in Giraph are labeled (i.e., both their ver-

tices and edges are annotated with values) and t heir edges

are directional. Class EdgeListVertex represents a graph

vertex. Among its ﬁelds, vertexId and vertexValue

store the ID and the value of the vertex, respectively. Field

destEdgeIndexList and destEdgeValueList reference,

respectively, a list of IDs and a list of values of its outgoing edges.

msgList contains incoming messages sent to the vertex from the

previous iteration. Figure 1 visualizes the Java object subgraph

rooted at an EdgeListVertex object.

In Giraph’s PageRank implementation, the concrete types for

I, V , E, and M are LongWritable, DoubleWritable,

in revision 1232166.

剩余11页未读，继续阅读

shi1984

2014-06-20

感觉还可以，只是英文比较差，看起来有点吃力。

PowerYangcl

粉丝: 6
资源: 18

会员权益专享

大数据应用程序设计Design for Big Data Applications

评论2

会员权益专享

最新资源

大数据应用程序设计Design for Big Data Applications

评论2

Software Architecture for Big Data and the Cloud

Handbook of Big Data Technologies

Big Data Architect's Handbook

Building Data Streaming Applications with Apache Kafka

Modern Big Data Processing with Hadoop

Visual Design of GraphQL Data

数据结构与程序设计（英文版）Data Structures and Program Design in C++ Robert L. Kruse

Data Analytics with Hadoop: An Introduction for Data Scientists

s32 design studio for arm

Implementing.Cloud.Design.Patterns.for.AWS

The design of modern microwave oscillators for wireless applications.pdf

安装s32 Design studio for ARM

trusted computing platforms:design and applications

C++ Programming - Program Design Including Data Structures (Fifth Edition)

会员权益专享

最新资源
