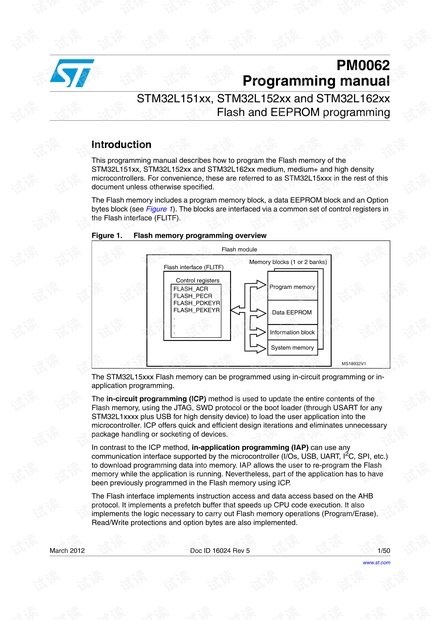

March 2012 Doc ID 16024 Rev 5 1/50
PM0062
Programming manual
STM32L151xx, STM32L152xx and STM32L162xx
Flash and EEPROM programming
Introduction
This programming manual describes how to program the Flash memory of the
STM32L151xx, STM32L152xx and STM32L162xx medium, medium+ and high density
microcontrollers. For convenience, these are referred to as STM32L15xxx in the rest of this
document unless otherwise specified.
The Flash memory includes a program memory block, a data EEPROM block and an Option
bytes block (see Figure 1). The blocks are interfaced via a common set of control registers in
the Flash interface (FLITF).
Figure 1. Flash memory programming overview
The STM32L15xxx Flash memory can be programmed using in-circuit programming or in-
application programming.
The in-circuit programming (ICP) method is used to update the entire contents of the
Flash memory, using the JTAG, SWD protocol or the boot loader (through USART for any
STM32L1xxxx plus USB for high density device) to load the user application into the
microcontroller. ICP offers quick and efficient design iterations and eliminates unnecessary
package handling or socketing of devices.
In contrast to the ICP method, in-application programming (IAP) can use any
communication interface supported by the microcontroller (I/Os, USB, UART, I
2
C, SPI, etc.)
to download programming data into memory. IAP allows the user to re-program the Flash
memory while the application is running. Nevertheless, part of the application has to have
been previously programmed in the Flash memory using ICP.
The Flash interface implements instruction access and data access based on the AHB
protocol. It implements a prefetch buffer that speeds up CPU code execution. It also
implements the logic necessary to carry out Flash memory operations (Program/Erase).
Read/Write protections and option bytes are also implemented.
-36
0ROGRAMMEMORY
3YSTEMMEMORY
&,!3(?!#2
&,!3(?0%#2
&,!3(?0$+%92
&,!3(?0%+%92
#ONTROLREGISTERS
)NFORMATIONBLOCK
$ATA%%02/-
&LASHINTERFACE&,)4&
&LASHMODULE
-EMORYBLOCKSORBANKS
www.st.com
Contents PM0062
2/50 Doc ID 16024 Rev 5
Contents
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Main features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Flash module organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1 Read interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1.1 Relation between CPU clock frequency and Flash memory read time . 12
3.1.2 Instruction prefetch when Flash access is 64 bits . . . . . . . . . . . . . . . . . 14
3.1.3 Data management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4 Memory operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Unlocking/locking memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1.1 Unlocking the Data EEPROM block and the FLASH_PECR register . . 16
4.1.2 Unlocking the program memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1.3 Unlocking the option byte block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2 Erasing memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2.1 Data EEPROM word erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2.2 Data EEPROM double word erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2.3 Program memory page erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2.4 Program memory parallel page erase . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.3 Programming memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.3.1 Program memory Fast Word Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.3.2 Program memory Half Page Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.3.3 Program memory Parallel Half Page Write . . . . . . . . . . . . . . . . . . . . . . 21
4.3.4 Data EEPROM double Word Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.3.5 Data EEPROM Fast Word Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.3.6 Data EEPROM Word Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.3.7 Data EEPROM Fast Half Word Write . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.3.8 Data EEPROM Half Word Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.3.9 Data EEPROM Fast Byte Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.3.10 Data EEPROM Byte Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.4 Read while write (RWW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
PM0062 Contents
Doc ID 16024 Rev 5 3/50
4.4.1 Alignment error flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.4.2 Size error flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.4.3 Bus error (Cortex-M3 hardfault or Busfault) . . . . . . . . . . . . . . . . . . . . . . 28
5 Option byte description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.1 Option byte block programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6 Quick reference to programming/erase functions . . . . . . . . . . . . . . . . 33
7 Memory protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7.1 Readout protection (RDP) of the program and data EEPROMs . . . . . . . 35
7.1.1 Level 1: memory read protection enabled . . . . . . . . . . . . . . . . . . . . . . . 35
7.1.2 Level 2: memory read protection enabled and all debug features
disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.2 Write protection (WRP) of the program memory . . . . . . . . . . . . . . . . . . . 37
7.3 Write protection error flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8 Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9 Register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1 Access control register (FLASH_ACR) . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.2 Program/erase control register (FLASH_PECR) . . . . . . . . . . . . . . . . . . . 40
9.3 Power down key register (FLASH_PDKEYR) . . . . . . . . . . . . . . . . . . . . . . 42
9.4 Program/erase key register (FLASH_PEKEYR) . . . . . . . . . . . . . . . . . . . . 43
9.5 Program memory key register (FLASH_PRGKEYR) . . . . . . . . . . . . . . . . 43
9.6 Option byte key register (FLASH_OPTKEYR) . . . . . . . . . . . . . . . . . . . . . 44
9.7 Status register (FLASH_SR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.8 Option byte register (FLASH_OBR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.9 Write protection register (FLASH_WRPRx) . . . . . . . . . . . . . . . . . . . . . . . 47
9.10 Register map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
10 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
List of tables PM0062
4/50 Doc ID 16024 Rev 5
List of tables
Table 1. Flash module organization (medium density devices) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Table 2. Flash module organization (medium+ devices) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 3. Flash module organization (high density devices) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 4. Number of wait states (WS) according to CPU clock (HCLK) frequency . . . . . . . . . . . . . . 13
Table 6. Data EEPROM programming times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Table 7. Read While Write Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table 8. Prohibited operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Table 9. Option byte organization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Table 10. Description of the option bytes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Table 11. Programming/erase functions (medium density devices) . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Table 12. Programming/erase functions (high density devices) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Table 13. Flash memory module protection according to RDP and its complement . . . . . . . . . . . . . 36
Table 14. Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Table 15. Register map and reset values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Table 16. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
PM0062 List of figures
Doc ID 16024 Rev 5 5/50
List of figures
Figure 1. Flash memory programming overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 2. Sequential 32 bits instructions execution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 3. RDP levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
剩余49页未读,继续阅读
