Lenovo ThinkSystem SR590 Server
Lenovo ThinkSystem SR590 is a 2-socket 2U rack server for small businesses up to large enterprises that need
industry-leading reliability, management, and security, as well as balancing performance and expandability. The
SR590 server is designed to handle a wide range of workloads, such as virtualization and cloud computing, IT
infrastructure, enterprise applications, collaboration/email, and web serving.
Featuring the Intel Xeon Processor Scalable Family, the SR590 server offers balanced performance, storage
capacity, and I/O expansion. The SR590 server supports up to two processors, up to 1 TB of 2666 MHz
TruDDR4 memory, up to 16x 2.5-inch or 14x 3.5-inch drive bays with an extensive choice of NVMe PCIe SSDs,
SAS/SATA SSDs, and SAS/SATA HDDs, and flexible I/O expansion options with the LOM slot and up to 6x
The SR590 server offers basic software RAID or advanced hardware RAID protection and a wide range of
networking options, including selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo
XClarity Controller, which is built into the SR590 server, provides advanced service processor control,
monitoring, and alerting functions.
The following figure shows the ThinkSystem SR590 models.

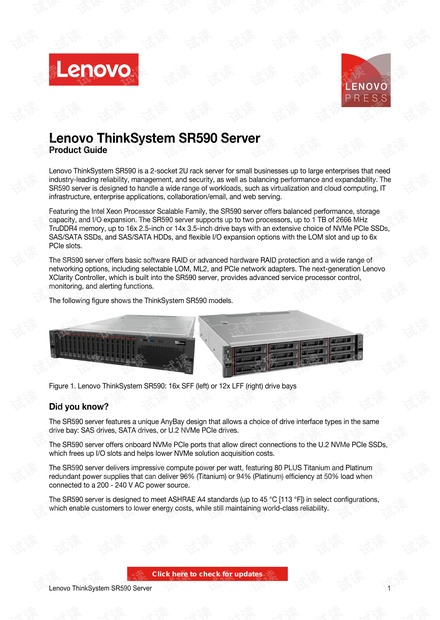

Figure 1. Lenovo ThinkSystem SR590: 16x SFF (left) or 12x LFF (right) drive bays
Did you know?
The SR590 server features a unique AnyBay design that allows a choice of drive interface types in the same
drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives.
The SR590 server offers onboard NVMe PCIe ports that allow direct connections to the U.2 NVMe PCIe SSDs,
which frees up I/O slots and helps lower NVMe solution acquisition costs.
The SR590 server delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum
redundant power supplies that can deliver 96% (Titanium) or 94% (Platinum) efficiency at 50% load when
connected to a 200 - 240 V AC power source.
The SR590 server is designed to meet ASHRAE A4 standards (up to 45 °C [113 °F]) in select configurations,
which enable customers to lower energy costs, while still maintaining world-class reliability.
Lenovo ThinkSystem SR590 Server 1
Click here to check for updates
The SR590 server offers a balance of processing power, storage capacity, and cost for small and medium
businesses up to the large enterprise. Ease of use and comprehensive systems management tools help make
deployment easier. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design
improve your business environment and help save operational costs.
Scalability and performance
The SR590 server offers numerous features to boost performance, improve scalability, and reduce costs:
Improves productivity by offering superior system performance with the Intel Xeon Processor Scalable
Family with up to 26-core processors, up to 35.75 MB of last level cache (LLC), up to 2666 MHz
memory speeds, and up to 10.4 GT/s Ultra Path Interconnect (UPI) links.
Support for up to two processors, 52 cores, and 104 threads allows to maximize the concurrent
execution of multithreaded applications.
Intelligent and adaptive system performance with energy efficient Intel Turbo Boost 2.0
Technology allows CPU cores to run at maximum speeds during peak workloads by temporarily
going beyond processor thermal design power (TDP).
Intel Hyper-Threading Technology boosts performance for multithreaded applications by
enabling simultaneous multithreading within each processor core, up to two threads per core.
Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating
system vendors to better utilize the hardware for virtualization workloads.
Intel Advanced Vector Extensions 512 (AVX-512) enable acceleration of enterprise-class and high
performance computing (HPC) workloads.
Helps maximize system performance for data intensive applications with up to 2666 MHz memory
speeds and up to 1 TB of memory capacity.
Offers flexible and scalable internal storage in a 2U rack form factor with up to 16x 2.5-inch drives for
performance-optimized configurations or up to 14x 3.5-inch drives for capacity-optimized
configurations, providing a wide selection of SAS/SATA HDD/SSD and PCIe NVMe SSD types and
Provides flexibility to use SAS, SATA, or NVMe PCIe drives in the same drive bays with a unique AnyBay
Provides I/O scalability with the LOM slot and up to six PCI Express (PCIe) 3.0 I/O expansion slots in a
2U rack form factor.
Reduces I/O latency and increases overall system performance with Intel Integrated I/O Technology that
embeds the PCI Express 3.0 controller into the Intel Xeon Processor Scalable Family.
Availability and serviceability
The SR590 server provides many features to simplify serviceability and increase system uptime:
Offers protection in the event of a non-correctable memory failure with Single Device Data Correction
(SDDC, also known as Chipkill, requires x4-based DIMMs), Adaptive Double Device Data Correction
(ADDDC, also known as Redundant Bit Steering [RBS], requires x4-based DIMMs and Intel Xeon Gold
or Platinum processors), memory mirroring, and memory rank sparing.
Provides easy access to upgrades and serviceable parts (such as processors, memory DIMMs, and
adapter cards) with tool-less cover removal.
Offers affordable data protection with software RAID and Simple Swap drives and advanced hardware
RAID data redundancy with hot-swap drives.
Provides availability for business-critical applications with redundant hot-swap power supplies and
redundant hot-swap fans.
Simplifies servicing, speeds up problem resolution, and helps improve system availability with light path
Lenovo ThinkSystem SR590 Server 2
Allows preventive actions in advance of possible failure, thereby increasing server uptime and
application availability with Proactive Platform Alerts (including PFA and SMART alerts) for processors,
voltage regulators, memory, internal storage (SAS/SATA HDDs and SSDs, NVMe SSDs, M.2 storage),
fans, power supplies, RAID controllers, and server ambient and sub-component temperatures.
Continuously monitors system parameters, triggers alerts, and performs recovery actions in case of
failure to minimize downtime with Built-in XClarity Controller (XCC).
Provides quick access to system status, firmware, network, health, and alerts information via Virtual
Operator Panel from the XClarity Mobile App running on the Android or iOS mobile device that is
connected to the front USB port with XClarity Controller access.
Speeds up troubleshooting tasks to reduce service time with diagnostics built into the XClarity
Manageability and security
Powerful systems management features simplify local and remote management of the SR590 server and
deliver enterprise-class data protection:
Provides advanced service processor control, monitoring, and alerting functions with XClarity
Controller, a next generation service processor.
Improves Unified Extensible Firmware Interface (UEFI) system setup, configuration, updates, simplified
error handling, and operating system deployment with the embedded XClarity Provisioning Manager.
Offers XClarity Essentials software tools that can help you set up, use, and maintain the server.
Increases uptime, reduces costs, and improves productivity through advanced server management
capabilities with Lenovo XClarity Administrator that provides comprehensive hardware management.
Provides on-the-go monitoring and management of devices in XClarity Administrator from anywhere
with the Lenovo XClarity mobile app, which can help improve efficiency and reduce downtime risks.
Centralizes infrastructure resource management with Lenovo XClarity Integrators for VMware vCenter
and Microsoft System Center, extending XClarity Administrator features to virtualization management
software tools and enabling users to deploy and manage infrastructure end-to-end.
Offers advanced cryptographic functionality (such as digital signatures and remote attestation) with an
integrated Trusted Platform Module (TPM) or optional Trusted Cryptographic Module (TCM) or Nationz
TPM (available only in China).
Keeps user data safe with Lenovo Business Vantage, a security software tool suite designed to work
with the Trusted Cryptographic Module (available only in China).
Offers enterprise-class data protection with advanced RAID and optional self-encrypting drives.
Provides faster, stronger encryption with industry-standard AES NI support.
Helps prevent certain classes of malicious buffer overflow attacks with Intel Execute Disable Bit
functionality, when combined with a supporting operating system.
Enhances security through hardware-based resistance to malicious software attacks with Intel Trusted
Execution Technology, allowing an application to run in its own isolated space, protected from all other
software running on a system.
Lenovo ThinkSystem SR590 Server 3
The SR590 server offers the following energy-efficiency features to save energy, reduce operational costs,
increase energy availability, and contribute to the green environment:
Delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant
Enables customers to lower energy costs with design to meet ASHRAE A4 standards in select
Reduces power drawn with Intel Intelligent Power Capability that powers individual processor elements
on and off as needed.
Helps reduce power consumption with variable speed fans.
Helps achieve lower heat output and reduced cooling needs with Lenovo XClarity Energy Manager that
provides advanced data center power notification, analysis, and policy-based management.
Components and connectors
The following figure shows the front of the SR590 server with up to 16x 2.5-inch drive bays.
Figure 2. Front view of the SR590: Up to 16x 2.5-inch drive bays
The following figure shows the front of the SR590 server with 8x 3.5-inch drive bays.
Figure 3. Front view of the SR590: 8x 3.5-inch drive bays
Lenovo ThinkSystem SR590 Server 4
The following figure shows the front of the SR590 server with 12x 3.5-inch drive bays.

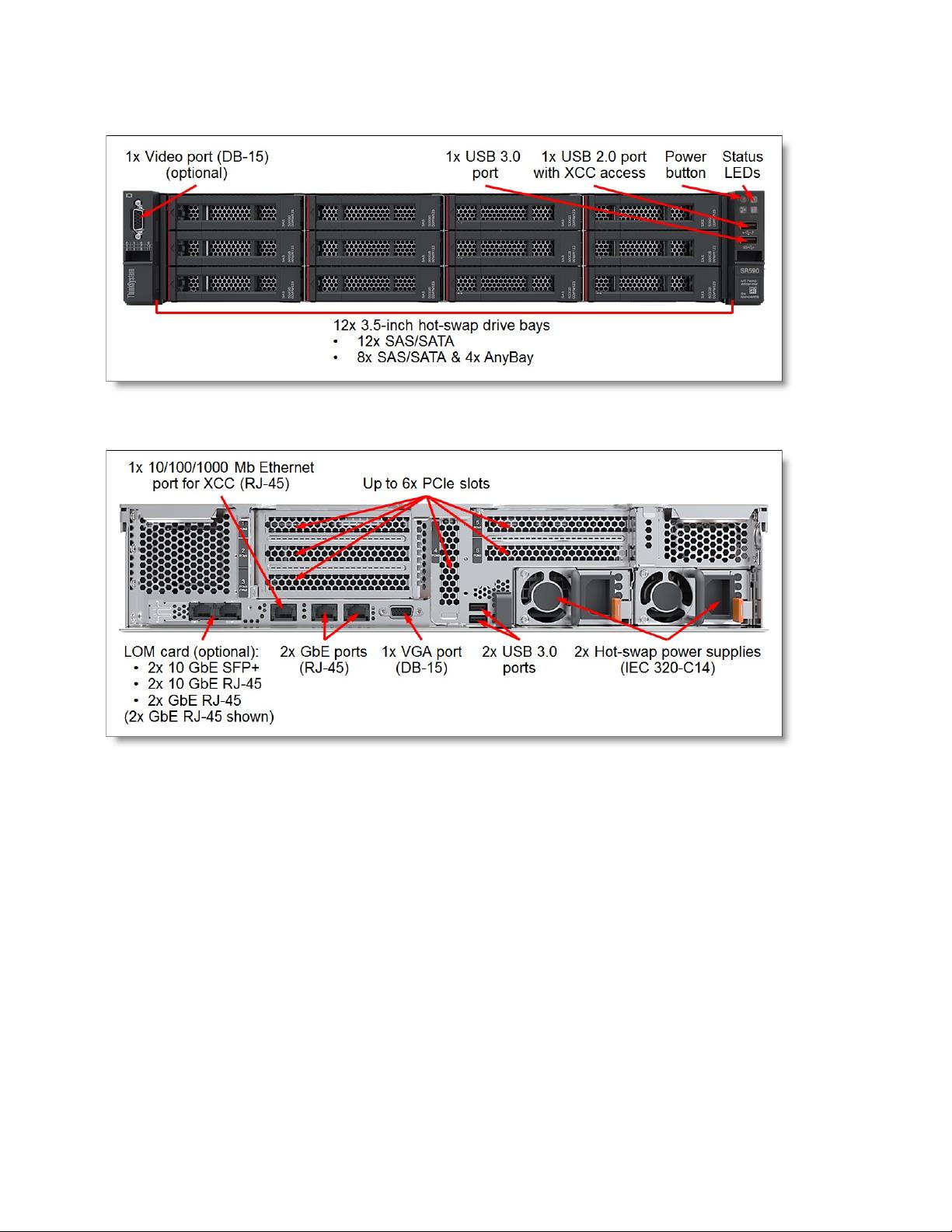

Figure 4. Front view of the SR590: 12x 3.5-inch drive bays
The following figure shows the rear of the SR590 server.
Figure 5. Rear view of the SR590
Lenovo ThinkSystem SR590 Server 5
