1. Introduction

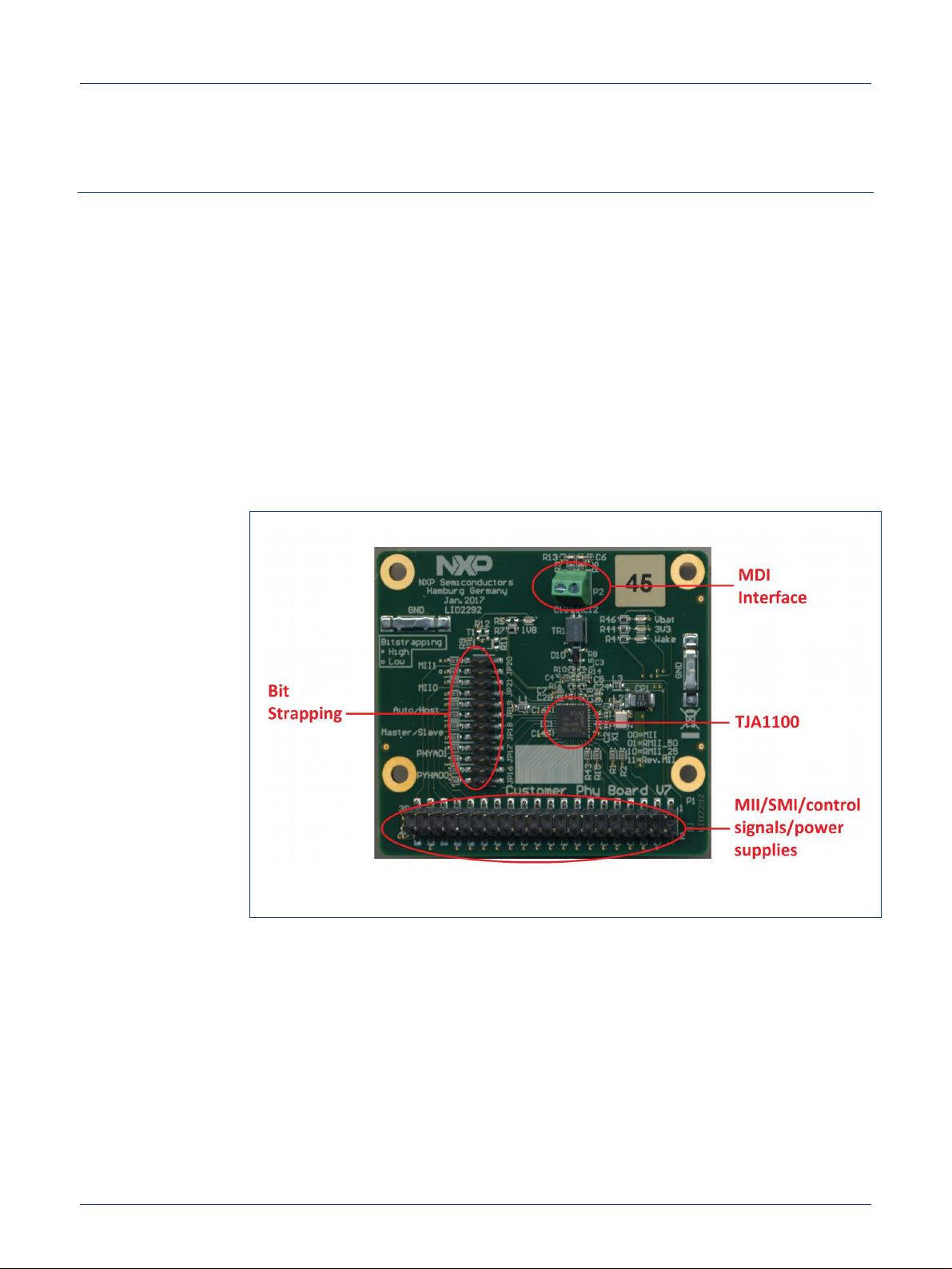

This document describes the usage of the TJA1100 Customer Evaluation Board. The
Board supports the evaluation of the TJA1100 with providing (MII) a 40-pins standard
header (including MII/SMI/control signals/power supplies. Details can be found in section
2.3.1) with 2,54mm pinning distance to a host controller board, the bus interface (MDI)
including a srew terminal (SMKDS) connector as well as needed components for the
power supply and operation. Further information is given in the following sections.
Please note: the evaluation board has been designed for functional evaluation of the
PHY in your environment. The evaluation board is not intended for EMC or compliance
qualification measurements.
This product has not undergone formal EU EMC assessment. As a component used in a
research environment, it will be the responsibility of the user to ensure the finished
assembly does not cause undue interference when used and cannot be CE marked
unless assessed.
