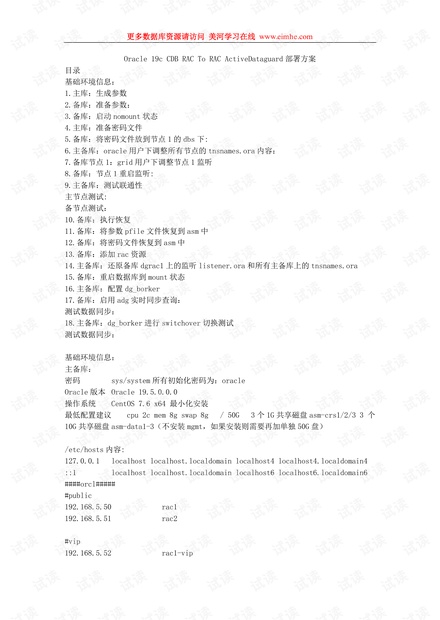

Oracle 19c CDB RAC To RAC ActiveDataguard 部署方案

目录

基础环境信息：

1.主库：生成参数

2.备库：准备参数：

3.备库：启动 nomount 状态

4.主库：准备密码文件

备节点测试：

10.备库：执行恢复

11.备库：将参数 pfile 文件恢复到 asm 中

12.备库：将密码文件恢复到 asm 中

13.备库：添加 rac 资源

14.主备库：还原备库 dgrac1 上的监听 listener.ora 和所有主备库上的 tnsnames.ora

15.备库：重启数据库到 mount 状态

16.主备库：配置 dg_borker

17.备库：启用 adg 实时同步查询：

测试数据同步：

Oracle 版本 Oracle 19.5.0.0.0

操作系统 CentOS 7.6 x64 最小化安装

最低配置建议 cpu 2c mem 8g swap 8g / 50G 3 个 1G 共享磁盘 asm-crs1/2/3 3 个

10G 共享磁盘 asm-data1-3（不安装 mgmt，如果安装则需要再加单独 50G 盘）

/etc/hosts 内容:

127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4

::1 localhost localhost.localdomain localhost6 localhost6.localdomain6

####orcl#####

#public

更多数据库资源请访问 美河学习在线 www.eimhe.com

192.168.5.53 rac2-vip

#priv

192.168.6.50 rac1-priv

192.168.6.51 rac2-priv

#scan

#vip

192.168.5.62 dgrac1-vip

192.168.5.63 dgrac2-vip

#priv

192.168.6.60 dgrac1-priv

192.168.6.61 dgrac2-priv

#scan

private ip 192.168.6.50/192.168.6.51

vip 192.168.5.52/192.168.5.53

scan-ip 192.168.6.54

数据库名

db_name orcl

db_unique_name orcl

SQL> show pdbs;

CON_ID CON_NAME OPEN MODE RESTRICTED

更多数据库资源请访问 美河学习在线 www.eimhe.com

节点 1/节点 2

主机名 dgrac1/dgrac2

public ip 192.168.5.60/192.168.5.61

private ip 192.168.6.62/192.168.6.63

vip 192.168.5.60/192.168.5.61

scan-ip 192.168.6.64

SQL> !cat /home/oracle/o.txt

*.adg_redirect_dml=TRUE

*.audit_file_dest='/oracle/app/oracle/admin/orcl/adump'

*.audit_trail='none'

*.cluster_database=true

*.compatible='19.0.0'

*.control_files='+DATA/ORCL/CONTROLFILE/current.265.1026902749'

*.db_block_size=8192

*.db_create_file_dest='+DATA'

*.db_name='orcl'

*.diagnostic_dest='/oracle/app/oracle'

*.dispatchers='(PROTOCOL=TCP) (SERVICE=orclXDB)'

*.enable_pluggable_database=true

*.fal_server=''

family:dw_helper.instance_mode='read-only'

orcl1.instance_number=1

orcl2.instance_number=2

*.local_listener='-oraagent-dummy-'

*.log_archive_config='nodg_config'

*.log_archive_dest_1='location=+DATA'

更多数据库资源请访问 美河学习在线 www.eimhe.com

*.pga_aggregate_target=780m

*.processes=320

*.remote_login_passwordfile='exclusive'

*.resource_manager_plan='DEFAULT_CDB_PLAN'

*.sga_target=2340m

*.standby_file_management='AUTO'

orcl2.thread=2

参数当中

2.备库：准备参数：

两个节点 oracle 用户执行：

mkdir -p /oracle/app/oracle/admin/dgorcl/adump

cat /home/oracle/o.txt

*.adg_redirect_dml=TRUE

*.audit_file_dest='/oracle/app/oracle/admin/dgorcl/adump'

*.audit_trail='none'

*.cluster_database=true

*.db_recovery_file_dest_size=10737418240

*.db_recovery_file_dest='+DATA'

*.db_unique_name='dgorcl'

*.diagnostic_dest='/oracle/app/oracle'

*.dispatchers='(PROTOCOL=TCP) (SERVICE=orclXDB)'

*.enable_pluggable_database=true

*.fal_server=''

family:dw_helper.instance_mode='read-only'

orcl1.instance_number=1

orcl2.instance_number=2

更多数据库资源请访问 美河学习在线 www.eimhe.com

*.nls_language='AMERICAN'

*.nls_territory='AMERICA'

*.open_cursors=300

*.pga_aggregate_target=780m

*.processes=320

*.remote_login_passwordfile='exclusive'

*.resource_manager_plan='DEFAULT_CDB_PLAN'

*.log_file_name_convert='+DATA','+DATA'

*.db_file_name_convert='+DATA','+DATA'

3.备库：启动 nomount 状态

[oracle@dgrac1 ~]$ sqlplus /nolog

SQL> conn /as sysdba

SQL> startup nomount pfile='/home/oracle/adg.txt';

SQL> exit

4.主库：准备密码文件

Password file: +DATA/ORCL/PASSWORD/pwdorcl.269.1026902735

Domain:

Start options: open

Stop options: immediate

Database role: PRIMARY

Management policy: AUTOMATIC

Server pools:

Disk Groups: DATA

Mount point paths:

Services:
