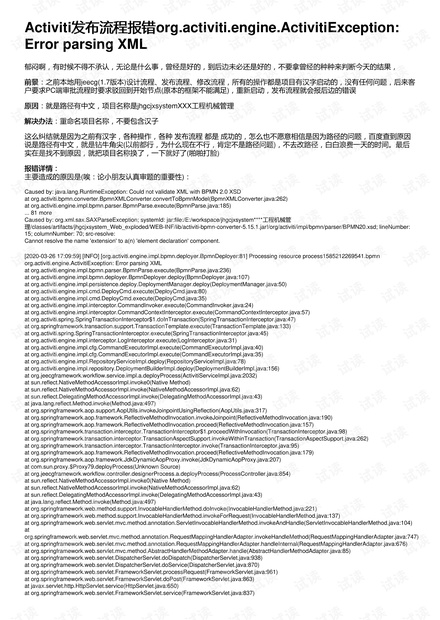

Activiti发布流程报错发布流程报错org.activiti.engine.ActivitiException:
Error parsing XML
郁闷啊，有时候不得不承认，无论是什么事，曾经是好的，到后边未必还是好的，不要拿曾经的种种来判断今天的结果，
前景前景：之前本地用jeecg(1.7版本)设计流程、发布流程、修改流程，所有的操作都是项目有汉字启动的，没有任何问题，后来客
户要求PC端审批流程时要求驳回到开始节点(原本的框架不能满足)，重新启动，发布流程就会报后边的错误
原因原因：就是路径有中文，项目名称是jhgcjxsystemXXX工程机械管理
解决办法解决办法：重命名项目名称，不要包含汉子
这么纠结就是因为之前有汉字，各种操作，各种 发布流程 都是 成功的，怎么也不愿意相信是因为路径的问题，百度查到原因
说是路径有中文，就是钻牛角尖(以前都行，为什么现在不行，肯定不是路径问题)，不去改路径，白白浪费一天的时间。最后
实在是找不到原因，就把项目名称换了，一下就好了(啪啪打脸)
报错详情：报错详情：
主要造成的原因是(唉：论小朋友认真审题的重要性)：
Caused by: java.lang.RuntimeException: Could not validate XML with BPMN 2.0 XSD
at org.activiti.bpmn.converter.BpmnXMLConverter.convertToBpmnModel(BpmnXMLConverter.java:262)
at org.activiti.engine.impl.bpmn.parser.BpmnParse.execute(BpmnParse.java:185)
... 81 more
Caused by: org.xml.sax.SAXParseException; systemId: jar:file:/E:/workspace/jhgcjxsystem****工程机械管
理/classes/artifacts/jhgcjxsystem_Web_exploded/WEB-INF/lib/activiti-bpmn-converter-5.15.1.jar!/org/activiti/impl/bpmn/parser/BPMN20.xsd; lineNumber:
15; columnNumber: 70; src-resolve:
Cannot resolve the name 'extension' to a(n) 'element declaration' component.
[2020-03-26 17:09:59] [INFO] [org.activiti.engine.impl.bpmn.deployer.BpmnDeployer:81] Processing resource process1585212269541.bpmn
org.activiti.engine.ActivitiException: Error parsing XML
at org.activiti.engine.impl.bpmn.parser.BpmnParse.execute(BpmnParse.java:236)
at org.activiti.engine.impl.bpmn.deployer.BpmnDeployer.deploy(BpmnDeployer.java:107)
at org.activiti.engine.impl.persistence.deploy.DeploymentManager.deploy(DeploymentManager.java:50)
at org.activiti.engine.impl.cmd.DeployCmd.execute(DeployCmd.java:80)
at org.activiti.engine.impl.cmd.DeployCmd.execute(DeployCmd.java:35)
at org.activiti.engine.impl.interceptor.CommandInvoker.execute(CommandInvoker.java:24)
at org.activiti.engine.impl.interceptor.CommandContextInterceptor.execute(CommandContextInterceptor.java:57)
at org.activiti.spring.SpringTransactionInterceptor$1.doInTransaction(SpringTransactionInterceptor.java:47)
at org.springframework.transaction.support.TransactionTemplate.execute(TransactionTemplate.java:133)
at org.activiti.spring.SpringTransactionInterceptor.execute(SpringTransactionInterceptor.java:45)
at org.activiti.engine.impl.interceptor.LogInterceptor.execute(LogInterceptor.java:31)
at org.activiti.engine.impl.cfg.CommandExecutorImpl.execute(CommandExecutorImpl.java:40)
at org.activiti.engine.impl.cfg.CommandExecutorImpl.execute(CommandExecutorImpl.java:35)
at org.activiti.engine.impl.RepositoryServiceImpl.deploy(RepositoryServiceImpl.java:78)
at org.activiti.engine.impl.repository.DeploymentBuilderImpl.deploy(DeploymentBuilderImpl.java:156)
at org.jeecgframework.workflow.service.impl.a.deployProcess(ActivitiServiceImpl.java:2032)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:497)
at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:317)
at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:190)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:157)
at org.springframework.transaction.interceptor.TransactionInterceptor$1.proceedWithInvocation(TransactionInterceptor.java:98)
at org.springframework.transaction.interceptor.TransactionAspectSupport.invokeWithinTransaction(TransactionAspectSupport.java:262)
at org.springframework.transaction.interceptor.TransactionInterceptor.invoke(TransactionInterceptor.java:95)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:179)
at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:207)
at com.sun.proxy.$Proxy79.deployProcess(Unknown Source)
at org.jeecgframework.workflow.controller.designerProcess.a.deployProcess(ProcessController.java:854)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:497)
at org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:221)
at org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:137)
at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:104)
at
org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandleMethod(RequestMappingHandlerAdapter.java:747)
at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:676)
at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:85)
at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:938)
at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:870)
at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:961)
at org.springframework.web.servlet.FrameworkServlet.doPost(FrameworkServlet.java:863)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:650)
at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:837)
