I210 (I210) is a single port, compact, low power component that supports GbE designs. The I210 offers a fully-integrated GbE Media Access Control (MAC), Physical Layer (PHY) port and a SGMII/SerDes port that can be connected to an external PHY.
Revision Number: 3.5
Order No. 333016-009

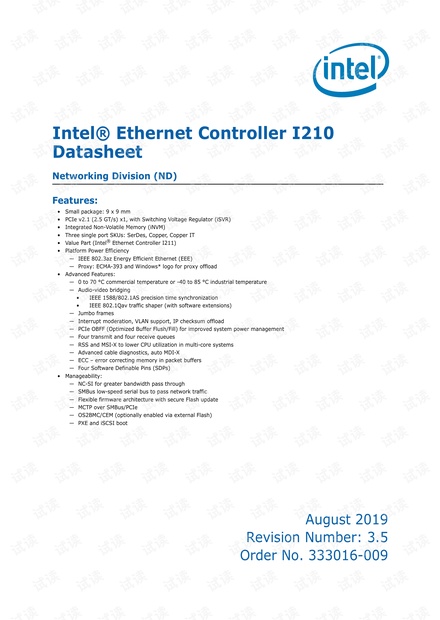

Intel® Ethernet Controller I210
Networking Division (ND)
• Small package: 9 x 9 mm
• PCIe v2.1 (2.5 GT/s) x1, with Switching Voltage Regulator (iSVR)
• Integrated Non-Volatile Memory (iNVM)
• Three single port SKUs: SerDes, Copper, Copper IT
• Value Part (Intel
Ethernet Controller I211)
• Platform Power Efficiency
— IEEE 802.3az Energy Efficient Ethernet (EEE)
— Proxy: ECMA-393 and Windows* logo for proxy offload
• Advanced Features:
— 0 to 70 °C commercial temperature or -40 to 85 °C industrial temperature
— Audio-video bridging
• IEEE 1588/802.1AS precision time synchronization
• IEEE 802.1Qav traffic shaper (with software extensions)
— Jumbo frames
— Interrupt moderation, VLAN support, IP checksum offload
— PCIe OBFF (Optimized Buffer Flush/Fill) for improved system power management
— Four transmit and four receive queues
— RSS and MSI-X to lower CPU utilization in multi-core systems
— Advanced cable diagnostics, auto MDI-X
— ECC – error correcting memory in packet buffers
— Four Software Definable Pins (SDPs)
— NC-SI for greater bandwidth pass through
— SMBus low-speed serial bus to pass network traffic
— Flexible firmware architecture with secure Flash update
—MCTP over SMBus/PCIe
— OS2BMC/CEM (optionally enabled via external Flash)
—PXE and iSCSI boot
No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.
Intel disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness for
a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or
usage in trade.
This document contains information on products, services and/or processes in development. All information provided here is
subject to change without notice. Contact your Intel representative to obtain the latest forecast, schedule, specifications and
The products and services described may contain defects or errors which may cause deviations from published specifications.
Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-
4725 or by visiting www.intel.com/design/literature.htm.
Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries.
* Other names and brands may be claimed as the property of others.
© 2019 Intel Corporation.
Revision History—Ethernet Controller I210
Rev Date Notes
3.5 August 2019
Updated Section 11.3.1 (Power Supply Specification).
3.4 February 2019
Updated Section 11.8.1 (new validated Flash parts).
3.3 June 2018
Updated Section 184.108.40.206.3 [LaunchTime (25)].
3.2 January 2018
Updated Table 2-1 (Pull-Up/Pull-Down Resistors).
Added section 220.127.116.11 (iNVM Structure Version Information).
Updated section 5.5.6 (Timing Guarantees).
Updated section 6.8.2 (Port Identification LED Blinking; Word 0x04).
Updated section 11.8.1 (Flash Parts).
3.1 June 2017
• 3.4.3 (iNVM Programming Flows).
3.0 March 2017
• 18.104.22.168.7 (Internal PHY Power-Down State).
• 22.214.171.124 (MDIO AC Specification).
• 12.4 (Oscillator Support).
• 12.11 (XOR Testing).
2.9 January 2016
• Revised Table 2-1 (changed JTAG_CLK to show a pull down resistor instead of a pull up).
• Updated intra-document cross references.
• Revised the description of Section 126.96.36.199.3 (Synchronized Output Clock on SDP Pins).
• Revised Section 8.15.13 (TimeSync Auxiliary Control Register - TSAUXC (0xB640; RW), bit 4
and bit 7 description).
2.8 September 2015
• Revised Section 188.8.131.52 (added image build information).
• Updated Table 11-11 (t
• Updated Table 11-15 (c
• Updated Figure 12.12 (changed pull-up value from 1.9 to 1.5).
• Updated Section 12.5.4 (Diff to CMR value).
• Added Section 184.108.40.206 (Maximum Trace Lengths Based on Trace Geometry).
• Fixed cross references in Section 12.6.
2.7 February 2015
• Removed all references to IEEE Std 1149.6-2003, IEEE Standard for Boundary-Scan Testing of
Advanced Digital Networks, IEEE, 2003.
• Updated section 220.127.116.11 (Misc Test - Page 6, Register 26).
• Removed sections 18.104.22.168 through 22.214.171.124.
• Updated section 12-4 (Oscillator Support).
• Added section 12.5.5 (Designing the I210 as a 10/100 Mb/s Only Device).
• Updated section 126.96.36.199 (Differential Pair Trace Routing for 10/100/1000 Designs).
2.6 June 2014
• Revised section 11.8.1 (replaced W25Q16DWSSIG with W25Q16DVSSIG).
2.5 February 2014
• Replaced figure 2-2.
• Revised section 3.4 (iNVM).
• Revised section 3.4.2 (iNVM Structures).
• Revised section 188.8.131.52.5.1 (Internal PHY Back-to-Back SPD).
• Revised table 8-6 (Register Summary; PQMPRC[0 - 3]).
• Revised table 11-11 (Flash I/F Timing Parameters).
• Revised table 11-17 (Specification for External Clock Oscillator).
2.4 July 2013
• Updated revision history.
Ethernet Controller I210 —Revision History
Rev Date Notes
2.3 June 2013
• Revised section 1.3.1 (Audio/Video Bridging Support).
• Revised section 184.108.40.206 (Common Firmware Parameters 1 - Offset 0x1; bit 15).
• Revised section 220.127.116.11 (Receive-Side Scaling (RSS).
• Revised section 18.104.22.168 (Capture Timestamp Mechanism).
• Revised section 8.21.18 (Flexible Host Filter Table Registers - FHFT (0x9000 + 4*n
[n=0...255]; RW); updated note.
• Revised section 22.214.171.124 (MAC Specific Control Register 1 - Page 2, Register 16; bits 9:8).
• Revised table 10-37 (Decision Filter Values).
2.2 April 2013
• Updated title page (Platform Power Efficiency description).
• Revised VPD Area Update Flow description (section 126.96.36.199.2).
• Revised iNVM description (section 3.4).
• Added line loopback information (section 188.8.131.52).
• Revised Acquiring Ownership Over a Shared Resource description (section 4.6.1).
• Revised Releasing Ownership Over a Shared Resource description (section 4.6.2).
• Revised Dr Disable Mode description (section 184.108.40.206).
• Revised Device Rev ID (section 6.2.19).
• Revised Common Firmware Parameters 1 - Offset 0x1 (section 220.127.116.11).
• Updated Compatibility (Word 0x03) bit 11 description (section 6.8.1).
• Updated Setup Options PCIe Function 0 (Word 0x30) bit 5 description (section 18.104.22.168).
• Added PXE VLAN Flash settings (Sections 22.214.171.124 through 126.96.36.199).
• Updated Software Semaphore - SWSM (0x5B50; R/W)
• Removed Firmware Status Register (0x8F0C) entry from Table 8-6.
• Revised note (changed . . . has both F and L flags off to on (section 10.5.7.1).
• Revised Specification for XTAL1 (In); table 11.16.
• Revised Third-Party Magnetics Manufacturers table (section 12.5.3).
• Added Power Delivery Solutions (section 12.7.1).
2.1 November 2012
• Revised table 11.1 - Absolute Maximum Ratings
• Revised section 12.5.3 - Third-Party Magnetics Manufacturers.
• Revised table 12.16 - Absolute Maximum Case Temperature.
• Revised table 12.17 - Thermal Simulation Results for Various Environmental Conditions.
2.0 November 2012
The following sections were revised:
• 1.0 Introduction.
• 3.0 Interconnects.
•6.0 Flash Map.
• 7.0 Inline Functions.
• 8.0 Programming Interface.
• 9.0 PCIe Programming Interface.
• 11.0 Electrical/Mechanical Specification.
• 12.0 Design Considerations.
• 14.0 Diagnostics
• Added new section 13.0 - Thermal Considerations.
1.9 October 2012
• Initial Release (Intel Public).
Introduction—Ethernet Controller I210
Ethernet Controller I210 (I210) is a single port, compact, low power component that
supports GbE designs. The I210 offers a fully-integrated GbE Media Access Control (MAC), Physical
Layer (PHY) port and a SGMII/SerDes port that can be connected to an external PHY. The I210
supports PCI Express* [PCIe v2.1 (2.5GT/s)].
The I210 enables 1000BASE-T implementations using an integrated PHY. It can be used for server
system configurations such as rack mounted or pedestal servers, in an add-on NIC or LAN on
Motherboard (LOM) design. Another possible system configuration is for blade servers as a LOM or
mezzanine card. It can also be used in embedded applications such as switch add-on cards and network
This document provides the external architecture (including device operation, pin descriptions, register
definitions, etc.) for the I210.
This document is a reference for software device driver developers, board designers, test engineers,
and others who may need specific technical or programming information.
1.2 Terminology and Acronyms
Table 1-1. Glossary
1000BASE-BX is the PICMG 3.1 electrical specification for transmitting
1 Gb/s Ethernet or 1 Gb/s fibre channel encoded data over the backplane.
1000BASE-KX is the IEEE802.3ap electrical specification for transmitting
1 Gb/s Ethernet over the backplane.
1000BASE-X over specialty shielded 150 balanced copper jumper cable assemblies as
specified in IEEE 802.3 Clause 39.
1000BASE-T is the specification for 1 Gb/s Ethernet over category 5e twisted pair cables as
defined in IEEE 802.3 clause 40.
AEN Asynchronous Event Notification
BIOS Basic Input/Output System.
Baseboard Management Controller - often used interchangeably with Manageability
BT Bit Time.
CRC Cyclic redundancy check
DCA Direct Cache Access.
DDOFF Dynamic Device Off
