Device description
■
Tri-core processor architecture
■
High-performance programmable Bluetooth
®
mono audio
SoC
■
Low power modes to extend battery life
Applications
■
Qualcomm TrueWireless
™
stereo earbuds
Features
■
Qualified
to Bluetooth v5.2
specification
■
120 MHz Qualcomm
®
Kalimba
™
audio DSP
■
32 MHz Developer Processor
for applications
■
Firmware Processor for system
■
Flexible QSPI flash
programmable platform
■
High-performance 24‑bit audio
interface
■
Digital and analog microphone
interfaces
■
Flexible PIO controller and LED
pins with PWM support
■
Serial interfaces: UART, Bit
Serializer (I²C/SPI), USB 2.0
■
Advanced audio algorithms
■
Active Noise Cancellation:
Hybrid, Feedforward, and
Feedback modes, using Digital
or Analog Mics, enabled using
license keys available from
Qualcomm
®
■
Qualcomm
®
aptX
™
and aptX
HD Audio
■
1 or 2 mic Qualcomm
®
cVc
™
headset speech processing
■
Integrated PMU: Dual SMPS
for system/digital circuits,
Integrated Li-ion battery
charger
■
90-ball 5.6 mm x 5.9 mm x 1.0
mm, 0.5 mm pitch VFBGA
System architecture
XTAL
Bluetooth
Radio
Digital
Audio
Interface
I/O
and
USB
Qualcomm
Kalimba
DSP
Apps
Developer
Processor
Apps
Firmware
Processor
UART/USB
PIO
I²C/SPI
Stereo HQ
ADC
Class-D or
Class-AB
EarPhone
Speaker
Output
LED Driver
with PWM
SMPS
LDOs
Li-Ion
Charger
Line In / Dual
Analog Mic In
Earphone
Battery
LED
DigMic
I²S/PCM
ANC
Flash Memory
For additional information or to submit technical questions, go to https://createpoint.qti.qualcomm.com
Confidential – Qualcomm T
echnologies, Inc. and/or its affiliated companies – May Contain Trade Secrets
NO PUBLIC DISCLOSURE PERMITTED: Please report postings of this document on public servers or websites to DocCtrlAgent@qualcomm.com.
Restricted Distribution: Not to be distributed to anyone who is not an employee of either Qualcomm Technologies International, Ltd. or its affiliated companies
without the express approval of Qualcomm Configuration Management. Distribution to anyone who is not an employee of either Qualcomm Incorporated or its
affiliated companies is subject to applicable confidentiality agreements.
Not to be used, copied, reproduced, or modified in whole or in part, nor its contents revealed in any manner to others without the express written permission of
Qualcomm Technologies International, Ltd.
All Qualcomm products mentioned herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. Kalimba, aptX , and cVc are trademarks of Qualcomm
Technologies International, Ltd., registered in the United States and other countries. Kymera is a trademark of Qualcomm Technologies International, Ltd. Other
product and brand names may be trademarks or registered trademarks of their respective owners.
This technical data may be subject to U.S. and international export, re-export, or transfer ("export") laws. Diversion contrary to U.S. and international law is strictly
prohibited.
Qualcomm Technologies International, Ltd. is a company registered in England and Wales with a registered office at:
Churchill House, Cambridge Business Park, Cowley Road, Cambridge, CB4 0WZ, United Kingdom.
Registered Number: 3665875 | VAT number: GB787433096
©
2019-2020 Qualcomm Technologies, Inc. and/or its subsidiaries. All rights reserved.

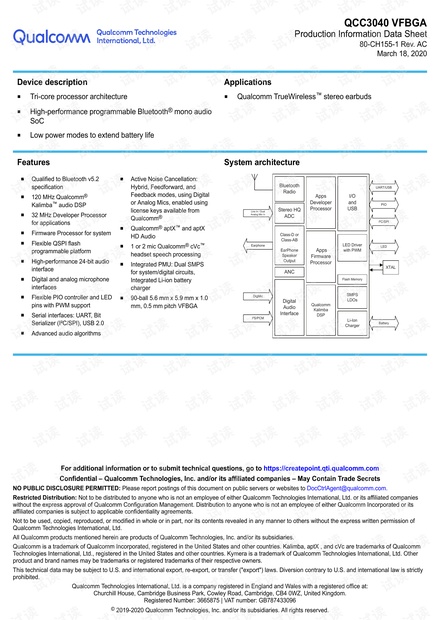

QCC3040 VFBGA
Production Information
Data Sheet
80-CH155-1 Rev. AC
March 18, 2020

QCC3040 VFBGA descripon
QCC3040 VFBGA is a system on-chip (SoC) with:
■
On-chip
Bluetooth
■
Audio and programmable application processor
■
High-performance, analog, and digital audio codecs
■
Class-AB and Class-D earphone speaker driver
■
Advanced power management
■
Li-ion battery charger
■
LED drivers
■
Flexible interfaces, including:
□
I²S input
□
I²C
□
UART
□
PIO
Processors
QCC3040 VFBGA includes an application-dedicated Developer Processor and a system Firmware Processor that
run code from an internal flash memory.
Both processors have tightly coupled memory (TCM) and an on-chip cache for performance while executing from
flash memory. The system Firmware Processor provides functions developed by Qualcomm Technologies
International, Ltd. (QTIL). The Developer Processor provides flexibility to the product designer to customize their
product.
Audio subsystem
The Audio subsystem contains a programmable Kalimba core running Qualcomm
®
Kymera
™
system DSP
architecture framework from read only memory (ROM). A range of audio processing capabilities are provided from
ROM, which are configurable in fully flexible audio graphs.
IDE/Soware Development Tools
QCC3040 VFBGA is driven by a flexible software platform with integrated development environment (IDE) support.
For more information on development tools and the audio development kit (ADK) for the QCC3040 VFBGA, including
information on Bluetooth and other features supported, see CreatePoint.
80-CH155-1 Rev. AC Confidential – Qualcomm Technologies, Inc. and/or its affiliated companies – May Contain Trade Secrets
MA
Y CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
2

Ordering informaon
Device
Package
Order number
Type Size Shipment method
QCC3040 VFBGA
VFBGA 90-ball
(Pb
free)
5.6 mm x 5.9 mm x
1.0 mm 0.5 mm
pitch
Tape and reel QCC-3040-0-CSP90B-TR-01-0
NOTE
Your attention is drawn to QTIL’s Terms of Supply, see http://www
.qualcomm.com/salesterms or please
request a copy), in particular the section covering Product Warranties and Disclaimers. Please note that
the product warranty differs for production, pre-production, and other versions.
Production status minimum order quantity is 4 kpcs.
Supply chain: QTIL's manufacturing policy is to multisource volume products. For further details,
contact your local sales account manager or representative.
QCC3040 VFBGA Development Kit ordering in
formaon
The QCC3040 VFBGA Development Kit includes:
■
A
flexible development board with a wide range of interconnects
■
QCC3040 VFBGA mounted on a plug-in module
TRBI200 is a high-speed universal serial bus (USB) to transaction bus interface that supports high-speed debug and
flash programming, see Related Information.
This development equipment is available from QTIL using the following ordering information:
Description Order number
QCC3040 VFBGA development kit Full Kit: DK-QCC3040-VFBGA90-A-0 /
SODIMM
Only: DB-QCC3040-VFBGA90-A-0
TRBI200 Transaction Bridge Interface High-Speed Debug Adaptor
and Programmer
DK-TRBI200-CE684-1
NOTE
TRBI200 use is not mandatory for flash programming or other manufacturing operations. These actions
are
possible using direct USB connection to the QCC3040 VFBGA USB device interface.
Related Information
“Transaction bridge” on page 56
QTIL contacts
General information http://www.qualcomm.com
Sales information qcsales@qti.qualcomm.com
Compliance and standards product.compliance@qti.qualcomm.com
80-CH155-1 Rev. AC Confidential – Qualcomm Technologies, Inc. and/or its affiliated companies – May Contain Trade Secrets
MA
Y CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
3

QCC3040 VFBGA device details
Audio subsystem
■
32‑bit
Kalimba audio digital signal processor (DSP) core
with flexible clocking from 2 MHz to 120 MHz to enable
optimization of performance vs. power consumption
■
DSP executes code from ROM
■
112 KB program random access memory (RAM)
■
448 KB data RAM
■
6 Mb ROM
Application subsystem
■
Dual-core application subsystem 32 MHz operation
■
32‑bit Firmware Processor (reserved for system use)
executes:
□
Bluetooth upper stack
□
Profiles
□
House-keeping code
■
32‑bit Developer Processor executes:
□
Developer applications
■
32 Mb flash memory
■
On-chip caches per core enable optimized performance
and power consumption
Bluetooth subsystem
■
Qualified to Bluetooth v5.2 specification including 2 Mbps
Bluetooth Low Energy
■
Single ended antenna connection with on-chip balun and
Tx/Rx switch
■
Bluetooth, Bluetooth Low Energy, and mixed topologies
supported
■
Class 1 support
Li-ion battery charger
■
Integrated
battery charger supporting up to 200 mA charge
current
■
Variable float (or termination) voltage adjustable in 50 mV
steps from 3.65 V to 4.4 V
■
Thermal monitoring and management are available in
application software
■
Pre-charge to fast charge transition configurable at 2.5 V,
2.9 V, 3.0 V, and 3.1 V
Power management
■
Integrated power management unit (PMU) to minimize
external components
■
QCC3040 VFBGA runs directly from a Li-ion, USB, or
external supply (2.8 V to 6.5 V)
■
Auto-switching between battery and USB (or other)
charging source
■
Power islands employed to optimize power consumption
for variety of use-cases
■
Dual switch-mode power supply (SMPS):
□
Automatic mode selection to minimize power
consumption
□
1.8 V SMPS generates power for both the device and
off-chip circuits
□
Dedicated digital SMPS (output voltage changes
automatically to minimize device power consumption)
80-CH155-1 Rev. AC Confidential – Qualcomm Technologies, Inc. and/or its affiliated companies – May Contain Trade Secrets
MA
Y CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
4

Audio engine and digital audio interfaces
■
1
x unidirectional 24‑bit inter-integrated circuit sound (I²S)
interface
■
Mono analog output configurable as differential Class-AB
earphone speaker output or differential high efficiency
Class-D output:
□
Class-D signal-to-noise ratio (SNR): 99.3 dBA typ.
□
Class-D total harmonic distortion plus noise (THD
+N): 93.5 dB typ.
□
Class-AB SNR: 100.9 dBA typ.
□
Class-AB THD+N: 93.5 dB typ.
■
Dual analog inputs configurable as single ended line inputs
or, unbalanced or balanced analog microphone inputs:
□
SNR single-ended: 101.1 dBA typ.
□
THD+N single-ended: 85.9 dB typ.
■
1 microphone bias (single bias shared by the two
channels):
□
Crosstalk attenuation between two inputs using
recommended application circuit: 80 dB typ.
■
Digital microphone inputs with capability to interface up to
8 digital microphones
■
Both analog-to-digital converter (ADC)s and the digital-to-
analog converter (DAC) support sample rates of 8 kHz,
16 kHz, 32 kHz, 44.1 kHz, 48 kHz, 96 kHz. The DAC also
supports 192 kHz and 384 kHz.
Peripherals and physical interfaces
■
A
universal asynchronous receiver transmitter (UART)
interface
■
2 x Bit Serializers (programmable serial peripheral
interface (SPI) and inter-integrated circuit interface (I²C)
hardware accelerator)
■
1 x USB interface:
□
A full speed USB (USB-FS) Device (12 Mbps)
– USB interface includes ESD protection to
IEC-61000-4-2 (device level)
■
Internal NOR flash interface
□
Encryption to protect developer code and data
□
Encryption programmable with a 128‑bit security key of
original equipment manufacturer (OEM) choice stored in
on-chip one-time programmable (OTP) memory
■
Up to 22 programmable input/output (PIO) and 5 open
drain/digital input light-emitting diode (LED) pads with
pulse width modulation (PWM)
Package and compliance
■
90-ball 5.6 mm x 5.9 mm x 1.0 mm, 0.5 mm pitch VFBGA
■
Green (restriction of hazardous substances (RoHS)
compliant, and no antimony or halogenated flame
retardants)
QCC3040 VFBGA Data Sheet QCC3040 VFBGA device details
80-CH155-1 Rev. AC Confidential – Qualcomm Technologies, Inc. and/or its affiliated companies – May Contain Trade Secrets
MA
Y CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
5
