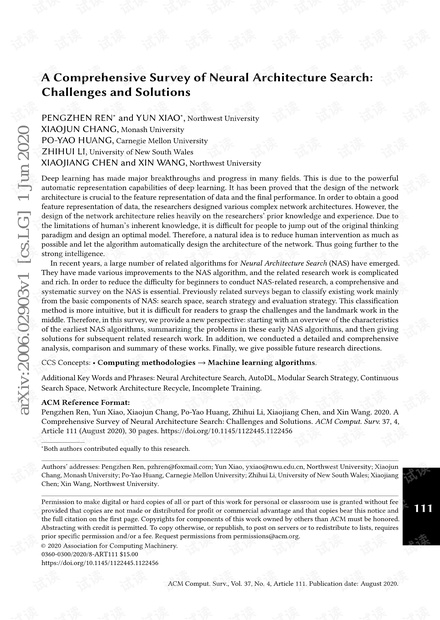

A Comprehensive Survey of Neural Architecture Search:

Challenges and Solutions

PENGZHEN REN

∗

and YUN XIAO

∗

, Northwest University

XIAOJUN CHANG, Monash University

PO-YAO HUANG, Carnegie Mellon University

ZHIHUI LI, University of New South Wales

XIAOJIANG CHEN and XIN WANG, Northwest University

Deep learning has made major breakthroughs and progress in many elds. This is due to the powerful

automatic representation capabilities of deep learning. It has been proved that the design of the network

architecture is crucial to the feature representation of data and the nal performance. In order to obtain a good

feature representation of data, the researchers designed various complex network architectures. However, the

design of the network architecture relies heavily on the researchers’ prior knowledge and experience. Due to

the limitations of human’s inherent knowledge, it is dicult for people to jump out of the original thinking

paradigm and design an optimal model. Therefore, a natural idea is to reduce human intervention as much as

possible and let the algorithm automatically design the architecture of the network. Thus going further to the

strong intelligence.

In recent years, a large number of related algorithms for Neural Architecture Search (NAS) have emerged.

They have made various improvements to the NAS algorithm, and the related research work is complicated

and rich. In order to reduce the diculty for beginners to conduct NAS-related research, a comprehensive and

systematic survey on the NAS is essential. Previously related surveys began to classify existing work mainly

from the basic components of NAS: search space, search strategy and evaluation strategy. This classication

method is more intuitive, but it is dicult for readers to grasp the challenges and the landmark work in the

middle. Therefore, in this survey, we provide a new perspective: starting with an overview of the characteristics

of the earliest NAS algorithms, summarizing the problems in these early NAS algorithms, and then giving

solutions for subsequent related research work. In addition, we conducted a detailed and comprehensive

analysis, comparison and summary of these works. Finally, we give possible future research directions.

CCS Concepts: • Computing methodologies → Machine learning algorithms.

Additional Key Words and Phrases: Neural Architecture Search, AutoDL, Modular Search Strategy, Continuous

Search Space, Network Architecture Recycle, Incomplete Training.

ACM Reference Format:

Pengzhen Ren, Yun Xiao, Xiaojun Chang, Po-Yao Huang, Zhihui Li, Xiaojiang Chen, and Xin Wang. 2020. A

Comprehensive Survey of Neural Architecture Search: Challenges and Solutions. ACM Comput. Surv. 37, 4,

Article 111 (August 2020), 30 pages. https://doi.org/10.1145/1122445.1122456

∗

Both authors contributed equally to this research.

Authors’ addresses: Pengzhen Ren, pzhren@foxmail.com; Yun Xiao, yxiao@nwu.edu.cn, Northwest University; Xiaojun

Chang, Monash University; Po-Yao Huang, Carnegie Mellon University; Zhihui Li, University of New South Wales; Xiaojiang

Chen; Xin Wang, Northwest University.

Permission to make digital or hard copies of all or part of this work for personal or classroom use is granted without fee

provided that copies are not made or distributed for prot or commercial advantage and that copies bear this notice and

the full citation on the rst page. Copyrights for components of this work owned by others than ACM must be honored.

Abstracting with credit is permitted. To copy otherwise, or republish, to post on servers or to redistribute to lists, requires

prior specic permission and/or a fee. Request permissions from permissions@acm.org.

0360-0300/2020/8-ART111 $15.00

https://doi.org/10.1145/1122445.1122456

ACM Comput. Surv., Vol. 37, No. 4, Article 111. Publication date: August 2020.

arXiv:2006.02903v1 [cs.LG] 1 Jun 2020

111:2 Ren and Chang, et al.

1 INTRODUCTION

Dlearning has already demonstrated strong learning capabilities in many elds: machine translation

[

–

], image recognition [

] and object detection [

–

]. This is mainly due to the powerful

automatic feature extraction capabilities of deep learning for unstructured data. Deep learning has

transformed the traditional way of manually designing features [

] into automatic extraction

[

]. This allows researchers to focus on the design of neural architecture [

However, the design of the neural architecture relies heavily on the researchers’ prior knowledge

and experience, which makes it dicult for beginners to make reasonable modications to the

network architecture according to their actual needs. In addition, human’s existing prior knowledge

and xed thinking paradigm are likely to limit the discovery of a new network architecture to a

certain extent.

As a result, Neural architecture search (NAS) came into being. NAS aims to design a network

architecture with the best performance using limited computing resources in an automated way with

as little human intervention as possible. The work of NAS-RL [

] and MetaQNN [

] is considered

a pioneering work of NAS. The network architecture they obtained using reinforcement learning (RL)

methods reached the state-of-the-art classication accuracy on the image classication task. This

shows that the idea of automated network architecture design is feasible. Subsequently, the work of

Large-scale Evolution [

] once again veried the feasibility of this idea, which uses evolutionary

learning to achieve similar results. However, they have consumed hundreds of GPU days or even

more computing resources in their respective methods. This huge amount of calculation is almost

catastrophic for ordinary researchers. Therefore, a lot of work has emerged on how to reduce the

amount of calculation and accelerate the search of the network architecture [18–20, 48, 49, 52, 84,

105

]. With the improvement of NAS search eciency, NAS is also quickly applied in the elds of

object detection [

111

118

], semantic segmentation [

120

], adversarial learning [

architectural scaling [

114

122

124

], multi-objective optimization [

115

125

], platform-aware

[

103

117

], data augmentation [

121

123

] and so on. In addition, there is some work to consider

how to strike a balance between performance and eciency [

116

119

]. Although NAS-related

research has been so abundant, it is still dicult to compare and reproduce NAS methods [

127

Because dierent NAS methods have many dierences in search space, hyperparameters, tricks,

etc., some work is also devoted to providing a unied evaluation platform for popular NAS methods

[78, 126].

With the deepening and rapid development of NAS-related research, some methods previously

accepted by researchers have been proved to be imperfect by new research. And soon there was

an improved solution. For example, early NAS trained each candidate network architecture from

scratch during the architecture search phase, leading to a surge in computation [

]. ENAS [

]

proposes to accelerate the process of architecture search by using a parameter sharing strategy. This

strategy avoids training each subnet from scratch, but forces all subnets to share weights, thereby

greatly reducing the time to obtain the best performing subnet from a large number of candidate

networks. Due to the superiority of ENAS in search eciency, the weight sharing strategy was

quickly recognized by a large number of researchers [

]. However, soon new research found

that the widely accepted weight sharing strategy is likely to lead to inaccurate ranking of candidate

architectures [

]. This will make it dicult for the NAS to select the optimal network architecture

from a large number of candidate architectures, thereby further deteriorating the performance of

the nally searched network architecture. Shortly afterwards, DNA [

] modularized the large

search space of NAS into blocks, so that the candidate architecture was fully trained to reduce the

representation shift problem caused by the weight sharing. In addition, GDAS-NSAS [

] proposes a

Novelty Search based Architecture Selection (NSAS) loss function to solve the problem of multi-model

ACM Comput. Surv., Vol. 37, No. 4, Article 111. Publication date: August 2020.

A Comprehensive Survey of Neural Architecture Search: Challenges and Solutions 111:3

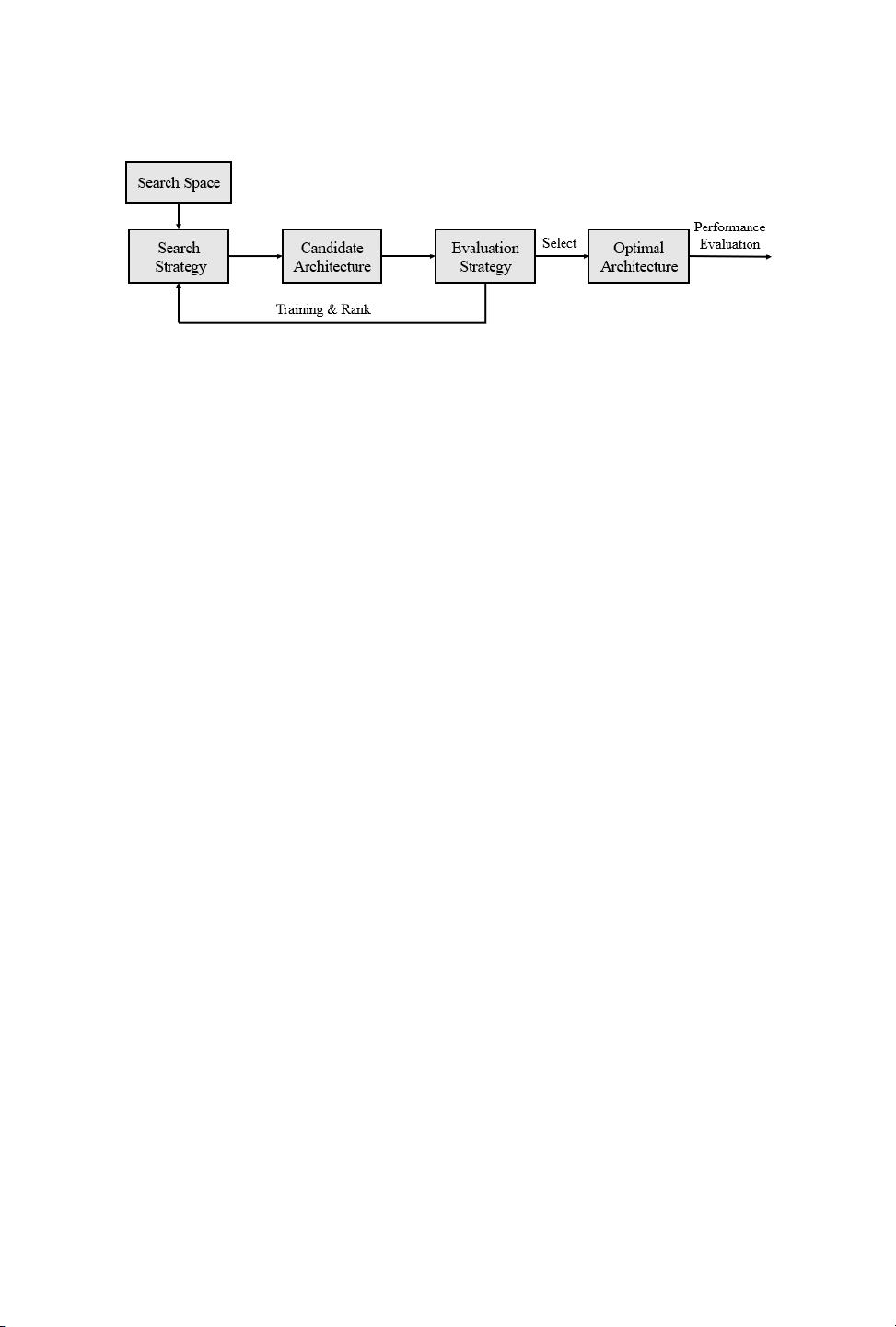

Fig. 1. The general framework of NAS. NAS generally starts with a set of predefined operation sets, and uses

search strategies to obtain a large number of candidate network architectures based on the search space

formed by the operation sets. The candidate network architecture is trained and ranked. Then, the search

strategy is adjusted according to the ranking information of the candidate network architecture, thereby

further obtaining a set of new candidate network architectures. When the search is terminated, the most

promising network architecture is used as the final optimal network architecture, which is used for the final

performance evaluation.

forgetting (when weight sharing is used to sequentially train a new network architecture, the

performance of the previous network architecture is reduced) caused by weight sharing during the

super network training process.

Similar research clues are very common in the rapidly developing NAS research eld, so a

comprehensive and systematic survey based on challenges and solutions is very useful for NAS

research. Previous related surveys classied existing work mainly according to the basic components

of NAS: search space, search strategy and evaluation strategy [

]. This classication method is

more intuitive, but it is not conducive to readers to capture the research clues. Therefore, in this

survey, we will rst summarize the characteristics and corresponding challenges of the early NAS

methods. Based on these challenges, we have summarized and categorized existing research in

order to show readers a comprehensive and systematic overview based on challenges and solutions.

Finally, we will compare the performance of existing research work, and give possible future

research directions and some thoughts.

2 CHARACTERISTICS OF EARLY NAS

In this section, we summarize the general framework of early NAS methods, their characteristics,

and the challenges facing subsequent NAS research.

We summarize the general framework of NAS as shown in Fig.1. NAS usually starts with a

set of predened operation sets and uses a search strategy to obtain a large number of candidate

network architectures based on the search space formed by these operation sets. Then train the

candidate network architecture on the training set and rank them according to their accuracy

on the validation set. The ranking information of the candidate network architecture is used as

feedback information to adjust the search strategy to further obtain a set of new candidate network

architectures. When the termination condition is reached, the search will be terminated to select

the best network architecture. The network architecture performs performance evaluation on the

test set.

Early NAS also roughly followed the above process [

]. The idea of NAS-RL [

]

comes from such a simple observation that the architecture of a neural network can be described

as a variable-length string. Therefore, a very natural idea is that we can use RNN as a controller to

generate such a string, and then use RL to optimize the controller, and nally get a satisfactory

network architecture. MetaQNN [

] regards the selection process of the network architecture

ACM Comput. Surv., Vol. 37, No. 4, Article 111. Publication date: August 2020.

111:4 Ren and Chang, et al.

as a Markov decision process, and uses Q-learning to record rewards, so as to obtain the optimal

network architecture. Large-scale Evolution [

] aims to automatically learn an optimal network

architecture using evolutionary algorithms (EA) while reducing human intervention as much as

possible. It uses the simplest network structure to initialize a large population, and obtains the best

network architecture by reproduce, mutating, and selecting the population. GeNet [

] also used

EA, it proposes a new neural network architecture coding scheme, which represents the network

architecture as a xed-length binary string. It randomly initializes a group of individuals, uses a

predened set of genetic operations to modify the binary string to generate new individuals, and

nally selects competitive individuals as the nal network architecture.

These early NAS made the automatically generated network architecture a reality. In order to

understand the reasons restricting the widespread use of early NAS, we summarized the common

characteristics existing in early NAS work from the perspective of a latecomer as follows:

• Global search strategy.

It requires the NAS to use a search strategy to search all necessary

components of the network architecture. This means that NAS needs to nd an optimal

network architecture within a huge search space. Obviously, the larger the search space, the

higher the corresponding search cost.

• Discrete search space.

It regards the dierences between dierent network architectures

as a limited set of basic operations, that is, by discretely modifying an operation to change

the network architecture. This means that we cannot use the gradient strategy to quickly

adjust the network architecture.

• Search from scratch.

The model is built from scratch until the nal network architecture is

generated. Obviously, this method wastes the existing network architecture design experience

and cannot utilize the existing excellent network architecture.

• Fully trained.

It requires training each candidate network architecture from scratch to

convergence. We know that there is a similar network structure between the subsequent

network architecture and the previous network architecture, as well as between the network

architectures at the same stage. Therefore, training each candidate network architecture from

scratch obviously does not fully utilize this relationship. In addition, we only need to obtain

the relative performance ranking of the candidate architecture. Whether it is necessary to

train each candidate architecture to convergence is also a question worth considering.

The search space is determined by the predened operation set and the hyperparameters of

the network architecture (for example: an architectural template, connection method, the number

of channels of the convolutional layer used for feature extraction in the initial stage, etc.). These

parameters dene which network architectures can be searched by the NAS. Fig.2 shows examples

of two common global search spaces with a chain structure in early NAS work.

is an operation in

the candidate operation set and the

-th operation in the chain structure. The feature map generated

is represented as

(i)

. The input goes through a series of operations to get the nal output.

Fig.2 (left): The simplest example of a chain structure MetaQNN [

]. At this point, for any feature

map z

(i)

, there is only one input node z

(i−1)

, and

(i)

= o

{(z

(i−1)

)}. (1)

Fig.2 (right): The example after adding skip connections [

]. At this time, there can be

multiple inputs for any feature map z

(i)

, and

(i)

= o

(i)

n

(i−1)

⊙

(k)

|α

k, i

= 1, k < i − 1

o

, (2)

where

⊙

can be a sum operation or a merge operation. For example,

⊙

is a merge operation in

NAS-RL [

], and

⊙

is a sum operation in GeNet [

]. It should be pointed out that NASNet [

]

ACM Comput. Surv., Vol. 37, No. 4, Article 111. Publication date: August 2020.

A Comprehensive Survey of Neural Architecture Search: Challenges and Solutions 111:5

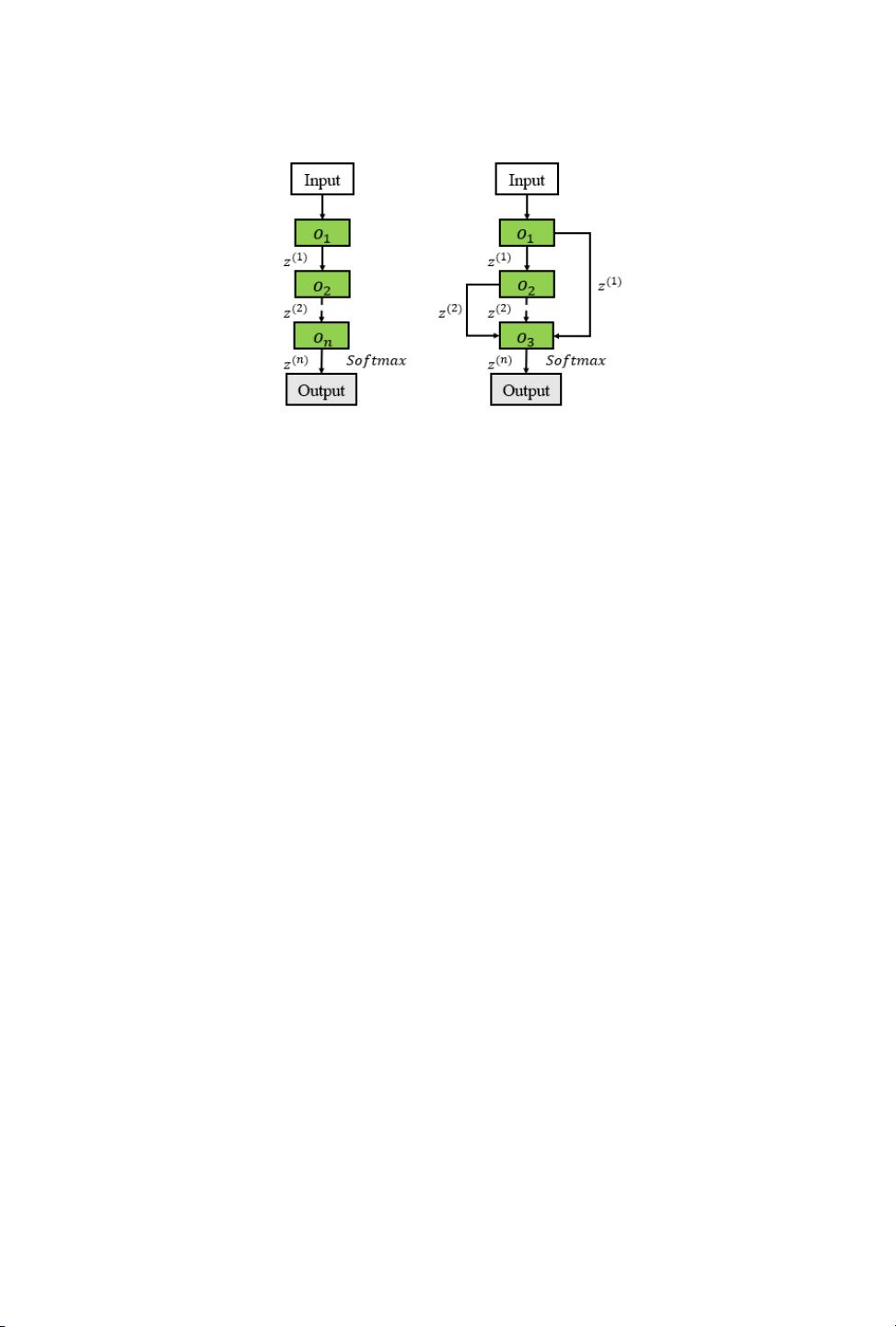

Fig. 2. Two common global search spaces with a chain structure in early NAS work. Le: The simplest example

of a chain structure. Right: The example aer adding skip connections.

is an operation in the candidate set

of operations and the

-th operation in the chain structure. The feature map generated by

is represented as

(i)

. The input goes through a series of operations to get the final output.

considered these two operations in the experiment, but the experimental results show that the sum

operation is better than the merge operation. Therefore, since then, a lot of work has taken the

summation operation as the connection method of the feature map obtained between dierent

branch operations [

]. Similar to the chain structure, Mnasnet [

] suggests searching for a

network architecture composed of multiple segments connected in sequence, each segment having

its own repeating structure.

In addition, in the early NAS, searching from scratch was a commonly adopted search strategy.

NAS-RL [

] expresses the network architecture as a string of variable length, which is generated

by RNN as a controller. Then generate the corresponding network architecture according to the

string, and then use reinforcement learning as the corresponding search strategy to adjust the

network architecture search. MetaQNN [

] considers training an agent to sequentially select the

layer structure of the neural network on the search space constructed by the predened operation

set. It regards the layer selection process as a Markov decision process, and uses Q-learning as

a search strategy to adjust the agent’s selection behavior. Similar to NAS-RL [

], GeNet [

]

also adopts the idea of encoding the network structure. The dierence is that in GeNet [

], the

network architecture representation is regarded as a string of xed-length binary codes. This binary

code is regarded as the DNA of the network architecture. The population is initialized randomly,

and then use evolutionary learning to reproduce, mutate and select the population, and iterate to

select the best individual. It can be seen from the above analysis that these methods do not use the

existing excellent articially designed network architecture, but search the network architecture

from scratch in their respective methods. More simply, Large-scale Evolution [

] only uses a

single-layer model without convolution as the starting point for individual evolution. Then use

evolutionary learning methods to evolve the population, and then select the most competitive

individuals in the population. We take Large-scale Evolution [

] as an example and show an

example of searching from scratch in Fig.3.

The common characteristics of these early NAS work are also the collective challenges faced

by the automatic generation of network architecture. Based on the above challenges, we will

summarize the solutions in the subsequent NAS-related research work in Section 3.

ACM Comput. Surv., Vol. 37, No. 4, Article 111. Publication date: August 2020.

剩余29页未读，继续阅读

syp_net

粉丝: 147
资源: 1197

会员权益专享

最新《神经架构搜索NAS》（来自西北大学）

评论0

会员权益专享

最新资源

最新《神经架构搜索NAS》（来自西北大学）

评论0

详细介绍一下NAS-FPN的网络架构和设计思想

浅议DAS、NAS、SAN三种存储架构

详细说说NAS的搜索空间都有哪些

windows挂载nas盘

卷积神经网络 前沿研究有哪些

群晖nas zabbix模板

lte nas 24.301

linux搭建nas系统

NAS内存满了怎么办

nas文件存储安装部署

5g nas消息怎么解析

NAS安全协议学习笔记

windows server 2019搭建nas

linux挂载nas

家庭NAS包含啥功能

请解释什么是SAN和NAS

2019年整理DAS、NAS和SAN存储方案的比.doc

怎样安装 NAS 服务器

nas-dsm文档手册

nas相关存储只是介绍

会员权益专享

最新资源

卷积神经网络前沿研究有哪些
