Introduction to MIPI DSI
Display Serial Interface
21 September 2005
DWG Display Working Group
Dick Lawrence, Chair

Legal Disclaimer
The material contained herein is not a license, either expressly or impliedly, to any IPR
owned or controlled by any of the authors or developers of this material or MIPI.
The material contained herein is provided on an “AS IS” basis and to the maximum
extent permitted by applicable law, this material is provided AS IS AND WITH ALL
FAULTS, and the authors and developers of this material and MIPI hereby disclaim
all other warranties and conditions, either express, implied or statutory, including,
but not limited to, any (if any) implied warranties, duties or conditions of
merchantability, of fitness for a particular purpose, of accuracy or completeness of
responses, of results, of workmanlike effort, of lack of viruses, and of lack of
negligence. ALSO, THERE IS NO WARRANTY OR CONDITION OF TITLE, QUIET
ENJOYMENT, QUIET POSSESSION, CORRESPONDENCE TO DESCRIPTION OR
NON-INFRINGEMENT WITH REGARD TO THIS MATERIAL.
IN NO EVENT WILL ANY AUTHOR OR DEVELOPER OF THIS MATERIAL OR MIPI BE
LIABLE TO ANY OTHER PARTY FOR THE COST OF PROCURING SUBSTITUTE
GOODS OR SERVICES, LOST PROFITS, LOSS OF USE, LOSS OF DATA, OR ANY
INCIDENTAL, CONSEQUENTIAL, DIRECT, INDIRECT, OR SPECIAL DAMAGES
WHETHER UNDER CONTRACT, TORT, WARRANTY, OR OTHERWISE, ARISING IN
ANY WAY OUT OF THIS OR ANY OTHER AGREEMENT RELATING TO THIS
MATERIAL, WHETHER OR NOT SUCH PARTY HAD ADVANCE NOTICE OF THE
POSSIBILITY OF SUCH DAMAGES.
MIPI Alliance Confidential

A Very Short Introduction:
Display Architectures
Two Basic Architectures
Video-mode displays (example: DPI, DPI-2)
•
Display Bus traffic is streaming pixels, directly to LCD panel
•
Frame Buffer and Timing Control is in the host processor
Command-mode displays (example: DBI, DBI-2)
•
Frame Buffer, display Timing Controller on Display Panel
•
Display Bus traffic is commands and updates to frame buffer (e.g. video)
Display Command Set (DCS)
•
Standardized set of commands for Command-Mode displays
•
Requires both READ and WRITE cycles to display registers, frame buffer
•
Power control, read Descriptor Block, more

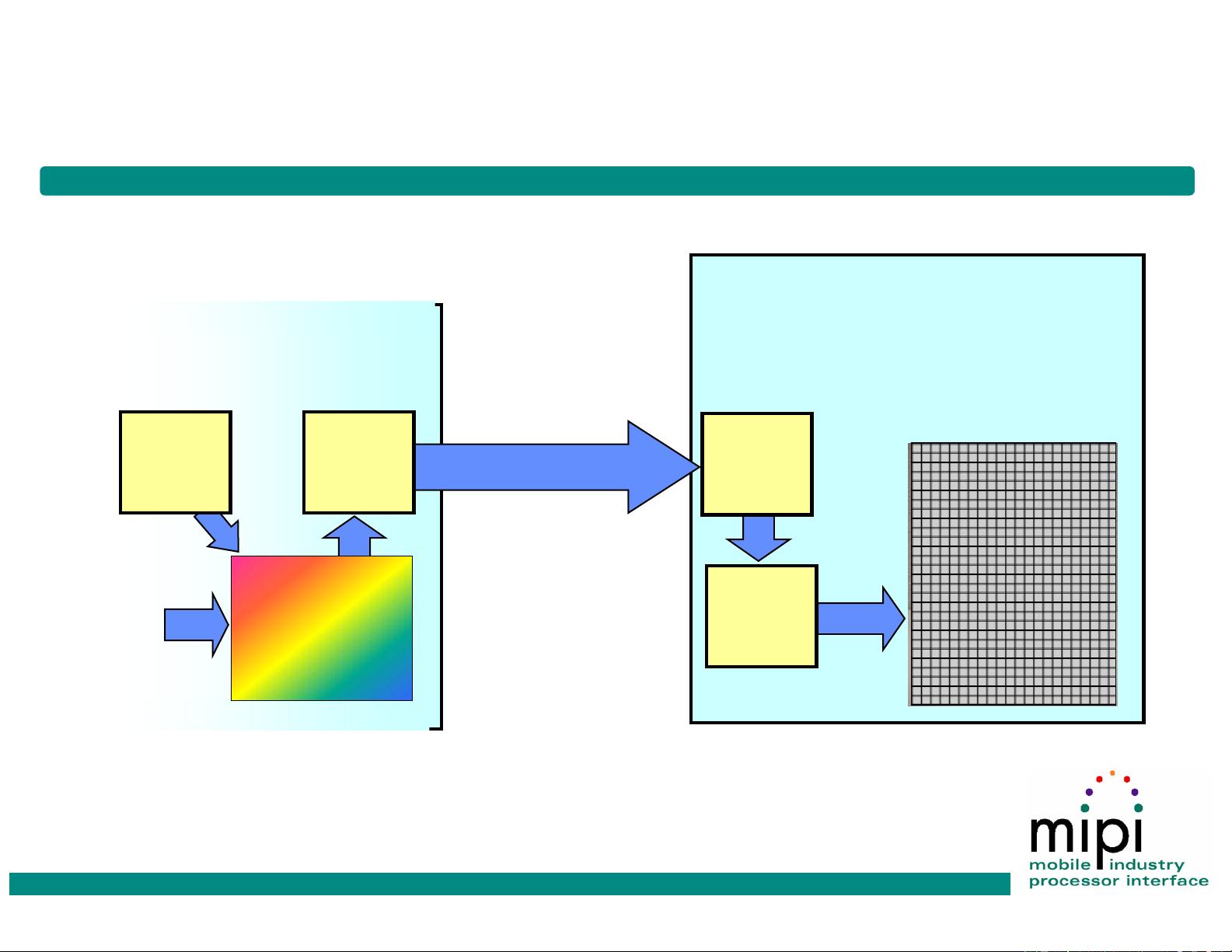

Display Architecture – Video Mode
Display
Driver
Host
Processor
Display Panel
LCD
Display
Bus
Interface
Bus
Interface
Color
Frame
Buffer
Display Refresh
Timing
Control
Update
Frame
Buffer

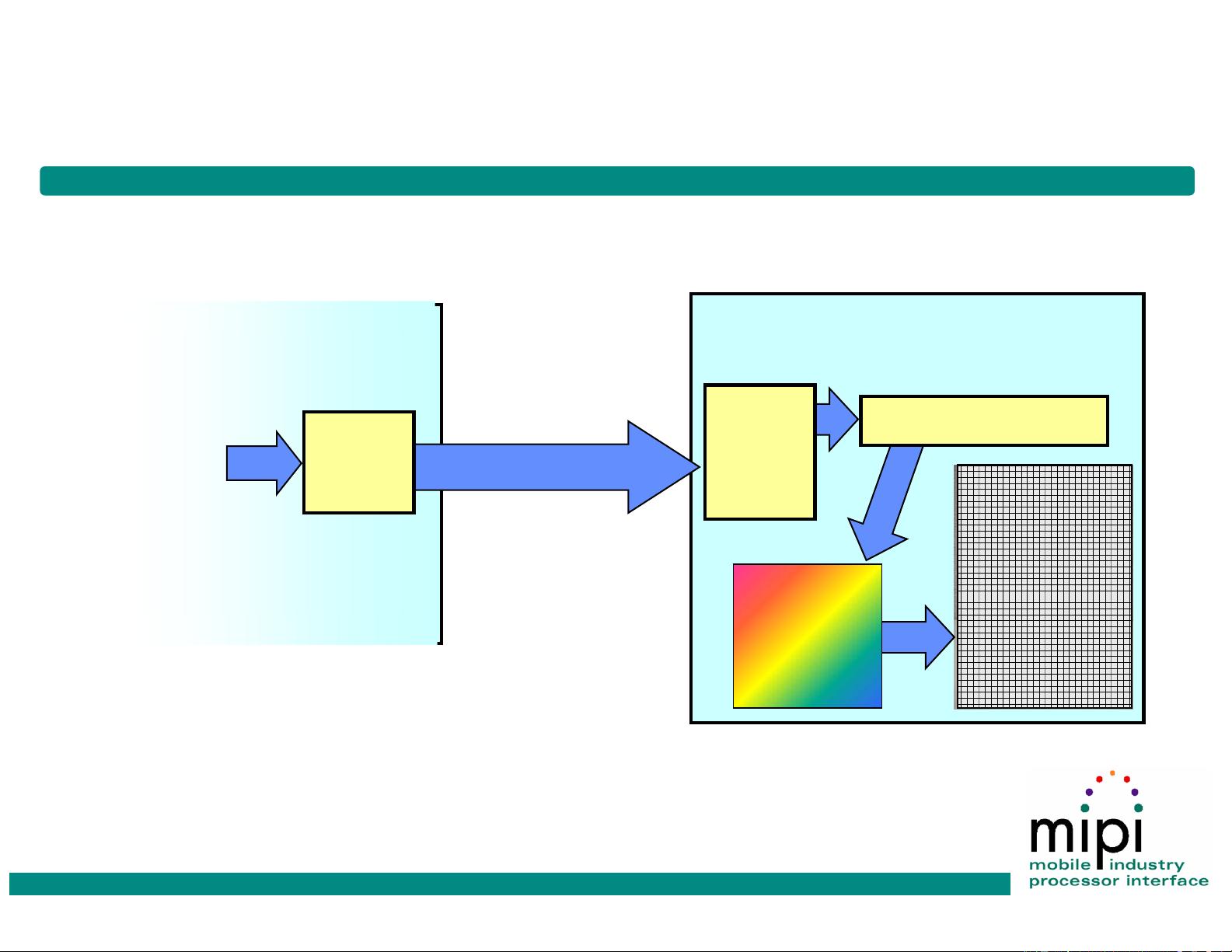

Display Architecture – Command Mode
Host
Processor
Display Panel
LCD
Display
Bus
Interface
Color
Frame
Buffer
Update
Data
Commands &
Image Update
Data
Bus
Interface
Display Controller
