POWER DRIVER FOR STEPPER MOTORS INTEGRATED CIRCUITS
TRINAMIC Motion Control GmbH & Co. KG
Hamburg, Germany

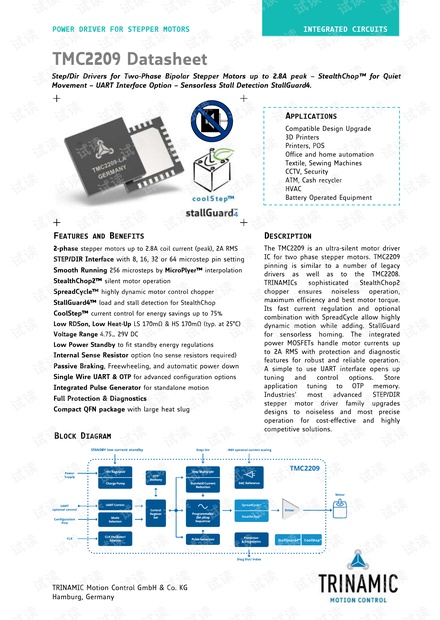

TMC2209 Datasheet
APPLICATIONS
Compatible Design Upgrade
3D Printers
Printers, POS
Office and home automation
Textile, Sewing Machines
CCTV, Security
ATM, Cash recycler
HVAC
Battery Operated Equipment
FEATURES AND BENEFITS
2-phase stepper motors up to 2.8A coil current (peak), 2A RMS
STEP/DIR Interface with 8, 16, 32 or 64 microstep pin setting
Smooth Running 256 microsteps by MicroPlyer™ interpolation
StealthChop2™ silent motor operation
SpreadCycle™ highly dynamic motor control chopper
StallGuard4™ load and stall detection for StealthChop
CoolStep™ current control for energy savings up to 75%
Low RDSon, Low Heat-Up LS 170mΩ & HS 170mΩ (typ. at 25°C)
Voltage Range 4.75… 29V DC
Low Power Standby to fit standby energy regulations
Internal Sense Resistor option (no sense resistors required)
Passive Braking, Freewheeling, and automatic power down
Single Wire UART & OTP for advanced configuration options
Integrated Pulse Generator for standalone motion
Full Protection & Diagnostics
Compact QFN package with large heat slug
DESCRIPTION
The TMC2209 is an ultra-silent motor driver
IC for two phase stepper motors. TMC2209
pinning is similar to a number of legacy
drivers as well as to the TMC2208.
TRINAMICs sophisticated StealthChop2
chopper ensures noiseless operation,
maximum efficiency and best motor torque.
Its fast current regulation and optional
combination with SpreadCycle allow highly
dynamic motion while adding. StallGuard
for sensorless homing. The integrated
power MOSFETs handle motor currents up
to 2A RMS with protection and diagnostic
features for robust and reliable operation.
A simple to use UART interface opens up
tuning and control options. Store
application tuning to OTP memory.
Industries’ most advanced STEP/DIR
stepper motor driver family upgrades
designs to noiseless and most precise
operation for cost-effective and highly
competitive solutions.
Step/Dir Drivers for Two-Phase Bipolar Stepper Motors up to 2.8A peak – StealthChop™ for Quiet
Movement – UART Interface Option – Sensorless Stall Detection StallGuard4.

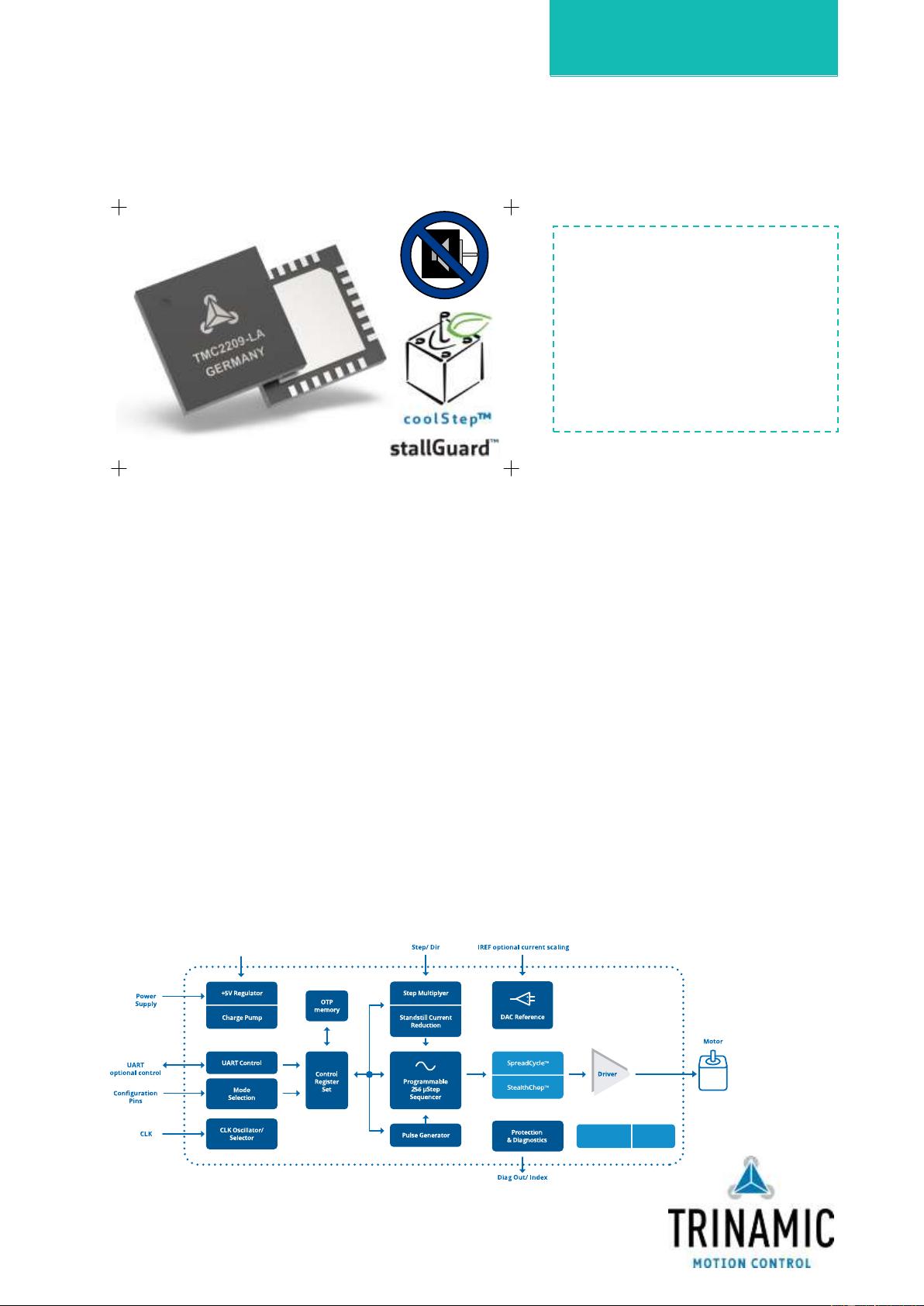

BLOCK DIAGRAM
4

TMC2209 DATASHEET (Rev. 1.04 / 2020-FEB-19) 2
www.trinamic.com
APPLICATION EXAMPLES: SIMPLE SOLUTIONS – HIGHLY EFFECTIVE
The TMC22xx family scores with power density, integrated power MOSFETs, smooth and quiet
operation, and a congenial simplicity. The TMC2209 covers a wide spectrum of applications from
battery systems to embedded applications with up to 2A motor current per coil. TRINAMICs unique
chopper modes SpreadCycle and StealthChop2 optimize drive performance. StealthChop reduces motor
noise to the point of silence at low velocities. Standby current reduction keeps costs for power
dissipation and cooling down. Extensive support enables rapid design cycles and fast time-to-market
with competitive products.
STANDALONE REPLACEMENT FOR LEGACY STEPPER DRIVER
S/D
N
S
0A+
0A-
0B+
TMC22xx
0B-
ERROR, INDEX
S/D
N
S
0A+
0A-
0B+
TMC22xx
0B-
UART
CPU
High-Level
Interface

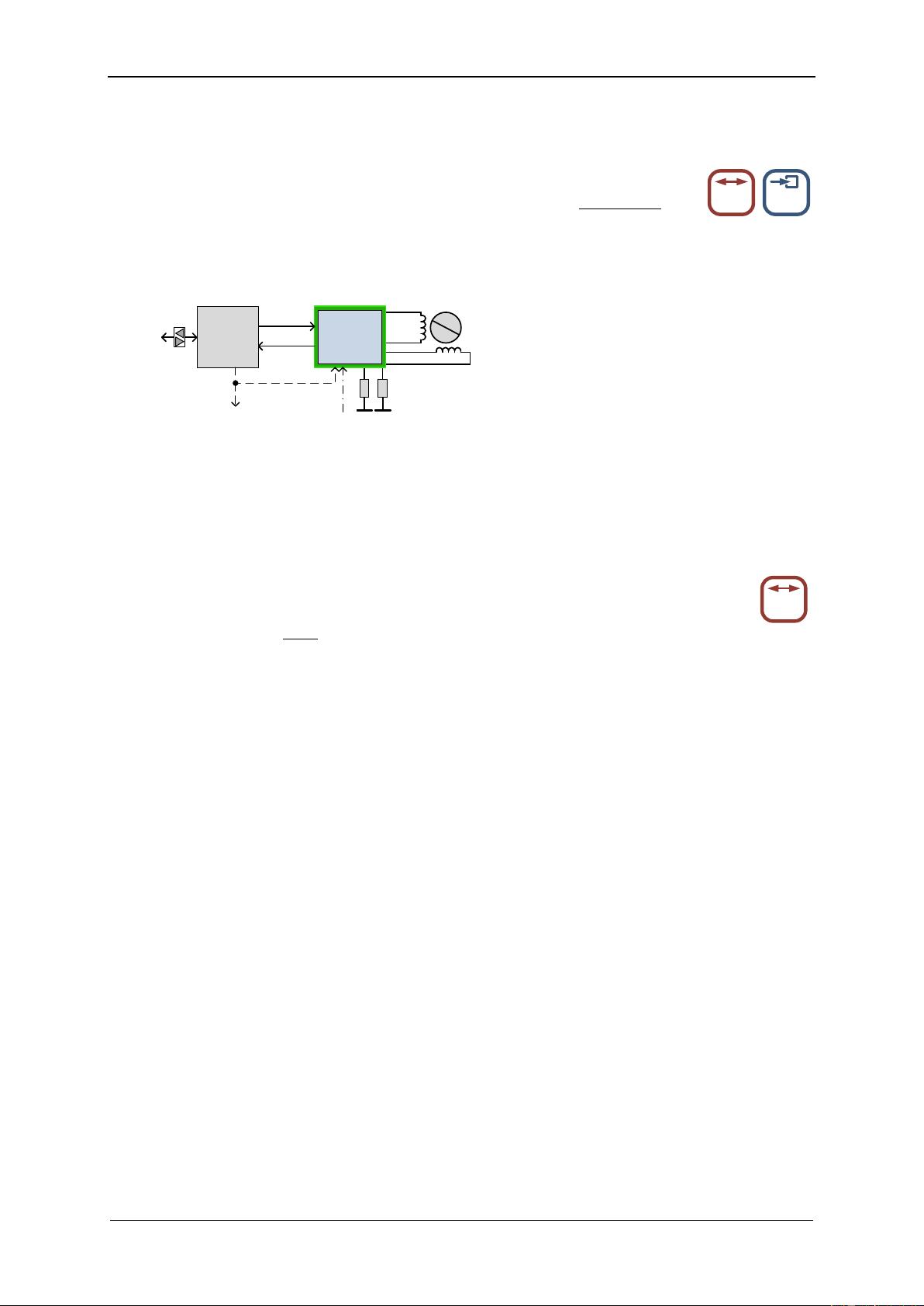

UART INTERFACE FOR FULL DIAGNOSTICS AND CONTROL
Sense Resistors may be omitted

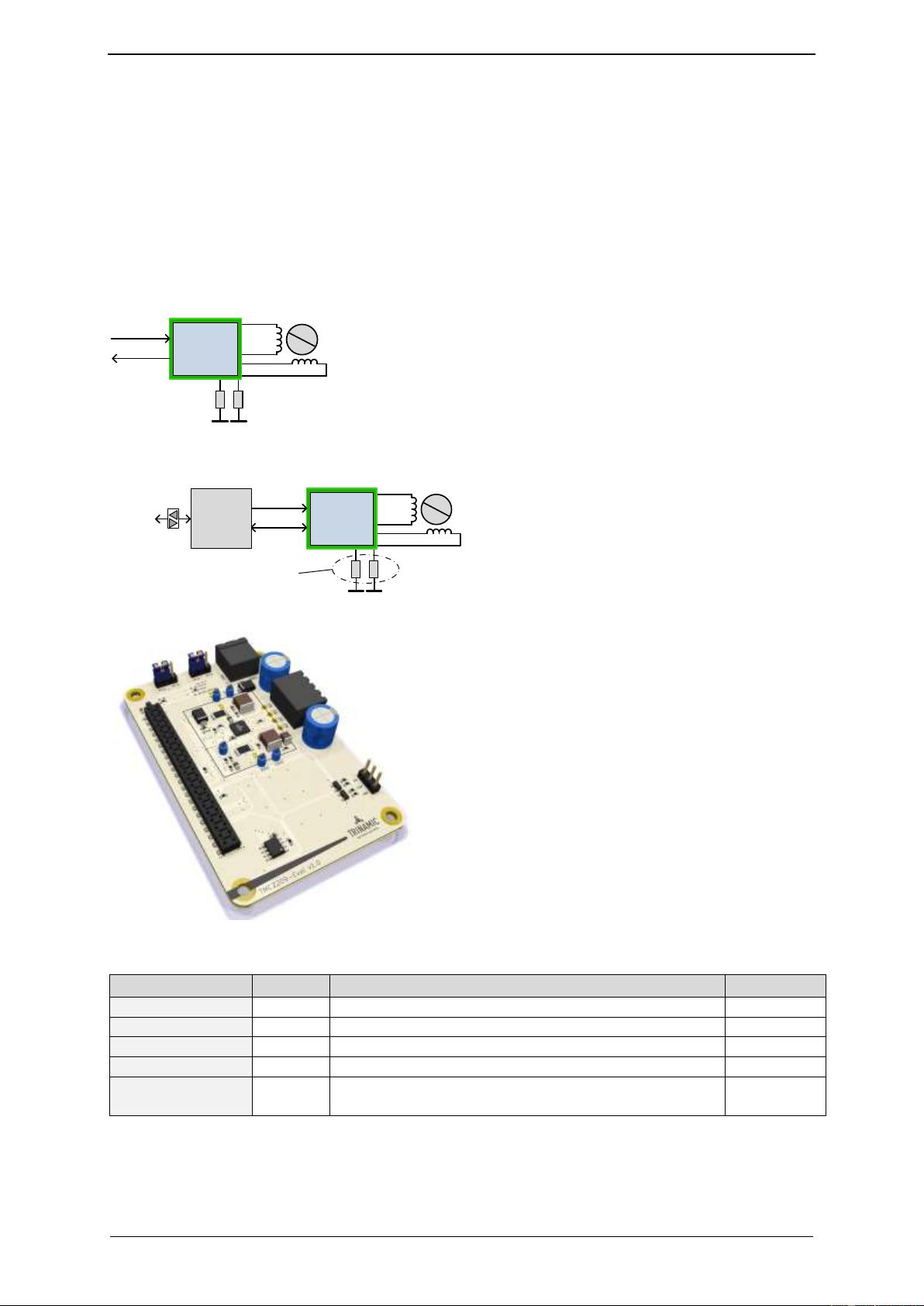

ORDER CODES
Order code
PN
Description
Size [mm
2
]
TMC2209-LA
00-0173
StealthChop standalone driver; QFN28 (RoHS compliant)
5 x 5
TMC2209-LA-T
00-0173-T
-T denotes tape on reel packing of devices
TMC2209-EVAL
40-0169
Evaluation board for TMC2209 stepper motor driver
85 x 55
ESELSBRÜCKE
40-0098
Connector board fitting to Landungsbrücke
61 x 38
LANDUNGSBRÜCKE
40-0167
Baseboard for TMC2209-EVAL & further evaluation
boards
85 x 55
In this example, configuration is hard
wired via pins. Software based motion
control generates STEP and DIR
(direction) signals, INDEX and ERROR
signals report back status information.
A CPU operates the driver via step and
direction signals. It accesses diagnostic
information and configures the
TMC2209 via the UART interface. The
CPU manages motion control and the
TMC2209 drives the motor and smoo-
thens and optimizes drive performance.
The TMC2209-EVAL is part of
TRINAMICs universal evaluation board
system which provides a convenient
handling of the hardware as well as a
user-friendly software tool for
evaluation. The TMC2209 evaluation
board system consists of three parts:
STARTRAMPE (base board),
ESELSBRÜCKE (connector board with
several test points and stand-alone
settings), and TMC2209-EVAL.

TMC2209 DATASHEET (Rev. 1.04 / 2020-FEB-19) 3
www.trinamic.com
Table of Contents
1 PRINCIPLES OF OPERATION ......................... 4
1.1 KEY CONCEPTS ................................................ 5
1.2 CONTROL INTERFACES ..................................... 6
1.3 MOVING AND CONTROLLING THE MOTOR ........ 6
1.4 STEALTHCHOP2 & SPREADCYCLE DRIVER ....... 6
1.5 STALLGUARD4 – MECHANICAL LOAD SENSING .
....................................................................... 7
1.6 COOLSTEP – LOAD ADAPTIVE CURRENT
CONTROL ...................................................................... 7
1.7 AUTOMATIC STANDSTILL POWER DOWN......... 8
1.8 INDEX OUTPUT ................................................ 8
1.9 PRECISE CLOCK GENERATOR AND CLK INPUT... 8
2 PIN ASSIGNMENTS ........................................... 9
2.1 PACKAGE OUTLINE TMC2209 ........................ 9
2.2 SIGNAL DESCRIPTIONS TMC2209 .................. 9
3 SAMPLE CIRCUITS .......................................... 11
3.1 STANDARD APPLICATION CIRCUIT ................ 11
3.2 INTERNAL RDSON SENSING .......................... 11
3.3 5V ONLY SUPPLY .......................................... 12
3.4 CONFIGURATION PINS .................................. 13
3.5 HIGH MOTOR CURRENT ................................. 13
3.6 LOW POWER STANDBY ................................. 14
3.7 DRIVER PROTECTION AND EME CIRCUITRY ... 14
4 UART SINGLE WIRE INTERFACE ................ 15
4.1 DATAGRAM STRUCTURE ................................. 15
4.2 CRC CALCULATION ....................................... 17
4.3 UART SIGNALS ............................................ 17
4.4 ADDRESSING MULTIPLE SLAVES .................... 18
5 REGISTER MAP ................................................. 19
5.1 GENERAL REGISTERS ..................................... 20
5.2 VELOCITY DEPENDENT CONTROL ................... 25
5.3 STALLGUARD CONTROL ................................. 26
5.4 SEQUENCER REGISTERS ................................. 28
5.5 CHOPPER CONTROL REGISTERS ..................... 29
6 STEALTHCHOP™ .............................................. 35
6.1 AUTOMATIC TUNING ..................................... 35
6.2 STEALTHCHOP OPTIONS ................................ 37
6.3 STEALTHCHOP CURRENT REGULATOR ............. 37
6.4 VELOCITY BASED SCALING ............................ 39
6.5 COMBINE STEALTHCHOP AND SPREADCYCLE . 41
6.6 FLAGS IN STEALTHCHOP ............................... 42
6.7 FREEWHEELING AND PASSIVE BRAKING ........ 43
7 SPREADCYCLE CHOPPER ............................... 45
7.1 SPREADCYCLE SETTINGS ............................... 46
8 SELECTING SENSE RESISTORS .................... 49
9 MOTOR CURRENT CONTROL ........................ 50
9.1 ANALOG CURRENT SCALING VREF ............... 51
10 INTERNAL SENSE RESISTORS ..................... 53
11 STALLGUARD4 LOAD MEASUREMENT ....... 55
11.1 STALLGUARD4 VS. STALLGUARD2 ................ 55
11.2 TUNING STALLGUARD4 ................................. 56
11.3 STALLGUARD4 UPDATE RATE ....................... 56
11.4 DETECTING A MOTOR STALL ......................... 56
11.5 LIMITS OF STALLGUARD4 OPERATION .......... 56
12 COOLSTEP OPERATION ................................. 57
12.1 USER BENEFITS ............................................. 57
12.2 SETTING UP FOR COOLSTEP .......................... 57
12.3 TUNING COOLSTEP ....................................... 59
13 STEP/DIR INTERFACE .................................... 60
13.1 TIMING ......................................................... 60
13.2 CHANGING RESOLUTION ............................... 61
13.3 MICROPLYER STEP INTERPOLATOR AND STAND
STILL DETECTION ....................................................... 62
13.4 INDEX OUTPUT ............................................. 63
14 INTERNAL STEP PULSE GENERATOR ......... 64
15 DRIVER DIAGNOSTIC FLAGS ...................... 65
15.1 TEMPERATURE MEASUREMENT ....................... 65
15.2 SHORT PROTECTION ...................................... 65
15.3 OPEN LOAD DIAGNOSTICS ........................... 66
15.4 DIAGNOSTIC OUTPUT ................................... 66
16 QUICK CONFIGURATION GUIDE ................ 67
17 EXTERNAL RESET ............................................. 71
18 CLOCK OSCILLATOR AND INPUT ............... 71
19 ABSOLUTE MAXIMUM RATINGS ................. 72
20 ELECTRICAL CHARACTERISTICS ................. 72
20.1 OPERATIONAL RANGE ................................... 72
20.2 DC AND TIMING CHARACTERISTICS .............. 73
20.3 THERMAL CHARACTERISTICS.......................... 77
21 LAYOUT CONSIDERATIONS ......................... 78
21.1 EXPOSED DIE PAD ........................................ 78
21.2 WIRING GND .............................................. 78
21.3 SUPPLY FILTERING ........................................ 78
21.4 LAYOUT EXAMPLE TMC2209 ........................ 79
22 PACKAGE MECHANICAL DATA .................... 80
22.1 DIMENSIONAL DRAWINGS QFN28 ............... 80
22.2 PACKAGE CODES ........................................... 81
23 TABLE OF FIGURES ......................................... 82
24 REVISION HISTORY ....................................... 83
25 REFERENCES ...................................................... 83

TMC2209 DATASHEET (Rev. 1.04 / 2020-FEB-19) 4
www.trinamic.com

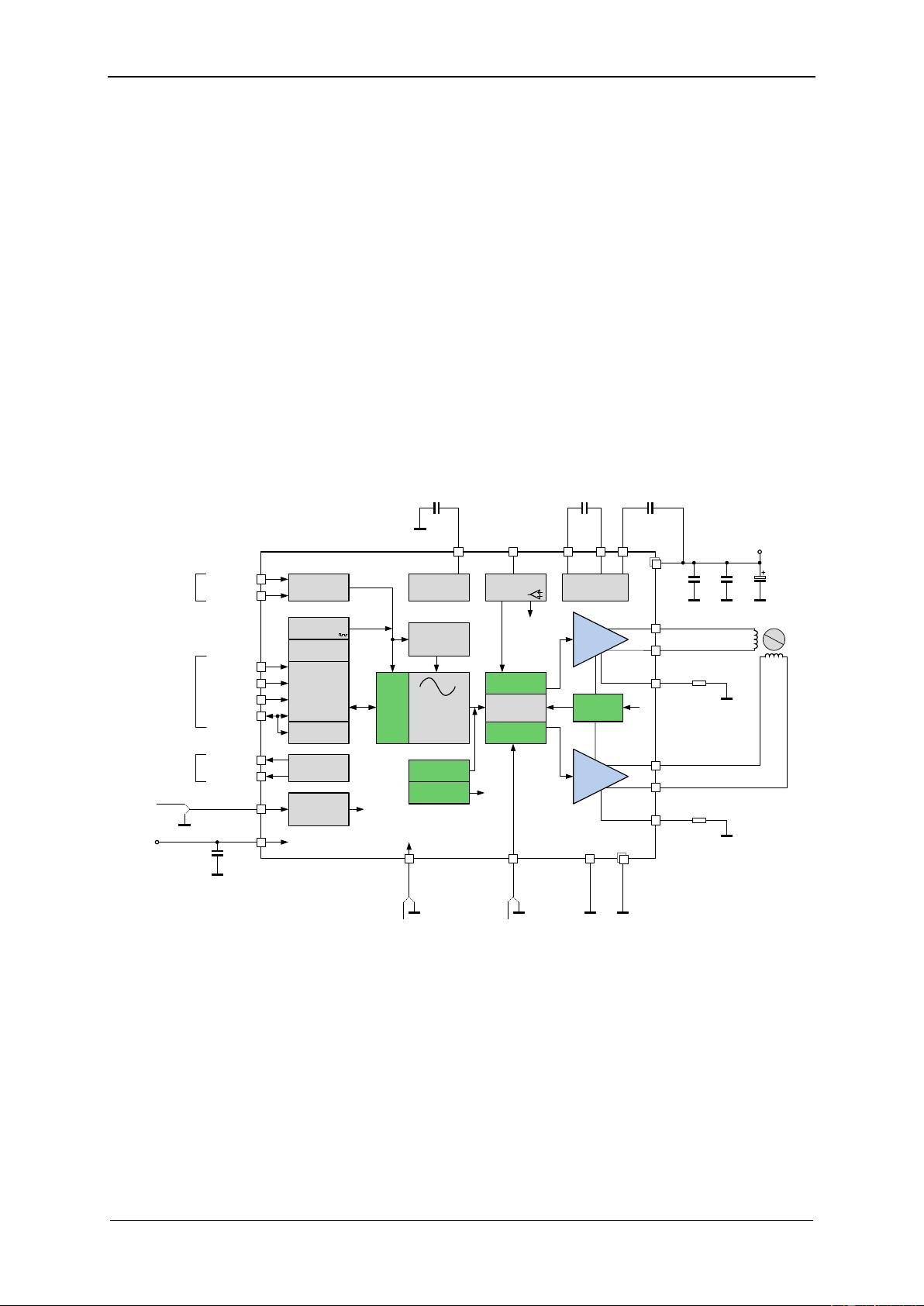

1 Principles of Operation
The TMC22xx family of stepper drivers is intended as a drop-in upgrade for existing low-cost stepper
driver applications. Their silent drive technology StealthChop enables non-bugging motion control for
home and office applications. A highly efficient power stage enables high current from a tiny package.
The TMC2209 requires just a few control pins on its tiny package. It allows selection of the most
important setting: the desired microstep resolution. A choice of 8, 16, 32 or 64 microsteps, or from
fullstep up to 1/256 step adapts the driver to the capabilities of the motion controller.
Even at low microstepping rate, the TMC2209 offers a number of unique enhancements over
comparable products: TRINAMICs sophisticated StealthChop2 chopper plus the microstep enhancement
MicroPlyer ensure noiseless operation, maximum efficiency and best motor torque. Its fast current
regulation and optional combination with SpreadCycle allow for highly dynamic motion. Protection
and diagnostic features support robust and reliable operation. A simple-to-use 8 bit UART interface
opens up more tuning and control options. Application specific tuning can be stored to on-chip OTP
memory. Industries’ most advanced step & direction stepper motor driver family upgrades designs to
noiseless and most precise operation for cost-effective and highly competitive solutions.
22n
50V
100n
16V
ENN
GND
DIE PAD
microPlyer
Full Bridge A
Full Bridge B
+V
M
VS
stepper
motor
N
S
OA1
OA2
OB1
OB2
Driver
100n
BRB
100µF
CPI
CPO
BRA
R
SA
Use low inductivity SMD
type, e.g. 1206, 0.5W for
R
SA
and R
SB
R
SB
100n
VCP
VREF
opt. driver enable
stealthChop2
spreadCycle
Integrated
Rsense
IREF
256 Microstep
Sequencer
Stand Still
Current
Reduction
2.2µ
6.3V
5VOUT
Analog current
scaling or leave
open
Low ESR type
Place near IC with
short path to die pad
Connect directly
to GND plane
Connect directly
to GND plane
VCC_IO
TMC2209
Step&Dir input
5V Voltage
regulator
charge pump
CLK_IN
opt. ext. clock
10-16MHz
3.3V or 5V
I/O voltage
100n
Analog Scaling
VREF
Programmable
Diagnostic
Outputs
Configuration
Interface
MS1
MS2
SPREAD
INDEX
DIAG
Configuration
(GND or VCC_IO)
Index pulse
Driver error
PDN/UART
B. Dwersteg, ©
TRINAMIC 2016
Trimmed
CLK oscillator/
selector
UART interface
+ Register Block
Configuration
Memory (OTP)
optional UART interface
IREF
Step Pulse
Generator
STEP
DIR
Step and Direction
motion control
stallGuard4
coolStep
STDBY
opt. low power standby
Figure 1.1 TMC2209 basic application block diagram
THREE MODES OF OPERATION:
OPTION 1: Standalone STEP/DIR Driver (Legacy Mode)
A CPU (µC) generates step & direction signals synchronized to additional motors and other
components within the system. The TMC2209 operates the motor as commanded by the configuration
pins and STEP/DIR signals. Motor run-current either is fixed, or set by the CPU using the analog input
VREF. The pin PDN_UART selects automatic standstill current reduction. Feedback from the driver to

TMC2209 DATASHEET (Rev. 1.04 / 2020-FEB-19) 5
www.trinamic.com
the CPU is granted by the INDEX and DIAG output signals. Enable or disable the motor using the ENN
pin.
OPTION 2: Standalone STEP/DIR Driver with OTP pre-configuration
Additional options enabled by pre-programming OTP memory (label UART & OTP):
+ Tuning of the chopper to the application for application tailored performance
+ Cost reduction by switching the driver to internal sense resistor mode
+ Adapting the automatic power down level and timing for best application efficiency
S/D
N
S
0A+
0A-
0B+
TMC22xx
0B-
ERROR, INDEX
CPU
High-Level
Interface
TXD only or bit
bang UART
Other drivers
External pre-
programming
Figure 1.2 Stand-alone driver with pre-configuration
To enable the additional options, either one-time program the driver’s OTP memory, or store
configuration in the CPU and transfer it to the on-chip registers following each power-up. Operation
uses the same signals as Option 1. Programming does not need to be done within the application - it
can be executed during testing of the PCB! Alternatively, use bit-banging by CPU firmware to configure
the driver. Multiple drivers can be programmed at the same time using a single TXD line.
OPTION 3: STEP/DIR Driver with Full Diagnostics and Control
Similar to Option 2, but pin PDN_UART is connected to the CPU UART interface.
Additional options (label UART):
+ Detailed diagnostics and thermal management
+ Passive braking and freewheeling for flexible, lowest power stop modes
+ More options for microstep resolution setting (fullstep to 256 microstep)
+ Software controlled motor current setting and more chopper options
+ Use StallGuard for sensorless homing and CoolStep for adaptive motor current and cool motor
This mode allows replacing all control lines like ENN, DIAG, INDEX, MS1, MS2, and analog current
setting VREF by a single interface line. This way, only three signals are required for full control: STEP,
DIR and PDN_UART. Even motion without external STEP pulses is provided by an internal
programmable step pulse generator: Just set the desired motor velocity. However, no ramping is
provided by the TMC2209.
1.1 Key Concepts
The TMC2209 implements advanced features which are exclusive to TRINAMIC products. These features
contribute toward greater precision, greater energy efficiency, higher reliability, smoother motion, and
cooler operation in many stepper motor applications.
StealthChop2™ No-noise, high-precision chopper algorithm for inaudible motion and inaudible
standstill of the motor. Allows faster motor acceleration and deceleration than
StealthChop™ and extends StealthChop to low stand still motor currents.
SpreadCycle™ High-precision cycle-by-cycle current control for highest dynamic movements.
MicroPlyer™ Microstep interpolator for obtaining full 256 microstep smoothness with lower
resolution step inputs starting from fullstep
StallGuard4™ Sensorless homing safes end switches and warns in case of motor overload
CoolStep™ Uses StallGuard measurement in order to adapt the motor current for best efficiency
and lowest heat-up of motor and driver
UART
UART OTP
剩余82页未读,继续阅读


















Ferrari2864
- 粉丝: 0
- 资源: 4
上传资源 快速赚钱
我的内容管理 收起
我的资源 快来上传第一个资源
我的收益
登录查看自己的收益我的积分 登录查看自己的积分
我的C币 登录后查看C币余额
我的收藏
我的下载
下载帮助

会员权益专享
安全验证
文档复制为VIP权益,开通VIP直接复制

评论1
