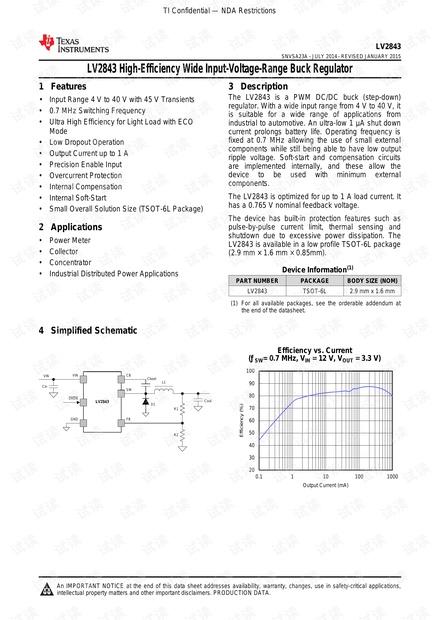

LV2843
SNVSA23A –JULY 2014–REVISED JANUARY 2015
LV2843 High-Efficiency Wide Input-Voltage-Range Buck Regulator
1 Features 3 Description
The LV2843 is a PWM DC/DC buck (step-down)
1
• Input Range 4 V to 40 V with 45 V Transients
regulator. With a wide input range from 4 V to 40 V, it
• 0.7 MHz Switching Frequency
is suitable for a wide range of applications from
• Ultra High Efficiency for Light Load with ECO
industrial to automotive. An ultra-low 1 µA shut down
Mode
current prolongs battery life. Operating frequency is
fixed at 0.7 MHz allowing the use of small external
• Low Dropout Operation
components while still being able to have low output
• Output Current up to 1 A
ripple voltage. Soft-start and compensation circuits
• Precision Enable Input
are implemented internally, and these allow the
device to be used with minimum external
• Overcurrent Protection
components.
• Internal Compensation
The LV2843 is optimized for up to 1 A load current. It
• Internal Soft-Start
has a 0.765 V nominal feedback voltage.
• Small Overall Solution Size (TSOT-6L Package)
The device has built-in protection features such as
pulse-by-pulse current limit, thermal sensing and
2 Applications
shutdown due to excessive power dissipation. The
• Power Meter
LV2843 is available in a low profile TSOT-6L package
• Collector
(2.9 mm × 1.6 mm × 0.85mm).
• Concentrator
Device Information
(1)
• Industrial Distributed Power Applications
PART NUMBER PACKAGE BODY SIZE (NOM)
LV2843 TSOT-6L 2.9 mm x 1.6 mm
(1) For all available packages, see the orderable addendum at
the end of the datasheet.

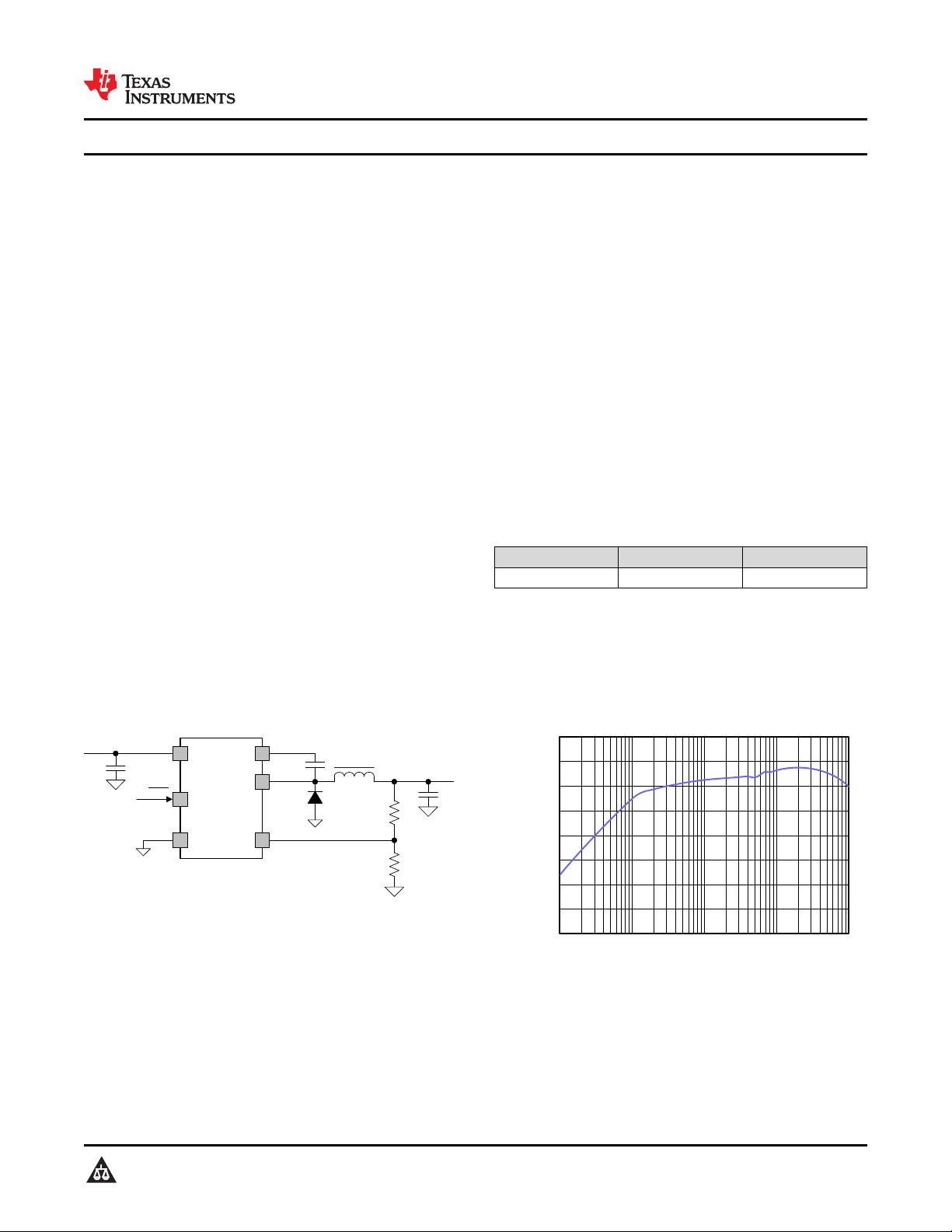

4 Simplified Schematic
Efficiency vs. Current
(ƒ
SW
= 0.7 MHz, V
IN
= 12 V, V
OUT
= 3.3 V)
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.

TI Confidential — NDA Restrictions
LV2843
SNVSA23A –JULY 2014 –REVISED JANUARY 2015
www.ti.com
Table of Contents
8.2 Functional Block Diagram ......................................... 7
1 Features.................................................................. 1
8.3 Feature Description................................................... 7
2 Applications ........................................................... 1
9 Application and Implementation ........................ 10
3 Description ............................................................. 1
9.1 Application Information............................................ 10
4 Simplified Schematic............................................. 1
9.2 Typical Applications ............................................... 10
5 Revision History..................................................... 2
10 Power Supply Recommendations ..................... 14
6 Pin Configuration................................................... 3
11 Layout................................................................... 14
7 Specifications......................................................... 4
11.1 Layout Guidelines ................................................. 14
7.1 Absolute Maximum Ratings ...................................... 4
11.2 Layout Example .................................................... 15
7.2 Handling Ratings ...................................................... 4
12 Device and Documentation Support ................. 16
7.3 Recommended Operating Conditions....................... 4
12.1 Trademarks........................................................... 16
7.4 Thermal Information.................................................. 4
12.2 Electrostatic Discharge Caution............................ 16
7.5 Electrical Characteristics........................................... 5
12.3 Glossary................................................................ 16
7.6 Typical Characteristics.............................................. 6
13 Mechanical, Packaging, and Orderable
8 Detailed Description.............................................. 7
Information ........................................................... 16
8.1 Overview ................................................................... 7
13.1 Package Option Addendum.................................. 17
5 Revision History
Changes from Original (July 2014) to Revision A Page
• Changed from Product Preview to Production Data and still a custom document for the China customers ......................... 1
2 Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated
Product Folder Links: LV2843

CB
1
2
3 4
5
6
TSOT-6L
LV2843
GND
FB
SW
V
IN
SHDN
PIN 1 ID
TI Confidential — NDA Restrictions
LV2843
www.ti.com
SNVSA23A –JULY 2014–REVISED JANUARY 2015

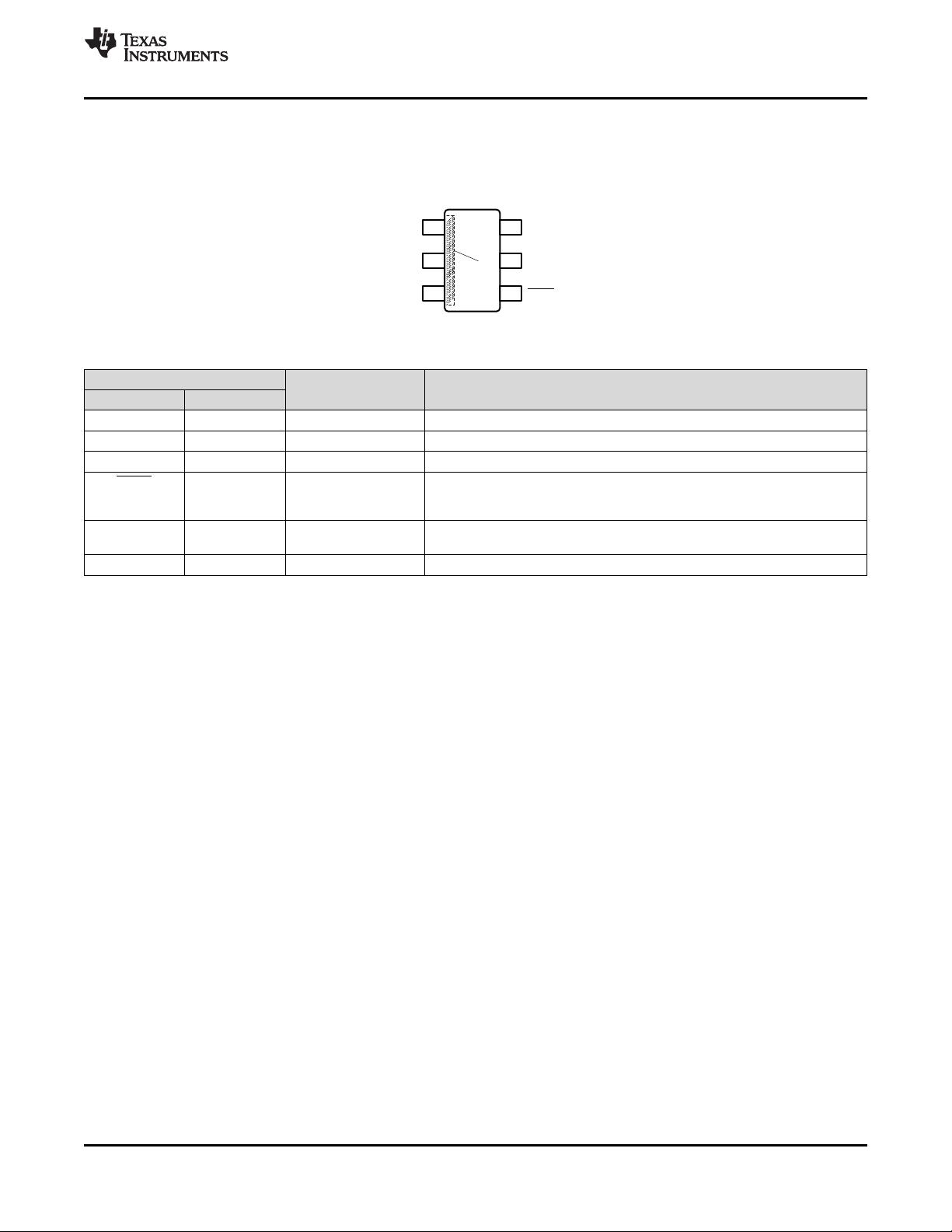

6 Pin Configuration
DDC Package
(TOP VIEW)
Pin Functions
PIN I/O DESCRIPTION
NAME NO.
CB 1 I SW FET gate bias voltage. Connect C
boot
cap between CB and SW.
GND 2 G Ground Connection.
FB 3 I Feedback Pin. Set feedback voltage divider ratio with V
OUT
= V
FB
(1+(R1/R2))
SHDN 4 I Enable and disable input pin(high voltage tolerant). Internal pull-up current
source. Pull below 1.25 V to disable. Float to enable. Adjust the input
undervoltage lockout with two resistors.
VIN 5 I Power input voltage pin. Input for internal supply and drain node input for
internal high-side MOSFET.
SW 6 O Switch node. Connect to inductor, diode and C
boot
cap.
Copyright © 2014–2015, Texas Instruments Incorporated Submit Documentation Feedback 3
Product Folder Links: LV2843

TI Confidential — NDA Restrictions
LV2843
SNVSA23A –JULY 2014 –REVISED JANUARY 2015
www.ti.com
7 Specifications
7.1 Absolute Maximum Ratings
Over operating free-air temperature range (unless otherwise noted)
(1)
MIN MAX UNIT
V
IN
to GND -0.3 45
SHDN to GND -0.3 45
Input Voltages V
FB to GND -0.3 7
CB to SW -0.3 7
SW to GND -1 45
Output Voltages V
SW to GND less than 30ns transients -2 45
T
J
Operating junction temperature -40 150 °C
(1) Stresses at or beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress
ratings only and functional operation of the device at these or any other conditions beyond those indicated under “recommended
operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
7.2 Handling Ratings
MIN MAX UNIT
T
stg
Storage temperature range -55 165 °C
Human body model (HBM), all pins except CB PIN
(1)
1000
V
(ESD)
Electrostatic discharge V
Charged device model (CDM), all pins
(2)
500
(1) JEDEC document JEP155 states that 500V HBM allows safe manufacturing with a standard ESD control process, CB PIN passes 500V
test.
(2) JEDEC document JEP157 states that 250V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
Over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Vin 4 40
CB 46
Buck regulator CB to SW 6
V
SW -0.7 40
FB 0 5
Control SHDN 0 40
Temperature Operating junction temperature, T
J
-40 125 °C
7.4 Thermal Information
LV2843
THERMAL METRIC
(1)
SOT (DDC) UNIT
6 PINS
R
θJA
Junction-to-ambient thermal resistance 102
R
θJC(top)
Junction-to-case (top) thermal resistance 36.9 °C/W
ψ
JB
Junction-to-board characterization parameter 28.4
(1) All numbers apply for packages soldered directly onto a 3" x 3" PC board with 2 oz. copper on 4 layers in still air in accordance to
JEDEC standards. Thermal resistance varies greatly with layout, copper thickness, number of layers in PCB, power distribution, number
of thermal vias, board size, ambient temperature, and air flow.
4 Submit Documentation Feedback Copyright © 2014–2015, Texas Instruments Incorporated
Product Folder Links: LV2843

TI Confidential — NDA Restrictions
LV2843
www.ti.com
SNVSA23A –JULY 2014–REVISED JANUARY 2015
7.5 Electrical Characteristics
V
IN
= 12V, SHDN = V
IN
, T
J
= 25°C, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
V
IN
(INPUT POWER SUPPLY)
Operating input voltage 4 40 V
Shutdown supply current EN = 0 V 1 3 µA
Rising 4 V
Undervoltage lockout thresholds
Falling 3 V
ECO mode, no load, V
IN
= 12 V, not
I
Q
30 µA
switching
SHDN AND UVLO
Rising SHDN Threshold Voltage 1.05 1.25 1.38 V
SHDN = 2.3 V -4.2
SHDN PIN current µA
SHDN = 0.9 V -1
Hysteresis current -3 µA
HIGH-SIDE MOSFET
On-resistance V
IN
= 12 V, CB to SW = 5.8 V 500 mΩ
t
ON-MIN
(1)
95 ns
D
MAX
: Maximum duty cycle
(1)
96%
V
FB
: Feedback voltage 0.74 0.765 0.79 V
CURRENT LIMIT
Current limit threshold V
IN
= 12 V 1500 mA
ƒ
SW
Switching frequency 550 700 850 kHz
THERMAL PERFORMANCE
T
SHUTDOWN
Thermal shutdown trip
170 °C
point
(1)
T
HYS
(1)
Hysteresis 10 °C
(1) Guaranteed by design.
Copyright © 2014–2015, Texas Instruments Incorporated Submit Documentation Feedback 5
Product Folder Links: LV2843
