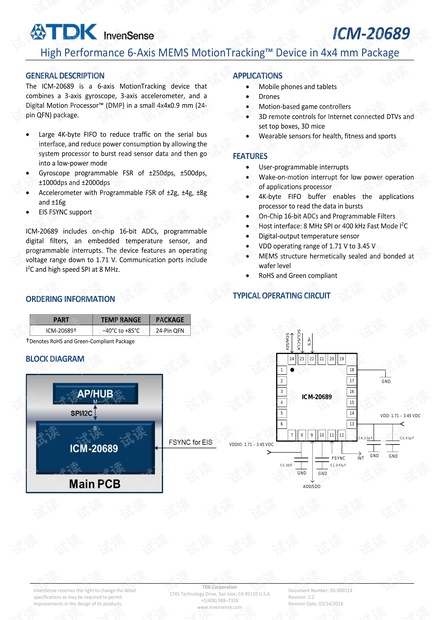

ICM-20689

High Performance 6-Axis MEMS MotionTracking™ Device in 4x4 mm Package

InvenSense reserves the right to change the detail

specifications as may be required to permit

improvements in the design of its products.

TDK Corporation

1745 Technology Drive, San Jose, CA 95110 U.S.A

+1(408) 988–7339

www.invensense.com

Document Number: DS-000114

Revision: 2.2

Revision Date: 03/14/2018

GENERAL DESCRIPTION

The ICM-20689 is a 6-axis MotionTracking device that

combines a 3-axis gyroscope, 3-axis accelerometer, and a

Digital Motion Processor™ (DMP) in a small 4x4x0.9 mm (24-

pin QFN) package.

• Large 4K-byte FIFO to reduce traffic on the serial bus

interface, and reduce power consumption by allowing the

system processor to burst read sensor data and then go

into a low-power mode

• Gyroscope programmable FSR of ±250dps, ±500dps,

±1000dps and ±2000dps

• Accelerometer with Programmable FSR of ±2g, ±4g, ±8g

and ±16g

• EIS FSYNC support

ICM-20689 includes on-chip 16-bit ADCs, programmable

digital filters, an embedded temperature sensor, and

programmable interrupts. The device features an operating

voltage range down to 1.71 V. Communication ports include

C and high speed SPI at 8 MHz.

ORDERING INFORMATION

PART

TEMP RANGE

PACKAGE

ICM-20689† −40°C to +85°C 24-Pin QFN

†Denotes RoHS and Green-Compliant Package

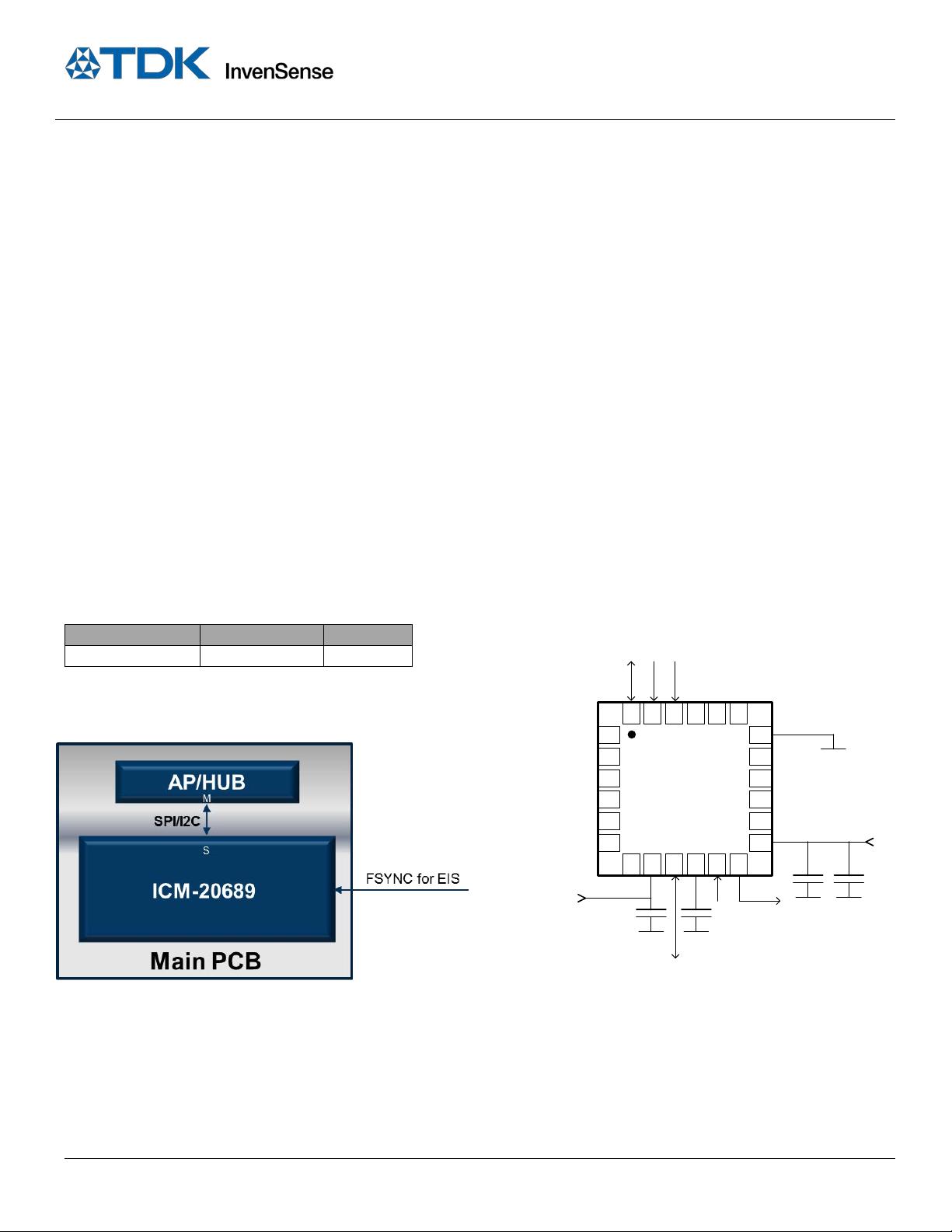

BLOCK DIAGRAM

APPLICATIONS

• Mobile phones and tablets

• Drones

• Motion-based game controllers

• 3D remote controls for Internet connected DTVs and

set top boxes, 3D mice

• Wearable sensors for health, fitness and sports

FEATURES

• User-programmable interrupts

• Wake-on-motion interrupt for low power operation

of applications processor

• 4K-byte FIFO buffer enables the applications

processor to read the data in bursts

• On-Chip 16-bit ADCs and Programmable Filters

• Host interface: 8 MHz SPI or 400 kHz Fast Mode I

• Digital-output temperature sensor

• VDD operating range of 1.71 V to 3.45 V

• MEMS structure hermetically sealed and bonded at

wafer level

• RoHS and Green compliant

TYPICAL OPERATING CIRCUIT

7 8 9 10 11 12

24 23 22 21 20 19

ICM-20689

GND

C3, 10nF

VDDIO: 1.71 – 3.45 VDC

AD0/SDO

GND

C1, 0.47µ F

FSYNC INT

GND

VDD: 1.71 – 3.45 VDC

C2, 0.1µ FC4, 2.2µ F

GND

nCS

SCL/SCLK

SDA/SDI

ICM-20689

Document Number: DS-000114 Page 2 of 53

Revision Date: 03/14/2018

Revision: 2.2
