Amphenol AssembleTech Technical Datasheet

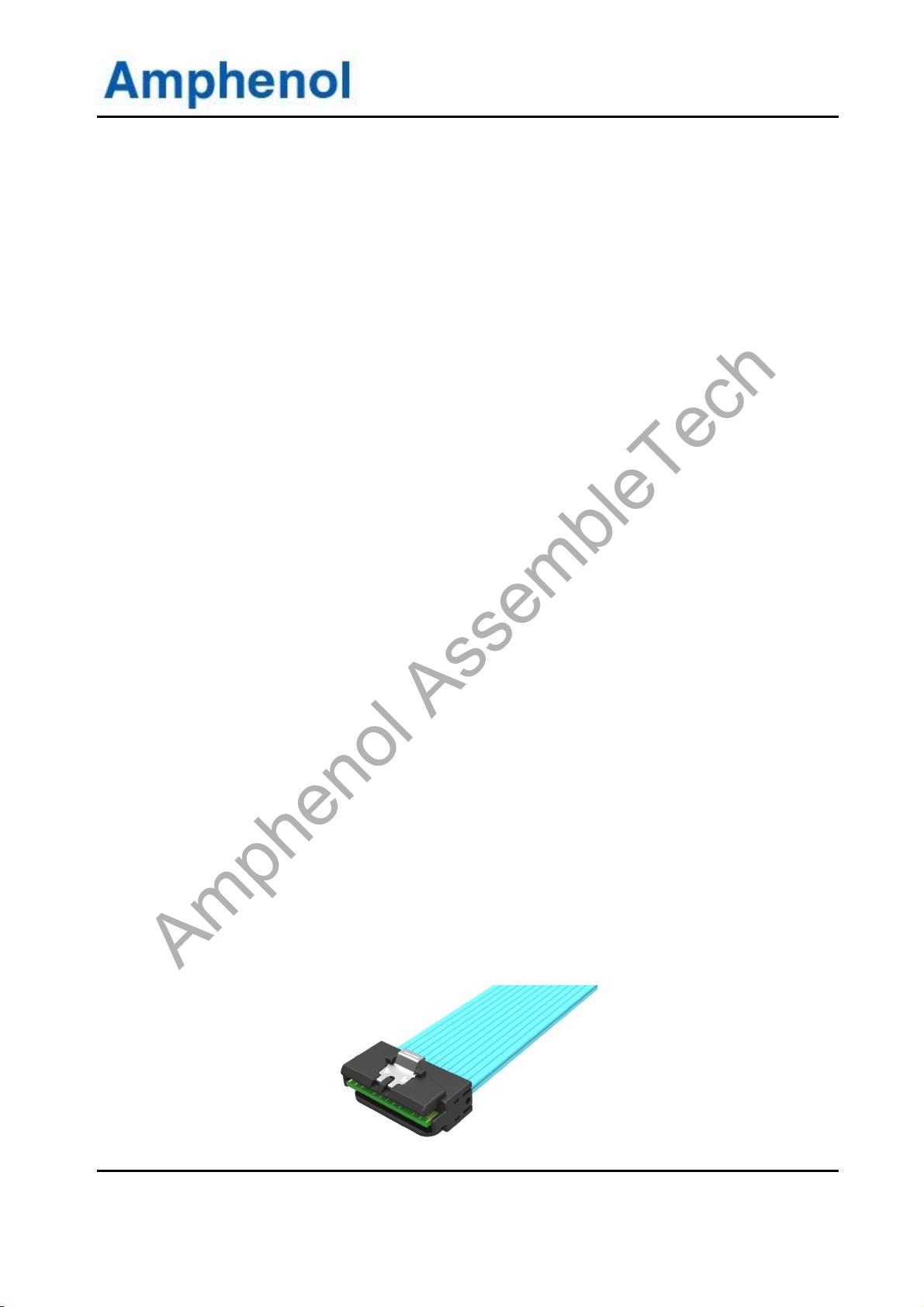

SlimSAS LP Cable Assemblies

Page 1 of 14

DS-0001 Rev 2018/6/28

those RD products are subject to change by Amphenol without prior informing customers

Contents

Introduction….….…………………………………………………………………….……………………...………………….……………….……2

Description

Features and Benefits

Applications

Industry Standards

Technical Documents

Part Numbers ……………………..…………………………………………………………………………………………………….…..….…….3

Table 1. Cable Connector Part Number Selection Guide

Product Specifications ………………………………..……………………………………………………………...…………………..…….……5

Table 2. Material Specifications

Table 3. Electrical/Mechanical Specifications

Table 4. Environmental Specifications

Table 5. Cable Specifications

Pin Configurations ………………………………………………………………………………………..…………………………..……...………7

SlimSAS LP 38 Position

SlimSAS LP 74 Position

SlimSAS LP 124 Position

SlimSAS LP Typical Cable Assembly Configuration………………………………………………………………….………….………………9

SlimSAS LP 38 Position Straight to Straight Cable Assembly

SlimSAS LP 38 Position Right Angle to Right Angle Cable Assembly

SlimSAS LP 38 Position Right Side Exit to Left Side Exit Cable Assembly

SlimSAS LP 74 Position Straight to Straight Cable Assembly

SlimSAS LP 74 Position Right Angle to Right Angle Cable Assembly

SlimSAS LP 74 Position Right Side Exit to Left Side Exit Cable Assembly

SlimSAS LP 124 Position Straight to Straight Cable Assembly

SlimSAS LP 124 Position Right Angle to Right Angle Cable Assembly

SlimSAS LP 124 Position Right Side Exit to Left Side Exit Cable Assembly

Signal Integrity Performance ……………………………………………………………..…………………..……………………….…………12

Amphenol AssembleTech

Page 2 of 14

DS-0001 Rev 2018/6/28

those RD products are subject to change by Amphenol without prior informing customers

INTRODUCTION

Description

Amphenol SlimSAS LP is a flexible, robust and cost effective connector and cable assembly solution that help server and

networking equipment design flexibility, reduce overall space, and extend the reach for high data rate signals. The solution can be

used in PCIe Gen3/Gen4, SAS3.0/SAS4.0, 25G Ethernet, 56GT/s PAM4 and other potential applications. The solution can support wire

to board application in system.

SlimSAS LP cable assemblies can be provided with 30AWG~34AWG discrete pairs and flat ribbon cable. The SlimSAS LP

connector design is scalable to 24 channels and is available in straight, right angle, right side-exit and left side-exit plug

configurations to mate with vertical board mount connectors.

SlimSAS LP cables are designed for applications in the data center, networking and telecommunications markets that use SAS,

PCIe, Ethernet and other signal protocols. SlimSAS LP cables and connectors support many interconnection configurations

including backplane to motherboard, backplane to add-in card and card to motherboard.

Features and Benefits

 Support cable to board application: 1.0mm PCB card thickness

 Multiple channels are optional: 4X/6X(38pos),8X/12X(74pos), 16X/20X(124pos)

 Small size design with great robustness : pitch 0.6mm connector and max 25N wrenching test

 Excellent SI performance: signal rates up to PCIe4 16GT/s, SAS 4.0 24Gbps, 25Gbps Ethernet and 56 GT/s PAM-4

 Compatible with many different industry standards and protocols including SAS, PCIe, 25G Ethernet and 56GT/s PAM4

 Straight, right angle, side exit and customization cable plug are optional

 Supports 85 ohm impedance applications, 100 ohm will be available in the future

 30-34AWG cables are available for both discrete and ribbon cable

 RoHS compliant. Halogen free is available on request

Product Applications

 Servers and storage devices

 High performance computing

 Data center & networking equipment

 Wireless base stations and radios

Industry Standards

 SAS 3.0 / 4.0

 PCIe Gen 3 / Gen 4

 56GT/s PAM-4

 25G Ethernet

Technical Documents

Product Specification: PS-AST-0956 SlimSAS LP Cable Assembly

Amphenol AssembleTech Technical Datasheet

SlimSAS LP Cable Assemblies

Amphenol AssembleTech
