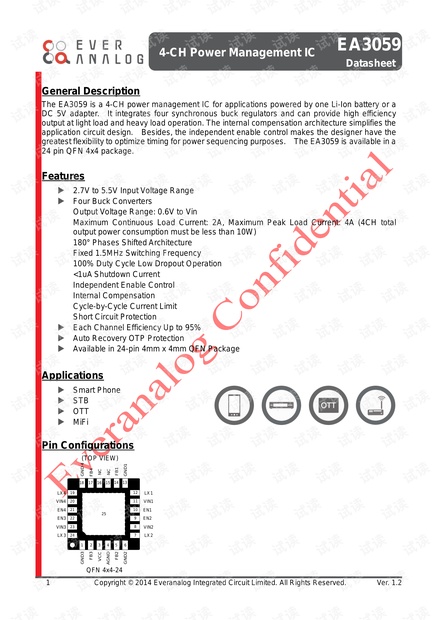

EA3059
Datasheet
4-CH Power Management IC
Copyright © 2014 Everanalog Integrated Circuit Limited. All Rights Reserved.
Ver. 1.2
General Description
The EA3059 is a 4-CH power management IC for applications powered by one Li-Ion battery or a
DC 5V adapter. It integrates four synchronous buck regulators and can provide high efficiency
output at light load and heavy load operation. The internal compensation architecture simplifies the
application circuit design. Besides, the independent enable control makes the designer have the
greatest flexibility to optimize timing for power sequencing purposes. The EA3059 is available in a
24 pin QFN 4x4 package.
Features
2.7V to 5.5V Input Voltage Range
Four Buck Converters
Output Voltage Range: 0.6V to Vin
Maximum Continuous Load Current: 2A, Maximum Peak Load Current: 4A (4CH total
output power consumption must be less than 10W)
180° Phases Shifted Architecture
Fixed 1.5MHz Switching Frequency
100% Duty Cycle Low Dropout Operation
<1uA Shutdown Current
Independent Enable Control
Internal Compensation
Cycle-by-Cycle Current Limit
Short Circuit Protection
Each Channel Efficiency Up to 95%
Auto Recovery OTP Protection
Available in 24-pin 4mm x 4mm QFN Package
Applications
Smart Phone
STB
OTT
MiFi
Pin Configurations
(TOP VIEW)
VIN
VIN
LX
LX
3
GND3
1
3
4
7
9
10
FB3
AGND
FB2
4
EN4
25
2
2 5 6
11
12
1314
1516
19
20
21
22
23
24
3
VIN2
EN2
EN1
8
18
EN3
4
VCC
FB4
FB1
GND1
LX2
LX1
VIN1
GND2
17
GND 4
NC
NC
QFN 4x4-24

2
EA3059
Datasheet
4-CH Power Management IC
Ver. 1.2
Copyright © 2014 Everanalog Integrated Circuit Limited. All Rights Reserved.
Pin Description
Pin Name
Function Description
Pin No.
GND3
Power ground pin of CH3.
1
FB3
Feedback input of CH3. Connect to output voltage with a resistor divider.
2
VCC
Input supply pin for internal control circuit.
3
AGND
Analog ground pin.
4
FB2
Feedback input of CH2. Connect to output voltage with a resistor divider.
5
GND2
Power ground pin of CH2.
6
LX2
Internal MOSFET switching output of CH2. Connect LX2 pin with a low
pass filter circuit to obtain a stable DC output voltage.
7
VIN2
Power input pin of CH2. Recommended to use a 10uF MLCC capacitor
between VIN2 pin and PGND2 pin.
8
EN2
CH2 turns on/turns off control input. Don’t leave this pin floating.
9
EN1
CH1 turns on/turns off control input. Don’t leave this pin floating.
10
VIN1
Power input pin of CH1. Recommended to use a 10uF MLCC capacitor
between VIN1 pin and PGND1 pin.
11
LX1
Internal MOSFET switching output of CH1. Connect LX1 pin with a low
pass filter circuit to obtain a stable DC output voltage.
12
GND1
Power ground pin of CH1.
13
FB1
Feedback input of CH1. Connect to output voltage with a resistor divider.
14
NC
No connect.
15, 16
FB4
Feedback input of CH4. Connect to output voltage with a resistor divider.
17
GND4
Power ground pin of CH4.
18
LX4
Internal MOSFET switching output of CH4. Connect LX4 pin with a low
pass filter circuit to obtain a stable DC output voltage.
19
VIN4
Power input pin of CH4. Recommended to use a 10uF MLCC capacitor
between VIN4 pin and PGND4 pin.
20
EN4
CH4 turns on/turns off control input. Don’t leave this pin floating.
21
EN3
CH3 turns on/turns off control input. Don’t leave this pin floating.
22
VIN3
Power input pin of CH3. Recommended to use a 10uF MLCC capacitor
between VIN3 pin and PGND3 pin.
23
LX3
Internal MOSFET switching output of CH3. Connect LX3 pin with a low
pass filter circuit to obtain a stable DC output voltage.
24
Exposed
Pad
The Exposed Pad must be soldered to a large PCB copper plane and
connected to GND for appropriate dissipation.
25

3
Datasheet
EA3059
4-CH Power Management IC
Ver. 1.2
Copyright © 2014 Everanalog Integrated Circuit Limited. All Rights Reserved.
Function Block Diagram
HS-
MOSFET
LS-
MOSFET
LX1
GND1
VIN1
Buck
Converter 1
HS-
MOSFET
LS-
MOSFET
LX2
GND2
VIN2
Buck
Converter 2
HS-
MOSFET
LS-
MOSFET
LX3
GND3
VIN3
Buck
Converter 3
EN1
EN2
EN3
VCC
AGND
HS-
MOSFET
LS-
MOSFET
LX4
GND4
VIN4
Buck
Converter 4
EN4
Figure 1. EA3059 internal function block diagram
