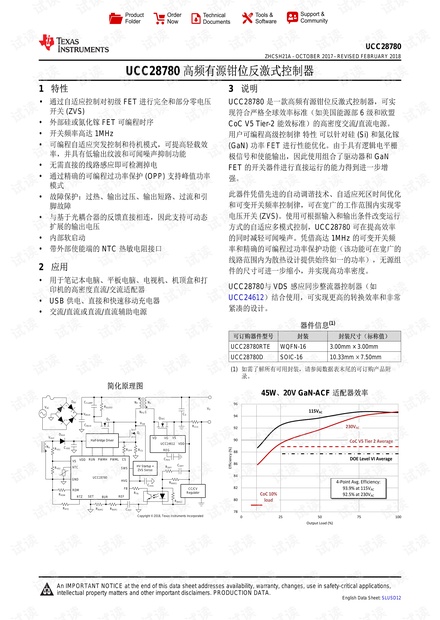

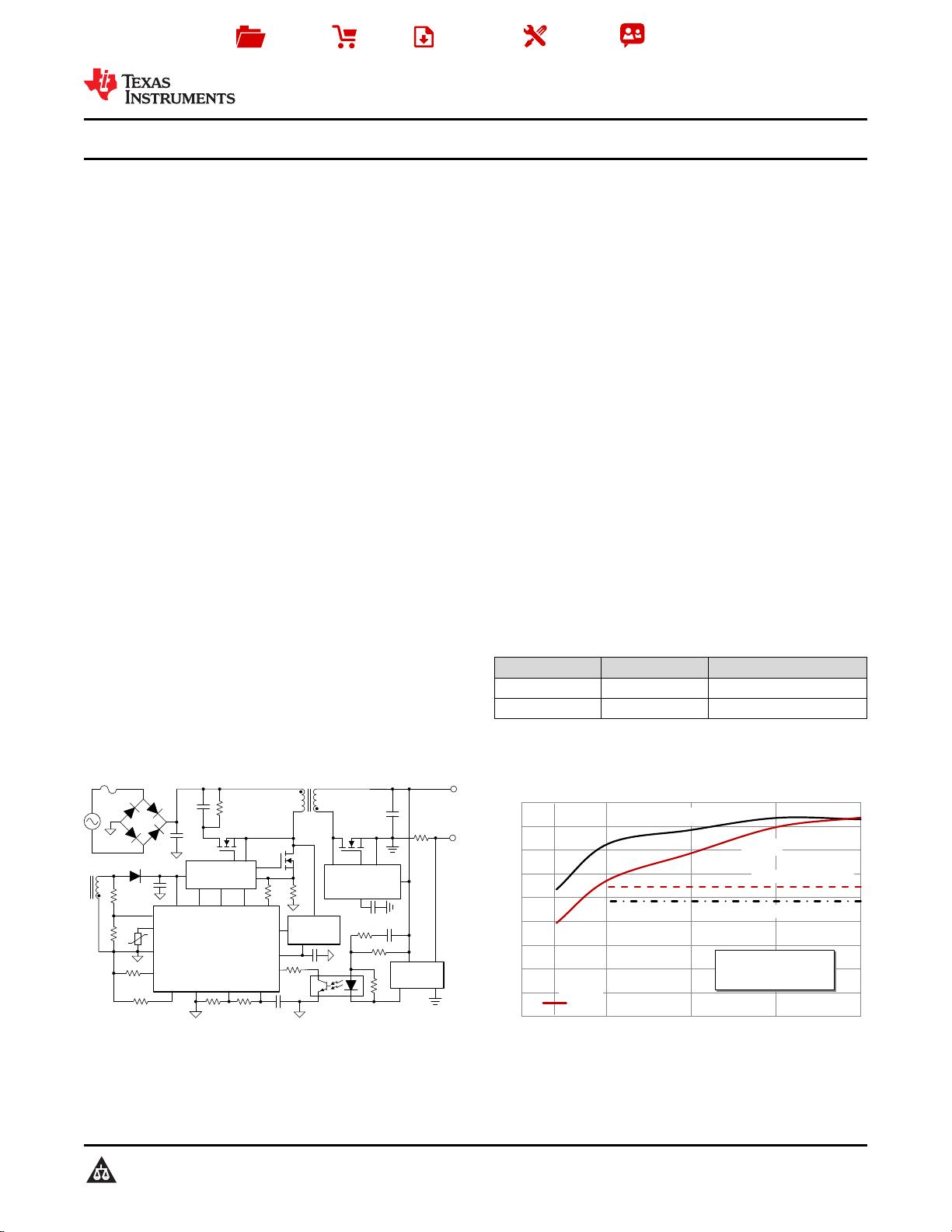

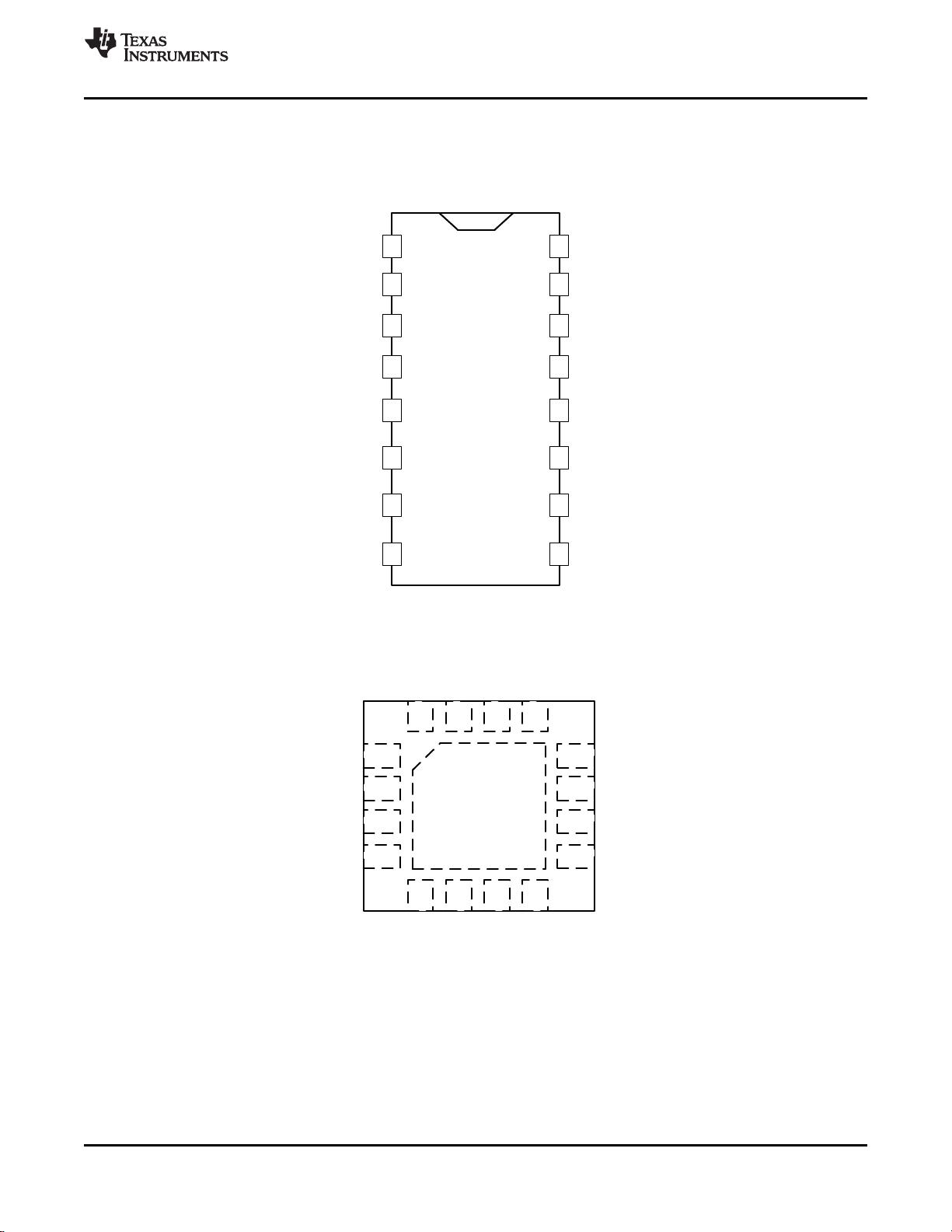

Pin Functions
PIN
TYPE
(1)
DESCRIPTION
NAME SOIC WQFN
BUR 15 13 I This pin is used to program the burst level of the converter at light load. A resistive divider
between REF and GND is used to set a voltage at this pin to determine the peak current level
when the converter enters the adaptive burst mode. In addition, the Thevenin resistance on
BUR pin (equivalent resistance of the divider resistors in parallel) is used to set an offset
voltage for smooth mode transition which increases the peak current level when the converter
enters the low power mode.
CS 3 1 I This is the current sense input pin. This pin couples through a line-compensation resistor to a
current-sense resistor to sense and control the peak primary current in each switching cycle. A
current sourced from this pin, which magnitude is proportional to the converter’s input voltage
derived from the VS-pin input signal, creates an offset voltage across the line-compensation
resistor to program an OPP level at high line.
FB 12 10 I The feedback current signal to close the converter’s regulation loop is coupled to this pin. This
pin presents a 4-V output that is designed to have 0-µA to 75-µA current pulled out of the pin
corresponding to the converter operating from full-power to zero-power conditions.
GND 2 16 G Ground reference and return for all controller signals.
HVG 8 6 O The high-voltage gate pin is used to control the gate of an external depletion-mode MOSFET
for start-up and switch-node voltage sensing. A 2.2-nF ceramic bypass capacitor to ground is
required.
NTC 11 9 I This is an interface to an external NTC (negative temperature coefficient) thermistor for remote
temperature sensing. Pulling this pin low shuts down PWM action and initiates a fault
response.
PWMH 5 3 O The PWMH pin is a logic-level output signal used to control the gate of the high-side clamp
switch through an external gate driver.
PWML 4 2 O The PWML pin is a logic-level output signal used to control the gate of the low-side primary
switch through an external gate driver.
RDM 14 12 I A resistor to ground on this pin programs a synthesized demagnetization time used to control
the on-time of the high-side switch to achieve zero voltage switching on the low-side switch.
The controller applies a voltage on this pin that varies with the output voltage derived from the
VS pin signal.
REF 16 14 O 5V reference output that requires a 0.1-µF ceramic bypass capacitor to ground. This reference
is used to power internal circuits and can supply a limited external load current.
RTZ 13 11 I A resistor to ground on this pin programs an adaptive transition-to-zero delay from the turn-off
edge of the high-side clamp switch to the turn-on edge of the low-side switch.
RUN 6 4 O This output pin is high when the controller is in a run state. During start-up and wait states this
output is low. It can be used to enable and disable the external gate drivers to reduce the
static power consumption. There is a preset delay, t
D(RUN-PWML)
, of about 2.2 µs that delays
the initiation of PWML switching after this pin has gone high.
SET 10 8 I This pin is used to configure the controller to be optimized for Gallium Nitride (GaN) power
FETs or silicon (Si) power FETs on the primary side. Depending on setting, it will optimize
parameters of the ZVS control loop, dead-time adjustment, and protection features. When
pulled high to REF pin, it is optimized for Si FETs. When pulled low to GND, it is optimized for
GaN FETs .
SWS 7 5 I This sensing input is used to monitor the switch-node voltage as it nears zero volts in normal
operation. During start-up, this pin is connected to the VDD pin internally to allow the high-
voltage sensing network to provide start-up current.
VDD 1 15 P Bias power input to the controller. A hold-up capacitor to ground is required for the bias power
supplied from the transformer auxiliary winding to this pin.
VS 9 7 I This voltage sensing input pin is coupled to the auxiliary winding of the converter’s transformer
via a resistor divider. The pin and the associated external resistors are used to monitor the
output and input voltages of the converter.
