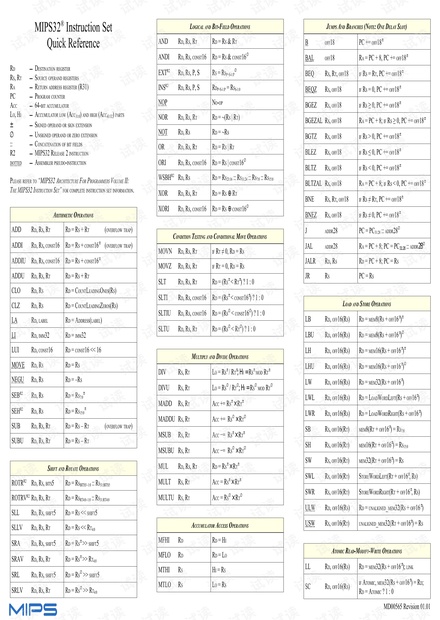

MIPS32
®
Instruction Set
Quick Reference
RD DESTINATION REGISTER
RS, RT SOURCE OPERAND REGISTERS
RA RETURN ADDRESS REGISTER (R31)
PC PROGRAM COUNTER
ACC 64-BIT ACCUMULATOR
LO, HI ACCUMULATOR LOW (ACC
31:0
) AND HIGH (ACC
63:32
) PARTS
± SIGNED OPERAND OR SIGN EXTENSION
∅ UNSIGNED OPERAND OR ZERO EXTENSION
:: CONCATENATION OF BIT FIELDS
R2 MIPS32 RELEASE 2 INSTRUCTION
DOTTED ASSEMBLER PSEUDO-INSTRUCTION
PLEASE REFER TO “MIPS32 ARCHITECTURE FOR PROGRAMMERS VOLUME II:
THE MIPS32 INSTRUCTION SET” FOR COMPLETE INSTRUCTION SET INFORMATION.
ARITHMETIC OPERATIONS
ADD RD, RS, RT RD = RS + RT (OVERFLOW TRAP)
ADDI RD, RS, CONST16 RD = RS + CONST16
±
(OVERFLOW TRAP)
ADDIU RD, RS, CONST16 RD = RS + CONST16
±
ADDU RD, RS, RT RD = RS + RT
CLO RD, RS RD = COUNTLEADINGONES(RS)
CLZ RD, RS RD = COUNTLEADINGZEROS(RS)
LA RD, LABEL RD = ADDRESS(LABEL)
LI RD, IMM32 RD = IMM32
LUI RD, CONST16 RD = CONST16 << 16
MOVE RD, RS RD = RS
NEGU RD, RS RD = –RS
SEB
R2
RD, RS RD = RS
7:0
±
SEH
R2
RD, RS RD = RS
15:0
±
SUB RD, RS, RT RD = RS – RT (OVERFLOW TRAP)
SUBU RD, RS, RT RD = RS – RT
SHIFT AND ROTATE OPERATIONS
ROTR
R2
RD, RS, BITS5 RD = RS
BITS5–1:0
:: RS
31:BITS5
ROTRV
R2
RD, RS, RT RD = RS
RT4:0–1:0
:: RS
31:RT4:0
SLL RD, RS, SHIFT5 RD = RS << SHIFT5
SLLV RD, RS, RT RD = RS << RT
4:0
SRA RD, RS, SHIFT5 RD = RS
±
>> SHIFT5
SRAV RD, RS, RT RD = RS
±
>> RT
4:0
SRL RD, RS, SHIFT5 RD = RS
∅
>> SHIFT5
SRLV RD, RS, RT RD = RS
∅
>> RT
4:0
LOGICAL AND BIT-FIELD OPERATIONS
AND RD, RS, RT RD = RS & RT
ANDI RD, RS, CONST16 RD = RS & CONST16
∅
EXT
R2
RD, RS, P, S RS = RS
P+S-1:P
∅
INS
R2
RD, RS, P, S RD
P+S-1:P
= RS
S-1:0
NOP NO-OP
NOR RD, RS, RT RD = ~(RS | RT)
NOT RD, RS RD = ~RS
OR RD, RS, RT RD = RS | RT
ORI RD, RS, CONST16 RD = RS | CONST16
∅
WSBH
R2
RD, RS RD = RS
23:16
:: RS
31:24
:: RS
7:0
:: RS
15:8
XOR RD, RS, RT RD = RS ⊕ RT
XORI RD, RS, CONST16 RD = RS ⊕ CONST16
∅
CONDITION TESTING AND CONDITIONAL MOVE OPERATIONS
MOVN RD, RS, RT IF RT ≠ 0, RD = RS
MOVZ RD, RS, RT IF RT = 0, RD = RS
SLT RD, RS, RT RD = (RS
±
< RT
±
) ? 1 : 0
SLTI RD, RS, CONST16 RD = (RS
±
< CONST16
±
) ? 1 : 0
SLTIU RD, RS, CONST16 RD = (RS
∅
< CONST16
∅
) ? 1 : 0
SLTU RD, RS, RT RD = (RS
∅
< RT
∅
) ? 1 : 0
MULTIPLY AND DIVIDE OPERATIONS
DIV RS, RT LO = RS
±
/ RT
±
; ΗΙ = RS
±
MOD RT
±
DIVU RS, RT LO = RS
∅
/ RT
∅
; ΗΙ = RS
∅
MOD RT
∅
MADD RS, RT ACC += RS
±
× RT
±
MADDU RS, RT ACC += RS
∅
× RT
∅
MSUB RS, RT ACC −= RS
±
× RT
±
MSUBU RS, RT ACC −= RS
∅
× RT
∅
MUL RD, RS, RT RD = RS
±
× RT
±
MULT RS, RT ACC = RS
±
× RT
±
MULTU RS, RT ACC = RS
∅
× RT
∅
ACCUMULATOR ACCESS OPERATIONS
MFHI RD RD = HI
MFLO RD RD = LO
MTHI RS HI = RS
MTLO RS LO = RS
JUMPS AND BRANCHES (NOTE: ONE DELAY SLOT)
B OFF18 PC += OFF18
±
BAL OFF18 RA = PC + 8, PC += OFF18
±
BEQ RS, RT, OFF18 IF RS = RT, PC += OFF18
±
BEQZ RS, OFF18 IF RS = 0, PC += OFF18
±
BGEZ RS, OFF18 IF RS ≥ 0, PC += OFF18
±
BGEZAL RS, OFF18 RA = PC + 8; IF RS ≥ 0, PC += OFF18
±
BGTZ RS, OFF18 IF RS > 0, PC += OFF18
±
BLEZ RS, OFF18 IF RS ≤ 0, PC += OFF18
±
BLTZ RS, OFF18 IF RS < 0, PC += OFF18
±
BLTZAL RS, OFF18 RA = PC + 8; IF RS < 0, PC += OFF18
±
BNE RS, RT, OFF18 IF RS ≠ RT, PC += OFF18
±
BNEZ RS, OFF18 IF RS ≠ 0, PC += OFF18
±
J ADDR28 PC = PC
31:28
:: ADDR28
∅
JAL ADDR28 RA = PC + 8; PC = PC
31:28
:: ADDR28
∅
JALR RD, RS RD = PC + 8; PC = RS
JR RS PC = RS
LOAD AND STORE OPERATIONS
LB RD, OFF16(RS) RD = MEM8(RS + OFF16
±
)
±
LBU RD, OFF16(RS) RD = MEM8(RS + OFF16
±
)
∅
LH RD, OFF16(RS) RD = MEM16(RS + OFF16
±
)
±
LHU RD, OFF16(RS) RD = MEM16(RS + OFF16
±
)
∅
LW RD, OFF16(RS) RD = MEM32(RS + OFF16
±
)
LWL RD, OFF16(RS) RD = LOADWORDLEFT(RS + OFF16
±
)
LWR RD, OFF16(RS) RD = LOADWORDRIGHT(RS + OFF16
±
)
SB RS, OFF16(RT) MEM8(RT + OFF16
±
) = RS
7:0
SH RS, OFF16(RT) MEM16(RT + OFF16
±
) = RS
15:0
SW RS, OFF16(RT) MEM32(RT + OFF16
±
) = RS
SWL RS, OFF16(RT) STOREWORDLEFT(RT + OFF16
±
, RS)
SWR RS, OFF16(RT) STOREWORDRIGHT(RT + OFF16
±
, RS)
ULW RD, OFF16(RS) RD = UNALIGNED_MEM32(RS + OFF16
±
)
USW RS, OFF16(RT) UNALIGNED_MEM32(RT + OFF16
±
) = RS
ATOMIC READ-MODIFY-WRITE OPERATIONS
LL RD, OFF16(RS) RD = MEM32(RS + OFF16
±
); LINK
SC RD, OFF16(RS)
IF ATOMIC, MEM32(RS + OFF16
±
) = RD;
RD = ATOMIC ? 1 : 0
MD00565 Revision 01.01
