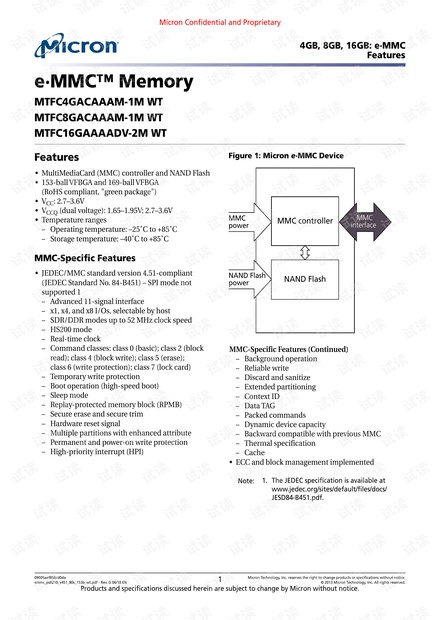

e·MMC™ Memory

MTFC4GACAAAM-1M WT

MTFC8GACAAAM-1M WT

MTFC16GAAAADV-2M WT

Features

• MultiMediaCard (MMC) controller and NAND Flash

• 153-ball VFBGA and 169-ball VFBGA

(RoHS compliant, "green package")

• V

: 2.7–3.6V

• V

CCQ

(dual voltage): 1.65–1.95V; 2.7–3.6V

• Temperature ranges

– Operating temperature: –25˚C to +85˚C

– Storage temperature: –40˚C to +85˚C

MMC-Specific Features

• JEDEC/MMC standard version 4.51-compliant

(JEDEC Standard No. 84-B451) – SPI mode not

supported 1

– Advanced 11-signal interface

– x1, x4, and x8 I/Os, selectable by host

– SDR/DDR modes up to 52 MHz clock speed

– HS200 mode

– Real-time clock

– Command classes: class 0 (basic); class 2 (block

read); class 4 (block write); class 5 (erase);

class 6 (write protection); class 7 (lock card)

– Temporary write protection

– Boot operation (high-speed boot)

– Sleep mode

– Replay-protected memory block (RPMB)

– Secure erase and secure trim

– Hardware reset signal

– Multiple partitions with enhanced attribute

– Permanent and power-on write protection

– High-priority interrupt (HPI)

Figure 1: Micron e·MMC Device

MMC controller

MMC

power

NAND Flash

power

MMC

interface

NAND Flash

MMC-Specific Features (Continued)

– Background operation

– Reliable write

– Discard and sanitize

– Extended partitioning

– Context ID

– Data TAG

– Packed commands

– Dynamic device capacity

– Backward compatible with previous MMC

– Thermal specification

– Cache

• ECC and block management implemented

Note:

1. The JEDEC specification is available at

www.jedec.org/sites/default/files/docs/

JESD84-B451.pdf.

Micron Confidential and Proprietary

4GB, 8GB, 16GB: e·MMC

Features

09005aef856cd0da

emmc_ps8210_v451_80s_153b_wt.pdf - Rev. G 06/18 EN

Micron Technology, Inc. reserves the right to change products or specifications without notice.

Products and specifications discussed herein are subject to change by Micron without notice.

Important Notes and Warnings

Micron Technology, Inc. ("Micron") reserves the right to make changes to information published in this document,

including without limitation specifications and product descriptions. This document supersedes and replaces all

information supplied prior to the publication hereof. You may not rely on any information set forth in this docu-

ment if you obtain the product described herein from any unauthorized distributor or other source not authorized

by Micron.

Automotive Applications. Products are not designed or intended for use in automotive applications unless specifi-

cally designated by Micron as automotive-grade by their respective data sheets. Distributor and customer/distrib-

utor shall assume the sole risk and liability for and shall indemnify and hold Micron harmless against all claims,

costs, damages, and expenses and reasonable attorneys' fees arising out of, directly or indirectly, any claim of

product liability, personal injury, death, or property damage resulting directly or indirectly from any use of non-

automotive-grade products in automotive applications. Customer/distributor shall ensure that the terms and con-

ditions of sale between customer/distributor and any customer of distributor/customer (1) state that Micron

products are not designed or intended for use in automotive applications unless specifically designated by Micron

as automotive-grade by their respective data sheets and (2) require such customer of distributor/customer to in-

demnify and hold Micron harmless against all claims, costs, damages, and expenses and reasonable attorneys'

fees arising out of, directly or indirectly, any claim of product liability, personal injury, death, or property damage

resulting from any use of non-automotive-grade products in automotive applications.

Critical Applications. Products are not authorized for use in applications in which failure of the Micron compo-

nent could result, directly or indirectly in death, personal injury, or severe property or environmental damage

("Critical Applications"). Customer must protect against death, personal injury, and severe property and environ-

mental damage by incorporating safety design measures into customer's applications to ensure that failure of the

Micron component will not result in such harms. Should customer or distributor purchase, use, or sell any Micron

component for any critical application, customer and distributor shall indemnify and hold harmless Micron and

its subsidiaries, subcontractors, and affiliates and the directors, officers, and employees of each against all claims,

costs, damages, and expenses and reasonable attorneys' fees arising out of, directly or indirectly, any claim of

product liability, personal injury, or death arising in any way out of such critical application, whether or not Mi-

cron or its subsidiaries, subcontractors, or affiliates were negligent in the design, manufacture, or warning of the

Micron product.

Customer Responsibility. Customers are responsible for the design, manufacture, and operation of their systems,

applications, and products using Micron products. ALL SEMICONDUCTOR PRODUCTS HAVE INHERENT FAIL-

URE RATES AND LIMITED USEFUL LIVES. IT IS THE CUSTOMER'S SOLE RESPONSIBILITY TO DETERMINE

WHETHER THE MICRON PRODUCT IS SUITABLE AND FIT FOR THE CUSTOMER'S SYSTEM, APPLICATION, OR

PRODUCT. Customers must ensure that adequate design, manufacturing, and operating safeguards are included

in customer's applications and products to eliminate the risk that personal injury, death, or severe property or en-

vironmental damages will result from failure of any semiconductor component.

Limited Warranty. In no event shall Micron be liable for any indirect, incidental, punitive, special or consequential

damages (including without limitation lost profits, lost savings, business interruption, costs related to the removal

or replacement of any products or rework charges) whether or not such damages are based on tort, warranty,

breach of contract or other legal theory, unless explicitly stated in a written agreement executed by Micron's duly

authorized representative.

Micron Confidential and Proprietary

4GB, 8GB, 16GB: e·MMC

Important Notes and Warnings

09005aef856cd0da

emmc_ps8210_v451_80s_153b_wt.pdf - Rev. G 06/18 EN

Micron Technology, Inc. reserves the right to change products or specifications without notice.
