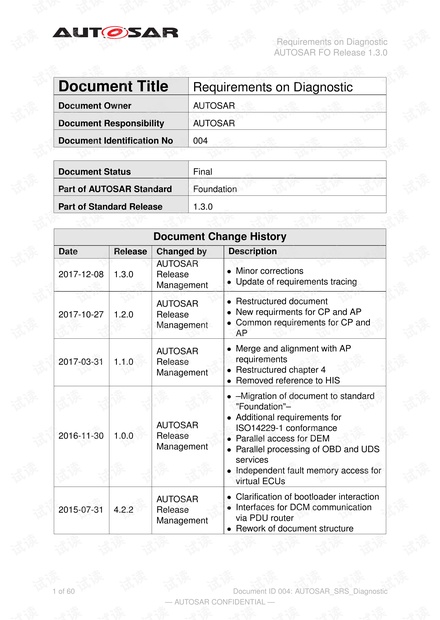

Requirements on Diagnostic
AUTOSAR FO Release 1.3.0
Table of Contents
1 Scope of the Document 10
2 Acronyms and Abbreviations 10
3 Conventions to be used 11
4 Requirements Specification 12
4.1 Common Diagnostic requirements for Classic and Adaptive Platform . 12
[SRS_Diag_04200] Support event combination . . . . . . . . . . . . . . 12
[SRS_Diag_04150] Support the primary fault memory defined by ISO
14229-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
[SRS_Diag_04214] Support the user defined fault memories defined by
ISO 14229-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
[SRS_Diag_04068] Event specific debounce algorithms . . . . . . . . . 13
[SRS_Diag_04115] The optional parameter DTCSettingControlOption-
Record as part of UDS service ControlDTCSetting shall be
limited to GroupOfDTC . . . . . . . . . . . . . . . . . . . . . 14
[SRS_Diag_04164] Independent event memories for multiple diagnostic
server instances (virtual ECUs) . . . . . . . . . . . . . . . . . 14
[SRS_Diag_04064] Buffers of scalable sizes for the storage of the
events, status information and environmental data . . . . . . 14
[SRS_Diag_04172] Inform external service processors about outcome
of the final response . . . . . . . . . . . . . . . . . . . . . . . 15
[SRS_Diag_04127] Configurable record numbers and trigger options for
DTCSnapshotRecords and DTCExtendedDataRecords . . . 15
[SRS_Diag_04177] Custom diagnostic services . . . . . . . . . . . . . . 16
[SRS_Diag_04059] Configuration of timing parameters . . . . . . . . . . 16
[SRS_Diag_04033] Support the upload/download services for read-
ing/writing data in an ECU in an extended and manufacturer
specific diagnostic session . . . . . . . . . . . . . . . . . . . 16
[SRS_Diag_04020] Suppress responses to diagnostic tool requests . . 16
[SRS_Diag_04119] Handle the execution of diagnostic services accord-
ing to the assigned diagnostic session . . . . . . . . . . . . . 17
[SRS_Diag_04016] Support ”Busy handling” by sending a negative re-
sponse 0x78 . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
[SRS_Diag_04006] Manage session handling . . . . . . . . . . . . . . . 17
[SRS_Diag_04005] Manage Security Access level handling . . . . . . . 18
[SRS_Diag_04135] Support UDS service $38 (RequestFileTransfer) . . 18
[SRS_Diag_04100] Interface for logging and tracing . . . . . . . . . . . 19
[SRS_Diag_04098] Interact with standard bootloader . . . . . . . . . . . 19
[SRS_Diag_04159] Control of DTC storage . . . . . . . . . . . . . . . . 20
[SRS_Diag_04157] Reporting of DTCs and related data . . . . . . . . . 20
[SRS_Diag_04156] Support DTCFunctionalUnit . . . . . . . . . . . . . 20
5 of 60
— AUTOSAR CONFIDENTIAL —
Document ID 004: AUTOSAR_SRS_Diagnostic
