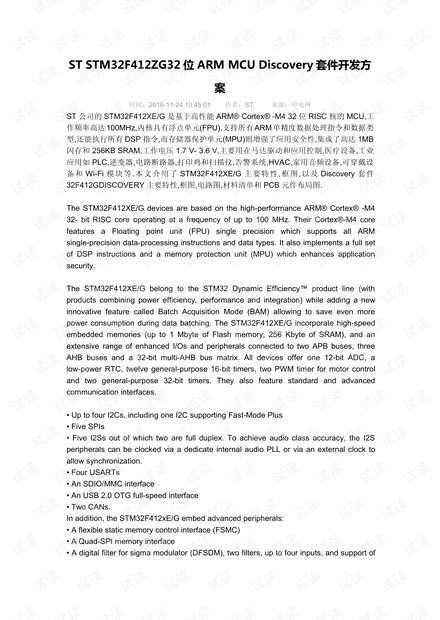

ST STM32F412ZG32 位 ARM MCU Discovery 套件开发方
案
时间:2016-11-24 10:45:01 作者:ST 来源:中电网
ST 公司的 STM32F412XE/G 是基于高性能 ARM® Cortex® -M4 32 位 RISC 核的 MCU,工
作频率高达 100MHz,内核具有浮点单元(FPU),支持所有 ARM 单精度数据处理指令和数据类
型,还能执行所有 DSP 指令,而存储器保护单元(MPU)则增强了应用安全性,集成了高达 1MB
闪存和 256KB SRAM,工作电压 1.7 V- 3.6 V,主要用在马达驱动和应用控制,医疗设备,工业
应用如 PLC,逆变器,电路断路器,打印鸡和扫描仪,告警系统,HVAC,家用音频设备,可穿戴设
备和 Wi-Fi 模 块 等.本文介绍了 STM32F412XE/G 主要特性,框图,以及 Discovery 套件
32F412GDISCOVERY 主要特性,框图,电路图,材料清单和 PCB 元件布局图.
The STM32F412XE/G devices are based on the high-performance ARM® Cortex® -M4
32- bit RISC core operating at a frequency of up to 100 MHz. Their Cortex®-M4 core
features a Floating point unit (FPU) single precision which supports all ARM
single-precision data-processing instructions and data types. It also implements a full set
of DSP instructions and a memory protection unit (MPU) which enhances application
security.
The STM32F412XE/G belong to the STM32 Dynamic Efficiency™ product line (with
products combining power efficiency, performance and integration) while adding a new
innovative feature called Batch Acquisition Mode (BAM) allowing to save even more
power consumption during data batching. The STM32F412XE/G incorporate high-speed
embedded memories (up to 1 Mbyte of Flash memory, 256 Kbyte of SRAM), and an
extensive range of enhanced I/Os and peripherals connected to two APB buses, three
AHB buses and a 32-bit multi-AHB bus matrix. All devices offer one 12-bit ADC, a
low-power RTC, twelve general-purpose 16-bit timers, two PWM timer for motor control
and two general-purpose 32-bit timers. They also feature standard and advanced
communication interfaces.
• Up to four I2Cs, including one I2C supporting Fast-Mode Plus
• Five SPIs
• Five I2Ss out of which two are full duplex. To achieve audio class accuracy, the I2S
peripherals can be clocked via a dedicate internal audio PLL or via an external clock to
allow synchronization.
• Four USARTs
• An SDIO/MMC interface
• An USB 2.0 OTG full-speed interface
• Two CANs.
In addition, the STM32F412xE/G embed advanced peripherals:
• A flexible static memory control interface (FSMC)
• A Quad-SPI memory interface
• A digital filter for sigma modulator (DFSDM), two filters, up to four inputs, and support of

microphone MEMs. The STM32F412xE/G are offered in 7 packages ranging from 48 to
144 pins.
The STM32F412xE/G operates in the –40 to + 105 ℃ temperature range from a 1.7
(PDR OFF) to 3.6 V power supply. A comprehensive set of power-saving mode allows the
design of low-power applications.
These features make the STM32F412xE/G microcontrollers suitable for a wide range of
applications:
• Motor drive and application control
• Medical equipment
• Industrial applications: PLC,inverters, circuit breakers
• Printers, and scanners
• Alarm systems, video intercom, and HVAC
• Home audio appliances
• Mobile phone sensor hub
• Wearable devices
• Connected objects
• Wifi modules
STM32F412XE/G
主要特性
:
• Dynamic Efficiency Line with BAM (Batch Acquisition Mode)
• Core: ARM® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART
Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 100
MHz, memory protection unit, 125 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP
instructions
• Memories
– Up to 1 Mbyte of Flash memory
– 256 Kbyte of SRAM
– Flexible external static memory controller with up to 16-bit data bus: SRAM, PSRAM,
NOR Flash memory
– Dual mode Quad-SPI interface
• LCD parallel interface, 8080/6800 modes
• Clock, reset and supply management
– 1.7 V to 3.6 V application supply and I/Os
– POR, PDR, PVD and BOR
– 4-to-26 MHz crystal oscillator
– Internal 16 MHz factory-trimmed RC
– 32 kHz oscillator for RTC with calibration
– Internal 32 kHz RC with calibration
• Power consumption
– Run: 112 μA/MHz (peripheral off)
– Stop (Flash in Stop mode, fast wakeup time): 50 μATyp @ 25 ℃; 75 μA max @25 ℃
– Stop (Flash in Deep power down mode, slow wakeup time): down to 18 μA @ 25 ℃; 40
μA max @25 ℃

– Standby: 2.4 μA @25 ℃ / 1.7 V without RTC; 12 μA @85 ℃ @1.7 V
– VBAT supply for RTC: 1 μA @25 ℃
• 1×12-bit, 2.4 MSPS ADC: up to 16 channels
• 2x digital filters for sigma delta modulator, 4x PDM interfaces, stereo microphone
support
• General-purpose DMA: 16-stream DMA
• Up to 17 timers: up to twelve 16-bit timers, two 32-bit timers up to 100 MHz each with up
to four IC/OC/PWM or pulse counter and quadrature (incremental) encoder input, two
watchdog timers (independent and window), one SysTick timer
• Debug mode
– Serial wire debug (SWD) & JTAG
– Cortex ? -M4 Embedded Trace Macrocell™
• Up to 114 I/O ports with interrupt capability
– Up to 109 fast I/Os up to 100 MHz
– Up to 114 five V-tolerant I/Os
• Up to 17 communication interfaces
– Up to 4x I2C interfaces (SMBus/PMBus)
– Up to 4 USARTs (2 x 12.5 Mbit/s, 2 x 6.25 Mbit/s), ISO 7816 interface, LIN, IrDA,
modem control)
– Up to 5 SPI/I2Ss (up to 50 Mbit/s, SPI or I2S audio protocol), out of which 2 muxed
full-duplex I2S interfaces
– SDIO interface (SD/MMC/eMMC)
– Advanced connectivity: USB 2.0 full-speed device/host/OTG controller with PHY
– 2x CAN (2.0B Active)
• True random number generator
• CRC calculation unit
• 96-bit unique ID
• RTC: subsecond accuracy, hardware calendar
• All packages are ECOPACK®2
