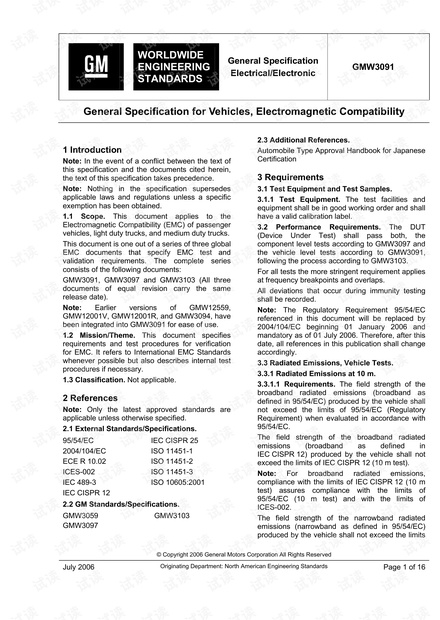

WORLDWIDE
ENGINEERING
STANDARDS
General Specification
Electrical/Electronic
GMW3091
General Specification for Vehicles, Electromagnetic Compatibility
© Copyright 2006 General Motors Corporation All Rights Reserved
July 2006
Originating Department: North American Engineering Standards
Page 1 of 16
1 Introduction
Note: In the event of a conflict between the text of
this specification and the documents cited herein,
the text of this specification takes precedence.
Note: Nothing in the specification supersedes
applicable laws and regulations unless a specific
exemption has been obtained.
1.1 Scope. This document applies to the
Electromagnetic Compatibility (EMC) of passenger
vehicles, light duty trucks, and medium duty trucks.
This document is one out of a series of three global
EMC documents that specify EMC test and
validation requirements. The complete series
consists of the following documents:
GMW3091, GMW3097 and GMW3103 (All three
documents of equal revision carry the same
release date).
Note: Earlier versions of GMW12559,
GMW12001V, GMW12001R, and GMW3094, have
been integrated into GMW3091 for ease of use.
1.2 Mission/Theme. This document specifies
requirements and test procedures for verification
for EMC. It refers to International EMC Standards
whenever possible but also describes internal test
procedures if necessary.
1.3 Classification. Not applicable.
2 References
Note: Only the latest approved standards are
applicable unless otherwise specified.
2.1 External Standards/Specifications.
95/54/EC IEC CISPR 25
2004/104/EC ISO 11451-1
ECE R 10.02 ISO 11451-2
ICES-002 ISO 11451-3
IEC 489-3 ISO 10605:2001
IEC CISPR 12
2.2 GM Standards/Specifications.
GMW3059 GMW3103
GMW3097
2.3 Additional References.
Automobile Type Approval Handbook for Japanese
Certification
3 Requirements
3.1 Test Equipment and Test Samples.
3.1.1 Test Equipment. The test facilities and
equipment shall be in good working order and shall
have a valid calibration label.
3.2 Performance Requirements. The DUT
(Device Under Test) shall pass both, the
component level tests according to GMW3097 and
the vehicle level tests according to GMW3091,
following the process according to GMW3103.
For all tests the more stringent requirement applies
at frequency breakpoints and overlaps.
All deviations that occur during immunity testing
shall be recorded.
Note: The Regulatory Requirement 95/54/EC
referenced in this document will be replaced by
2004/104/EC beginning 01 January 2006 and
mandatory as of 01 July 2006. Therefore, after this
date, all references in this publication shall change
accordingly.
3.3 Radiated Emissions, Vehicle Tests.
3.3.1 Radiated Emissions at 10 m.
3.3.1.1 Requirements. The field strength of the
broadband radiated emissions (broadband as
defined in 95/54/EC) produced by the vehicle shall
not exceed the limits of 95/54/EC (Regulatory
Requirement) when evaluated in accordance with
95/54/EC.
The field strength of the broadband radiated
emissions (broadband as defined in
IEC CISPR 12) produced by the vehicle shall not
exceed the limits of IEC CISPR 12 (10 m test).
Note: For broadband radiated emissions,
compliance with the limits of IEC CISPR 12 (10 m
test) assures compliance with the limits of
95/54/EC (10 m test) and with the limits of
ICES-002.
The field strength of the narrowband radiated
emissions (narrowband as defined in 95/54/EC)
produced by the vehicle shall not exceed the limits

GMW3091 GM WORLDWIDE ENGINEERING STANDARDS
© Copyright 2006 General Motors Corporation All Rights Reserved
Page 2 of 16 July 2006
of 95/54/EC (Regulatory Requirement) when
evaluated in accordance with 95/54/EC.
The electrical system of the vehicle shall comply
with the following requirement: Automobile Type
Approval Handbook for Japanese Certification
(Paragraph 11-1, Article 17-2 (4), Electrical System
and Paragraph 11-2, Article 4-11A, Electric
System). Specifically, “The electrical system shall
not cause continuous and excessive radio
interference. The vehicle shall be regarded as
complying with this requirement when it has a radio
interference control device (such as high-voltage
electric resistive wires, external resistors etc.) for
the control of motor vehicle radio noise”.
3.3.1.2 Test Equipment. The test equipment shall
comply with the requirements of IEC CISPR 12.
3.3.1.3 Test Procedure.
3.3.1.3.1 For countries where compliance with
95/54/EC is required (legal requirement for
Europe), use test method 95/54/EC with the
following specification: The 10m distance shall be
used.
3.3.1.3.2 For countries where compliance with
ECE R 10.02 is required (legal requirement
applicable to some United Nations member
nations), use the test method per ECE R 10.02
with the following specification: The 10m distance
shall be used.
3.3.1.3.3 For all other countries use test method
IEC CISPR 12 with the following specification: The
10 m distance shall be used.
3.3.2 Interference to On-Board-Receivers.
3.3.2.1 Requirements. User bands are divided
into mandatory and optional bands/requirements.
All bands/requirements are mandatory unless
specifically excluded in the EMC test plan.
Narrowband emissions (narrowband as defined in
95/54/EC) shall not exceed the narrowband levels
for the antenna terminal voltage specified in
95/54/EC when evaluated in accordance with
95/54/EC.
The requirements apply to the complete vehicle
with all systems connected.
For systems comprised of both electronic
controllers and inductive loads (e.g. motors,
solenoids), both the “Non-Spark” and “Spark” limits
apply to the combined system. In this case the
average detector (AV) may be used in place of the
peak (PK) detector for the “Non-Spark” limit portion
of the test, if the combined emissions exceed the
“Non-Spark” limit. If the AV detector is used, the
requirement is more restrictive by 6 dB. This is an
exception based on the inability to detect the
module noise over the arcing noise of a motor
when using the PK detector.
Emissions shall not exceed the levels for the
antenna terminal voltage specified in Tables 1, 2,
and 3.
3.3.2.2 Test Equipment. The test equipment shall
comply with the requirements of IEC CISPR 25.
3.3.2.3 Test Procedure. Use test method
IEC CISPR 25 with the following specifications.
Noise is divided into three different categories:
• Spark generated noise: Noise generated by
sparks, such as ignition systems, brush type
motors etc.
• Non-spark generated noise: Noise generated
by electronic sources, such as
microprocessors, clocks, PWM etc.
• Switch pop noise: Noise generated due to
switching of a contact, such as brake light
switch, turn signal relays, etc.
In order to save test time it is allowed to measure
with bandwidth greater than specified above. If
noise measured under this condition exceeds the
requirements, the measurement has to be retaken
in those frequency bands with the specified
bandwidth to determine pass/fail.

GM WORLDWIDE ENGINEERING STANDARDS GMW3091
Table 1: Requirement for Non-Spark Radiated Emissions
ID #
Mandatory
/Optional
Region RF Service
Frequency
Range
(MHz)
Conditions
Non-Spark
Limit
(dBµV)
G1 M Global Medium Wave/AM 0.53 to 1.71 0 PK
G2a O Global 4 Meter 66 to 78.537 -4 AV
G2b O Global 4 Meter 78.537 to 79.988 -10 AV
G2c O Global 4 Meter 79.988 to 84.01 -4 AV
G2d O Global 4 Meter 84.01 to 87.2
RBW 9/10 kHz,
Step Size ≤ 5 kHz,
Time/Step > 5ms
-10 AV
JA1 O Japan FM I 76 to 90 6 PK
G3 M Global FM II 87.5 to 108
RBW 120 kHz,
Step Size ≤ 60 kHz,
Time/Step > 5ms
6 PK
G4a O Global 2 Meter 142 to 167.555 -4 AV
G4b O Global 2 Meter 167.555 to 169.385 -10 AV
G4c O Global 2 Meter 169.385 to 172.155 -4 AV
G4d O Global 2 Meter 172.155 to 173.985 -10 AV
G4e O Global 2 Meter 173.985 to 175 -4 AV
EU2 O Europe DAB I 174.1 to 240 0 AV
EU3a O Europe Tetra (Emergency) 380 to 400 -4 AV
EU3b O Europe Tetra (Civil) 400 to 430 6 AV
G8 O Global GPS
1567 to1574 -
1576 to 1583
RBW 9/10 kHz,
Step Size ≤ 5 kHz,
Time/Step > 5ms
40 - 0 -
0 -40 AV
Note: Band G2c (4m): 80 MHz ± 10 kHz excluded, if ensured that noise peaks remain within this channel
Note: Band G8: Requirement is 40 dBµV at 1567 MHz, decreasing linearly in frequency to 0 dBµV at 1574 MHz, 0 dBµV between 1574
and 1576 MHz, 0 dBµV at 1576 MHz increasing linearly in frequency to 40 dBµV at 1583 MHz
Note: If an active antenna is used, the noise floor may increase. The additional noise floor depends on the type of antenna and should be
accounted for using the following formula:
U
noise
= U
measured
2
- U
antennanoise
2
Table 2: Requirement for Spark Radiated Emissions
ID #
Mandatory
/Optional
Region RF Service
Frequency
Range
(MHz)
Conditions
Spark Limit
(dBµV)
G1 M Global
Medium Wave
/AM
0.53 to 1.71
RBW 9 kHz,
Step Size ≤ 20 kHz,
Time/Step 1 s
6 QP
G2 O Global 4 Meter 66 to 87.2 10 QP
JA1 O Japan FM I 76 to 90 6 (15
Note 1
) QP
G3 M Global FM II 87.5 to 108 6 (15
Note 1
) QP
G4 O Global 2 Meter 142 to 175 10 QP
EU2 O Europe DAB I 174.1 to 240 10 QP
EU3 O Europe Tetra 380 to 430
RBW 120 kHz,
Step Size ≤ 1 MHz,
Time/Step 1 s
10 QP
Note 1: Ignition noise only
© Copyright 2006 General Motors Corporation All Rights Reserved
July 2006 Page 3 of 16

GMW3091 GM WORLDWIDE ENGINEERING STANDARDS
© Copyright 2006 General Motors Corporation All Rights Reserved
Page 4 of 16 July 2006
Table 3: Requirement for Switch Pop Noise
ID #
Mandatory
/Optional
Region RF Service
Frequency
Range
(MHz)
Conditions
Switch Pop Limit
(dBµV)
G1 O Global
Medium Wave
/AM
0.53 to 1.71
RBW 9 kHz, Step
Size ≤ 50 kHz,
Time/Step 5 s
19 PK
Note: Requirement only applicable to noise sources of frequent actuation (e.g. brake light switch, turn signal relay, intermittent wiper).
Cycle switch or contact continuously during scan.
3.3.3 Subjective Radio Listen Test.
3.3.3.1 Requirements. The vehicle shall comply
with subjective rating (formerly known as GMUTS)
8 or better, as defined in Table 4, for spark
generated emissions, non-spark generated
emissions and switch pop noise sources (e.g.
brake light switch, intermittent wiper relays, turn
signal relays).
Use a signal of 30 dB above the antenna noise
floor for the Medium Wave band (G1) and 20 dB
above the antenna noise floor for the FM bands
(JA1 and G3) as measured with a Quasi Peak
detector.
This test is optional, based on the discretion of the
EMC engineer and can supersede the
requirements in Tables 1, 2, and 3.
3.3.3.2 Test Equipment. This test requires:
• Radiated emissions test equipment according
to the requirements of IEC CISPR 25 (see
paragraph 3.3.2 of this document).
• CD player used as audio signal source.
• CD with tracks of voice signals. All signals
shall be recorded in stereo.
• RF signal generator with a frequency range of
0.15 to 108 MHz capable of external AM and
FM modulation and with preemphasis (50 µs
and 75 µs) for the FM modulation. For 76 to
108 MHz stereo modulation is required. The
generator shall have an adjustable output
power level capable of generating a minimum
of 0 dBm.
• Modulation analyzer for measurement of
modulation index and deviation of the RF
signal (may be internal to the RF signal
generator).
3.3.3.3 Test Procedure. Use the CD player as a
modulation source for the RF signal generator. The
RF signal generator output shall be connected to a
suitable transmitting antenna (e.g. 85 cm rod
antenna) located approximately 1 m from the
vehicle radio antenna. The transmitting antenna
shall be positioned next to the vehicle and shall
have no contact with the vehicle.
Note: If CD player and RF signal generator are
located inside the anechoic chamber, care must be
taken to ensure that noise emitted by the test
equipment does not cause any interference to the
vehicle radio.
Using test method IEC CISPR 25 with the vehicle
inside an anechoic chamber determine the
unmodulated signal generator levels necessary to
generate a receiving antenna terminal voltage of:
• 30 dB signal to antenna noise floor for AM band
• 20 dB signal to antenna noise floor for FM band
Note: During determination of the necessary
transmission power care must be taken to avoid
the influence of persons inside the chamber. It is
recommended that those persons who will carry
out the subjective assessment are already sitting
inside the vehicle during this time.
Note: This test may also be performed in an open
field site. If suitable radio stations are available,
they may be used instead of the signal generator.
For evaluation of LW (EU1) and MW frequency
(G1) ranges use AM modulation. The measured
AM modulation shall be 80% for the loudest
passage of the CD.
For evaluation of the VHF (JA1 and G3) frequency
range use FM stereo modulation. For radios which
have a deemphasis of 75 µs (e.g. North America)
the preemphasis of the signal generator shall be
set to 75 µs. For radios which have a deemphasis
of 50 µs (e.g. Europe and Japan) the preemphasis
of the signal generator shall be set to 50 µs. The
measured deviation shall be 75 kHz for the loudest
passage of the CD.
Listen to the audio when modulating the RF signal
with voice signals. Assess its quality subjectively
using the subjective rating scale in Table 4.
剩余15页未读,继续阅读











安全验证
文档复制为VIP权益,开通VIP直接复制

评论0
