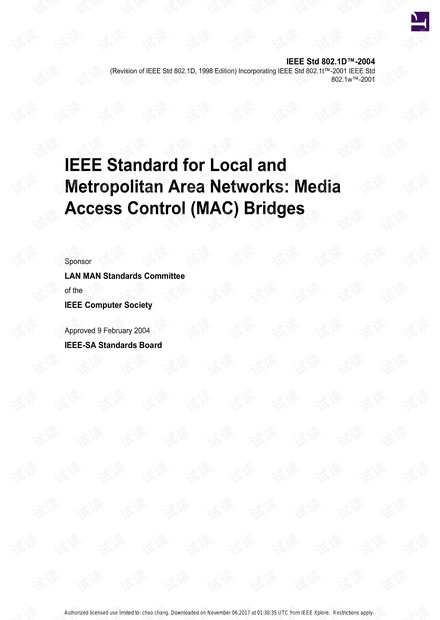

IEEE Std 802.1D™-2004
(Revision of IEEE Std 802.1D, 1998 Edition) Incorporating IEEE Std 802.1t™-2001 IEEE Std
802.1w™-2001
IEEE Standard for Local and
Metropolitan Area Networks: Media
Access Control (MAC) Bridges
Sponsor
LAN MAN Standards Committee
of the
IEEE Computer Society
Approved 9 February 2004
IEEE-SA Standards Board
Authorized licensed use limited to: chao chang. Downloaded on November 06,2017 at 01:30:35 UTC from IEEE Xplore. Restrictions apply.

Abstract: An architecture for the interconnection of IEEE 802
®
Local Area Networks (LANs)
below the MAC Service boundary is defined. MAC Bridges, as specified by this standard, allow
communications between end stations attached to separate LANs, each with its own separate
MAC, to be transparent to logical link control (LLC) and network layer protocols, just as if the
stations were attached to the same LAN.
Keywords: active topology filtering GARP GMRP LANs local area networks MAC Bridges MAC
Service MANs metropolitan area networks multicast registration transparent bridging quality of
service RSTP spanning tree
The Institute of Electrical and Eletronics Engineers, Inc.
3 Park Avenue, New York, NY 10016-5997, USA
Copyright © 2004 by the Institute of Electrical and Electronics Engineers, Inc.
All rights reserved. Published 9 June 2004. Printed in the United States of America.
IEEE and 802 are registered trademarks in the U.S. Patent Trademark Office, owned by the Institute of Electrical and Electronics Engineers,
Incorporated.
Print: 0-7381-3881-5 SH95213
PDF: 0-7381-3982-3 SS95213
No part of this publication may be reproduced in any form, in an electronic retrieval system or otherwise, without the prior written permission
of the publisher.
Authorized licensed use limited to: chao chang. Downloaded on November 06,2017 at 01:30:35 UTC from IEEE Xplore. Restrictions apply.

IEEE Standards documents are developed within the IEEE Societies and the Standards Coordinating
Committees of the IEEE Standards Association (IEEE-SA) Standards Board. The IEEE develops its
standards through a consensus development process, approved by the American National Standards Institute,
which brings together volunteers representing varied viewpoints and interests to achieve the final product.
Volunteers are not necessarily members of the Institute and serve without compensation. While the IEEE
administers the process and establishes rules to promote fairness in the consensus development process, the
IEEE does not independently evaluate, test, or verify the accuracy of any of the information contained in its
standards.
Use of an IEEE Standard is wholly voluntary. The IEEE disclaims liability for any personal injury, property
or other damage, of any nature whatsoever, whether special, indirect, consequential, or compensatory,
directly or indirectly resulting from the publication, use of, or reliance upon this, or any other IEEE Standard
document.
The IEEE does not warrant or represent the accuracy or content of the material contained herein, and
expressly disclaims any express or implied warranty, including any implied warranty of merchantability or
fitness for a specific purpose, or that the use of the material contained herein is free from patent infringement.
IEEE Standards documents are supplied “AS IS.”
The existence of an IEEE Standard does not imply that there are no other ways to produce, test, measure,
purchase, market, or provide other goods and services related to the scope of the IEEE Standard.
Furthermore, the viewpoint expressed at the time a standard is approved and issued is subject to change
brought about through developments in the state of the art and comments received from users of the standard.
Every IEEE Standard is subjected to review at least every five years for revision or reaffirmation. When
a document is more than five years old and has not been reaffirmed, it is reasonable to conclude that its
contents, although still of some value, do not wholly reflect the present state of the art. Users are cautioned
to check to determine that they have the latest edition of any IEEE Standard.
In publishing and making this document available, the IEEE is not suggesting or rendering professional or
other services for, or on behalf of, any person or entity. Nor is the IEEE undertaking to perform any duty
owed by any other person or entity to another. Any person utilizing this, and any other IEEE Standards
document, should rely upon the advice of a competent professional in determining the exercise of reasonable
care in any given circumstances.
Interpretations: Occasionally questions may arise regarding the meaning of portions of standards as they
relate to specific applications. When the need for interpretations is brought to the attention of IEEE, the
Institute will initiate action to prepare appropriate reponses. Since IEEE Standards represent a consensus
of concerned interests, it it important to ensure that any interpretation has also received the concurrence of
a balance of interests. For this reason, IEEE and the members of its societies and Standards Coordinating
Committees are not able to provide an instant response to interpretation requests except in those cases where
the matter has previously received formal consideration. At lectures, symposia, seminars, or educational
courses, an individual presenting information on IEEE standards shall make it clear that his or her views
should be considered the personal views of that individual rather than the formal position, explanation,
or interpretation of the IEEE. Current interpretations can be accessed at the following URL:
http://standards.ieee.org/reading/ieee/interp/index.html.
Errata, if any, for this and all other standards can be accessed at the following URL: http://standards.ieee.org/
reading/ieee/update/errata/index.html. Users are encouraged to check this URL for errata periodically.
Authorized licensed use limited to: chao chang. Downloaded on November 06,2017 at 01:30:35 UTC from IEEE Xplore. Restrictions apply.

Comments for revision of IEEE Standards are welcome from any interested party, regardless of membership
affiliation with IEEE. Suggestions for changes in documents should be in the form of a proposed change
of text, together with appropriate supporting comments. Comments on standards and requests for
interpretations should be addressed to:
Secretary, IEEE-SA Standards Board
445 Hoes Lane
P.O. Box 1331
Piscataway, NJ 08855-1331USA
NOTE — Attention is called to the possibility that implementation of this standard may require use of
subject matter covered by patent rights. By publication of this standard, no position is taken with respect
to te existence or validity of any patent rights in connection therewith. The IEEE shall not be responsible
for identifying patents for which a license may be required by an IEEE standard or for conducting
inquiries into the legal validity or scope of those patents that are brought to its attention.
Authorization to photocopy portions of any individual standard for internal or personal use is granted
by the Institute of Electrical and Electronics Engineers, Inc., provided that the appropriate fee is paid to
Copyright Clearance Center. To arrange for payment of licensing fee, please contact Copyright Clearance
Center, Customer Service, 222 Rosewood Drive, Danvers, MA 01923 USA; +1 978 750 8400. Permission
to photocopy portions of any individual standard for educational classroom use can also be obtained through
the Copyright Clearance Center.
Authorized licensed use limited to: chao chang. Downloaded on November 06,2017 at 01:30:35 UTC from IEEE Xplore. Restrictions apply.

Introduction
[This introduction is not part of IEEE Std 802.1D-2004, IEEE Standard for Local and Metropolitan Area
Networks: Media Access Control (MAC) Bridges.]
The MAC Bridge standardization activities that resulted in the development of IEEE Std 802.1D-1990
(subsequently republished as IEEE Std 802.1D, 1993 Edition [ISO/IEC 10038:1993] and IEEE Std 802.1D,
1998 Edition [ISO/IEC 15802-3: 1998]) specified an architecture and protocol for the interconnection of
IEEE 802 LANs below the MAC Service boundary.
The 2004 revision of this standard incorporates two amendments into the 1998 Edition:
a. IEEE Std 802.1t-2001, technical and editorial corrections to the 1998 Edition; and
b. IEEE Std 802.1w-2001, Rapid Reconfiguration, which specified the Rapid Spanning Tree
Algorithm and Protocol (RSTP).
In addition, this revision includes further technical and editorial corrections, and removes the original
Spanning Tree Protocol (STP) as a conformance option.
Relationship between IEEE Std 802.1D and IEEE Std 802.1Q
Another IEEE standard, IEEE Std 802.1Q™-2003, extends the concepts of MAC Bridging and filtering
services to support the definition and management of Virtual LANs (VLANs).
The capabilities defined in IEEE Std 802.1Q-2003 include the definition of a VLAN frame format that is
able to carry VLAN identification and user priority information over LAN technologies, such as CSMA/CD,
that have no inherent capability to signal priority information. This information is carried in an additional
header field, known as the Tag Header, which is inserted immediately following the Destination MAC
Address, and Source MAC Address (and Routing Information field, if present) of the original frame. IEEE
Std 802.1Q-2003 extends the priority handling aspects of this standard to make use of the ability of the
VLAN frame format to carry user priority information end to end across any set of concatenated underlying
MACs.
The VLAN Bridging specification contained in IEEE Std 802.1Q-2003 is independent of this standard, in the
sense that IEEE Std 802.1Q-2003 contains its own statement of the conformance requirements for VLAN
Bridges. However, IEEE Std 802.1Q-2003 makes use of many of the elements of the specification contained
in this standard, in particular
a. The Bridge architecture
b. The Internal Sublayer Service, and the specification of its provision by IEEE 802 LAN MACs
c. The major features of the operation of the forwarding process
d. The Rapid Spanning Tree Protocol
e. The Generic Attribute Registration Protocol (GARP)
f. The GARP Multicast Registration Protocol (GMRP)
Since the original Spanning Tree Protocol (STP) has been removed from the 2004 revision of IEEE Std
802.1D, an implementation of RSTP is required for any claim of conformance for an implementation of
IEEE Std 802.1Q-2003 that refers to the current revision of IEEE Std 802.1D unless that implementation
