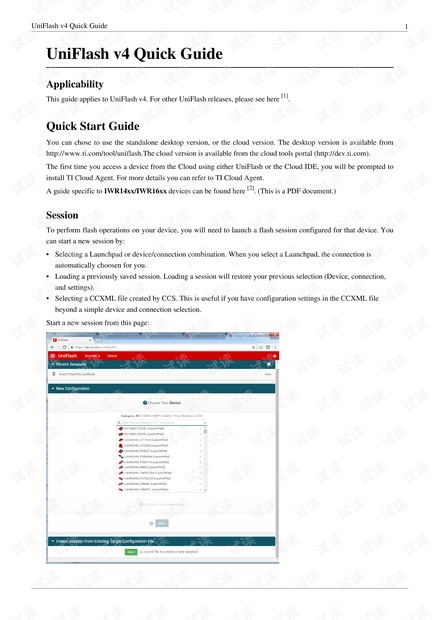

UniFlash v4 Quick Guide
1
UniFlash v4 Quick Guide
Applicability
This guide applies to UniFlash v4. For other UniFlash releases, please see here
[1]
.
Quick Start Guide
You can chose to use the standalone desktop version, or the cloud version. The desktop version is available from
http:/ / www. ti. com/ tool/ uniflash. The cloud version is available from the cloud tools portal (http:/ / dev. ti. com).
The first time you access a device from the Cloud using either UniFlash or the Cloud IDE, you will be prompted to
install TI Cloud Agent. For more details you can refer to TI Cloud Agent.
A guide specific to IWR14xx/IWR16xx devices can be found here
[2]
. (This is a PDF document.)
Session
To perform flash operations on your device, you will need to launch a flash session configured for that device. You
can start a new session by:
•• Selecting a Launchpad or device/connection combination. When you select a Launchpad, the connection is
automatically choosen for you.
•• Loading a previously saved session. Loading a session will restore your previous selection (Device, connection,
and settings).
•• Selecting a CCXML file created by CCS. This is useful if you have configuration settings in the CCXML file
beyond a simple device and connection selection.
Start a new session from this page:
