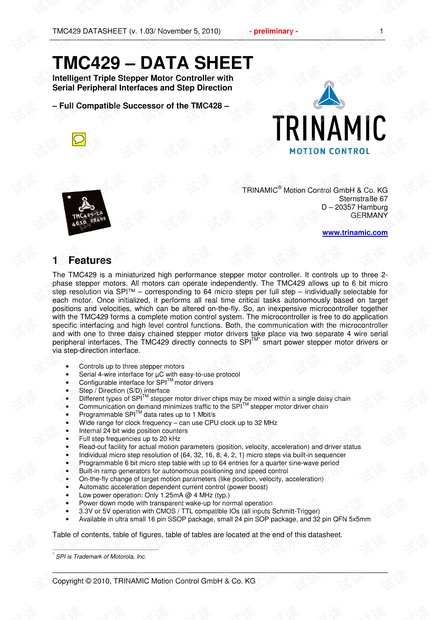

TMC429 DATASHEET (v. 1.03/ November 5, 2010) - preliminary - 1
Copyright © 2010, TRINAMIC Motion Control GmbH & Co. KG
TMC429 – DATA SHEET
Intelligent Triple Stepper Motor Controller with
Serial Peripheral Interfaces and Step Direction
– Full Compatible Successor of the TMC428 –
TRINAMIC
®
Motion Control GmbH & Co. KG
Sternstraße 67
D – 20357 Hamburg
GERMANY
www.trinamic.com
1 Features
The TMC429 is a miniaturized high performance stepper motor controller. It controls up to three 2-
phase stepper motors. All motors can operate independently. The TMC429 allows up to 6 bit micro
step resolution via SPI™ – corresponding to 64 micro steps per full step – individually selectable for
each motor. Once initialized, it performs all real time critical tasks autonomously based on target
positions and velocities, which can be altered on-the-fly. So, an inexpensive microcontroller together
with the TMC429 forms a complete motion control system. The microcontroller is free to do application
specific interfacing and high level control functions. Both, the communication with the microcontroller
and with one to three daisy chained stepper motor drivers take place via two separate 4 wire serial
peripheral interfaces. The TMC429 directly connects to SPI
TM*
smart power stepper motor drivers or
via step-direction interface.
• Controls up to three stepper motors
• Serial 4-wire interface for µC with easy-to-use protocol
• Configurable interface for SPI
TM
motor drivers
• Step / Direction (S/D) interface
• Different types of SPI
TM
stepper motor driver chips may be mixed within a single daisy chain
• Communication on demand minimizes traffic to the SPI
TM
stepper motor driver chain
• Programmable SPI
TM
data rates up to 1 Mbit/s
• Wide range for clock frequency – can use CPU clock up to 32 MHz
• Internal 24 bit wide position counters
• Full step frequencies up to 20 kHz
• Read-out facility for actual motion parameters (position, velocity, acceleration) and driver status
• Individual micro step resolution of {64, 32, 16, 8, 4, 2, 1} micro steps via built-in sequencer
• Programmable 6 bit micro step table with up to 64 entries for a quarter sine-wave period
• Built-in ramp generators for autonomous positioning and speed control
• On-the-fly change of target motion parameters (like position, velocity, acceleration)
• Automatic acceleration dependent current control (power boost)
• Low power operation: Only 1.25mA @ 4 MHz (typ.)
• Power down mode with transparent wake-up for normal operation
• 3.3V or 5V operation with CMOS / TTL compatible IOs (all inputs Schmitt-Trigger)
• Available in ultra small 16 pin SSOP package, small 24 pin SOP package, and 32 pin QFN 5x5mm
Table of contents, table of figures, table of tables are located at the end of this datasheet.
*
SPI is Trademark of Motorola, Inc.

TMC429 DATASHEET (v. 1.03/ November 5, 2010) - preliminary - 2
Copyright © 2010, TRINAMIC Motion Control GmbH & Co. KG
Life support policy
TRINAMIC Motion Control GmbH & Co. KG does not
authorize or warrant any of its products for use in life
support systems, without the specific written consent
of TRINAMIC Motion Control GmbH & Co. KG.
Life support systems are equipment intended to
support or sustain life, and whose failure to perform,
when properly used in accordance with instructions
provided, can be reasonably expected to result in
personal injury or death.
© 2010, TRINAMIC Motion Control GmbH & Co. KG
Information given in this data sheet is believed to be
accurate and reliable. However no responsibility is
assumed for the consequences of its use nor for any
infringement of patents or other rights of third parties
which may result from its use.
Specifications subject to change without notice.

TMC429 DATASHEET (v. 1.03/ November 5, 2010) - preliminary - 3
Copyright © 2010, TRINAMIC Motion Control GmbH & Co. KG
2 TMC429 vs. TMC428
The TMC429 is the 100% functional compatible and pin compatible successor of the TMC428. The
TMC429 can be used as a TMC428 in existing hardware / software environments. There are some
additional functions of the TMC429 that are mapped in register address ranges that where indicated
reserverd addresses for later versions. Without access to these additional registers of the TMC429, the
TMC429 behaves identically as a TMC428. The TMC429 has a step/direction interface that perfect fits
to the TRINAMIC stepper motor driver family TMC260, TMC261, and TMC262. The TMC428 can be
clocked up to 16MHz where the TMC429 can be clocked with up to 32MHz. Registers, that are
available for the TMC429 only are labled with _429 (e.g. register if_configuration_429). The additional
TMC429 registers are described in sections 10.4, 10.5, 10.6,10.7, 10.9 and their sub-sections.
3 General Description
The TMC429 is a miniaturized high performance stepper motor controller with a unique price /
performance ratio for both, high volume automotive and for demanding industrial motion control
applications. Once initialized, the TMC429 controls up to three 2-phase stepper motors. Its low price
makes it attractive also for applications, where only one or two stepper motors have to be controlled
simultaneously.
The TMC429 performs all real time critical tasks autonomously. Thus a low cost microcontroller is
sufficient to perform the tasks of initialization, application specific interfacing, and to specify target
positions and velocities. The TMC429 allows on-the-fly change of all motion target parameters also
during motion. Any other parameter may be changed at any time– also during motion –which does not
make sense in any case, but this uniform access to any TMC429 register simplifies application
programming. Read-back option for all internal registers simplifies programming. With its internal
position counters, the TMC429 can perform up to 2
23
steps respectively micro steps fully independent
from the microcontroller. The step resolution– individually programmable for each stepper motor –
ranges from full step (1 ‘’micro step’’ is one full step), half step (2 ‘’micro steps’’ per full step), up to 6
bit micro stepping (64 micro steps per full step) for precise positioning and noiseless stepper motor
rotation (Table 9-8, page 29). Optionally, the micro step table– common for all motors –can be adapted
to motor characteristics to further reduce torque ripple.
The TMC429 has got serial interfaces for communication with the microcontroller and for the stepper
motor drivers. The serial interface for the microcontroller uses a fixed length of 32 bits with a simple
protocol, directly connecting to SPI
TM
interfaces. The serial interface to the stepper motor drivers is
flexibly configurable for different types– even from different vendors –with up to 64 bit length for the
SPI daisy chain. TRINAMIC smart power stepper motor drivers TMC236, TMC239 and TMC246,
TMC249 perfectly fit to the TMC429. Without additional hardware, drivers with same serial interface
polarities of chip select and clock signals may be mixed in a single chain. To mix drivers with different
serial interface polarities, additional inverters (e.g. 74HC04, 74HC14) are required. For those driver
chips without serial data output, two additional variants of the TMC429 with two additional chip select
outputs are available. The TMC429 sends data to the driver chain on demand only, which minimizes
the interface traffic and reduces the power consumption.
Hint: Unused reference switch inputs (REF1, REF2, and REF3) should be pulled to ground (Figure
3-3). With this one can connect reference switches that connect to +5V resp. +3.3V when pushed.
Concerning different reference switch configurations please refer to Figure 10-4, Figure 10-5, Figure
10-7.

TMC429 DATASHEET (v. 1.03/ November 5, 2010) - preliminary - 4
Copyright © 2010, TRINAMIC Motion Control GmbH & Co. KG
Figure 1: TMC429 within QFN32 package.
All signals of the TMC429 are available for the QFN32 package. This package is recommended,
especially for the TMC260, TMC261, and TMC262 stepper motor drivers using step/direction interface.
Figure 2: TMC429 / TMC26x outline for configuration via SPI and step direction for motion (only
SPI signals and Step/Direcction signals drawn).
Application environment of TMC429 in QFN32 package and 3 x TMC26x stepper motor driver; one SPI
chip select signal CSN_0 selects the TMC429 SPI micro controller interface, and (up to) three SPI chip
select signals (CSN_3, CSN_2, CSN1) select the (up tp) three TMC262 SPI for configuration; the
TMC429 SDOZ_C is high impedance when nSCS_C is '1'.

TMC429 DATASHEET (v. 1.03/ November 5, 2010) - preliminary - 5
Copyright © 2010, TRINAMIC Motion Control GmbH & Co. KG
10K
SCK_S
SDO_S
SDI_S
nSCS_S
SDO
CSN
SDI
SCK
SDO
CSN
SDI
SCK
SDO
CSN
SDI
SCK
TMC23x / TMC24x TMC23x / TMC24x TMC23x / TMC24x
REF2 REF3
REF1
TEST GND
µC
SCK
MOSI
MISO
SS
SDI_C
nSCS_C
SCK_C
SDO_C
CLK
CLK
V5V33
470
nF
+5 V
1K 1K
Reference Switch Inputs
(active high)
SM#3 SM#2 SM#1
TMC428-I /
TMC428-A
1K
100 nF
*For details concerning electrical connections of
the TMC236 / TMC239 / TMC246 / TMC249
refer to its datasheet.
* * *
Note:
output SDO_C will
nerver be high impedance
Figure 3-3: TMC428 application environment with TMC428 in SSOP16 package
10K
SCK_S
SDO_S
SDI_S
nSCS_S
nSCS
SDI
SCK
nSCS
SDI
SCK
nSCS
SDI
SCK
Driver
w/o SDO
Driver
w/o SDO
REF2 REF3
REF1
TEST GND
µC
SCK
MOSI
MISO
SS
SDI_C
nSCS_C
SCK_C
SDO_C
CLK
CLK V5V33
470 nF
+5 V
SM#3 SM#2 SM#1
TMC428-PI24 /
TMC428-DI20
nSCS2
nSCS3
SDO
V5 GND
Note:
output SDO_C will
nerver be high impedance
Driver
w/o SDO
Figure 3-4: Usage of drivers without serial data output (SDO) with TMC428 in larger packages
(*the DI20 package variant is not recommended for new designs)
3.1 Step Frequencies
The maximum SPI
TM
data rate is the clock frequency divided by 16. The maximum step frequency
depends on the total length of the datagrams sent to the SPI
TM
stepper motor driver chain. At a clock
frequency of 16 MHz, with a daisy chain of three SPI
TM
stepper motor drivers of 16 bit datagram length
each, the maximum full step frequency is 16 MHz / 16 / ( 3 * 16 ). This is approximately 20 kHz and
that is much higher than needed for typical stepper motors. But, the micro step rate may be higher,
even if the stepper motor driver does not see all micro steps due to SPI
TM
data rate limit, as long as the
number of skipped micro steps is less than a full step. In this respect, one should remember, that at
high step rates– respectively pulse rates –the differences between micro stepping and full step
excitation vanishes.
3.2 Modes of Motion
The TMC428 has four different modes of motion, programmable individually for each stepper motor,
named RAMP_MODE, SOFT_MODE, VELOCITY_MODE, and HOLD_MODE. For positioning
applications the RAMP_MODE is most suitable, whereas for constant velocity applications the
VELOCITY_MODE is. In RAMP_MODE, the user just sets the position and the TMC428 calculates a
trapezoidal velocity profile and drives autonomously to the target position. During motion, the position
may be altered arbitrarily. The SOFT_MODE is similar to the RAMP_MODE, but the decrease of the
velocity during deceleration is done with a soft, exponentially shaped velocity profile. In
VELOCITY_MODE, a target velocity is set by the user and the TMC429 takes into account user
defined limits of velocity and acceleration. In HOLD_MODE, the user sets target velocities, but the
TMC429 ignores any limits of velocity and acceleration, to realize arbitrary velocity profiles, controlled
