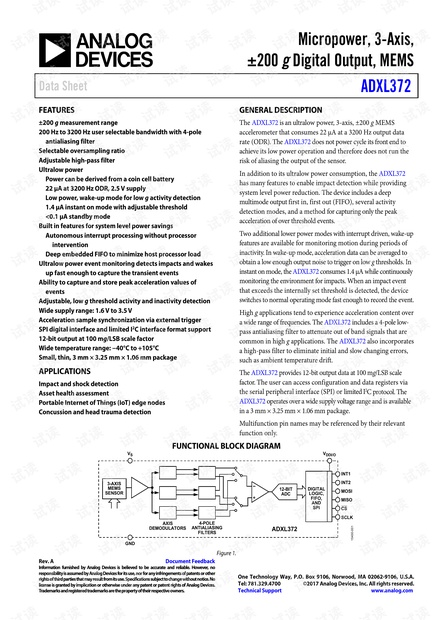

Micropower, 3-Axis,
±200 g Digital Output, MEMS
Data Sheet
ADXL372
Rev. A Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2017 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
±200 g measurement range
200 Hz to 3200 Hz user selectable bandwidth with 4-pole
antialiasing filter
Selectable oversampling ratio
Adjustable high-pass filter
Ultralow power
Power can be derived from a coin cell battery
22 µA at 3200 Hz ODR, 2.5 V supply
Low power, wake-up mode for low g activity detection
1.4 µA instant on mode with adjustable threshold
<0.1 µA standby mode
Built in features for system level power savings
Autonomous interrupt processing without processor
intervention
Deep embedded FIFO to minimize host processor load
Ultralow power event monitoring detects impacts and wakes
up fast enough to capture the transient events
Ability to capture and store peak acceleration values of
events
Adjustable, low g threshold activity and inactivity detection
Wide supply range: 1.6 V to 3.5 V
Acceleration sample synchronization via external trigger
SPI digital interface and limited I
2
C interface format support
12-bit output at 100 mg/LSB scale factor
Wide temperature range: −40°C to +105°C
Small, thin, 3 mm × 3.25 mm × 1.06 mm package
APPLICATIONS
Impact and shock detection
Asset health assessment
Portable Internet of Things (IoT) edge nodes
Concussion and head trauma detection
GENERAL DESCRIPTION
The ADXL372 is an ultralow power, 3-axis, ±200 g MEMS
accelerometer that consumes 22 µA at a 3200 Hz output data
rate (ODR). The ADXL372 does not power cycle its front end to
achieve its low power operation and therefore does not run the
risk of aliasing the output of the sensor.
In addition to its ultralow power consumption, the ADXL372
has many features to enable impact detection while providing
system level power reduction. The device includes a deep
multimode output first in, first out (FIFO), several activity
detection modes, and a method for capturing only the peak
acceleration of over threshold events.
Two additional lower power modes with interrupt driven, wake-up
features are available for monitoring motion during periods of
inactivity. In wake-up mode, acceleration data can be averaged to
obtain a low enough output noise to trigger on low g thresholds. In
instant on mode, the ADXL372 consumes 1.4 µA while continuously
monitoring the environment for impacts. When an impact event
that exceeds the internally set threshold is detected, the device
switches to normal operating mode fast enough to record the event.
High g applications tend to experience acceleration content over
a wide range of frequencies. The
ADXL372 includes a 4-pole low-
pass antialiasing filter to attenuate out of band signals that are
common in high g applications. The ADXL372 also incorporates
a high-pass filter to eliminate initial and slow changing errors,
such as ambient temperature drift.
The ADXL372 provides 12-bit output data at 100 mg/LSB scale
factor. The user can access configuration and data registers via
the serial peripheral interface (SPI) or limited I
2
C protocol. The
ADXL372 operates over a wide supply voltage range and is available
in a 3 mm × 3.25 mm × 1.06 mm package.
Multifunction pin names may be referenced by their relevant
function only.
FUNCTIONAL BLOCK DIAGRAM
V
S
V
DDI/O
GND
3-AXIS
MEMS
SENSOR
AXIS
DEMODULATORS
4-POLE
ANTIALIASING
FILTERS
ADXL372
12-BIT
ADC
DIGITAL
LOGIC,
FIFO,
AND
SPI
INT1
INT2
MOSI
MISO
CS
SCLK
15430-001
Figure 1.

ADXL372 Data Sheet
Rev. A | Page 2 of 56
TABLE OF CONTENTS
Features .............................................................................................. 1
Applications ....................................................................................... 1
General Description ......................................................................... 1
Functional Block Diagram .............................................................. 1
Revision History ............................................................................... 3
Specifications ..................................................................................... 4
Absolute Maximum Ratings ............................................................ 6
Thermal Resistance ...................................................................... 6
Recommended Soldering Profile ............................................... 6
ESD Caution .................................................................................. 6
Pin Configuration and Function Descriptions ............................. 7
Typical Performance Characteristics ............................................. 8
Theory of Operation ...................................................................... 13
Mechanical Device Operation .................................................. 13
Operating Modes ........................................................................ 13
Bandwidth ................................................................................... 13
Power/Noise Trade-Off .............................................................. 14
Power Savings.............................................................................. 15
Autonomous Event Detection ....................................................... 16
Activity and Inactivity................................................................ 16
Motion Warning ......................................................................... 18
Impact Detection Features ............................................................ 19
Wide Bandwidth ......................................................................... 19
Instant On Impact Detection .................................................... 19
Capturing Impact Events ........................................................... 19
FIFO ................................................................................................. 20
Benefits of the FIFO ................................................................... 20
Using the FIFO ........................................................................... 20
Retrieving Data from FIFO ....................................................... 21
Interrupts ......................................................................................... 22
Interrupt Pins .............................................................................. 22
Types of Interrupts ..................................................................... 22
Additional Features ........................................................................ 24
Using an External Clock ............................................................ 24
Synchronized Data Sampling .................................................... 24
Self Test ........................................................................................ 24
User Register Protection ............................................................ 25
User Offset Trims ....................................................................... 25
Serial Communications ................................................................. 26
Serial Interface ............................................................................ 26
Multibyte Transfers .................................................................... 26
Invalid Addresses and Address Folding .................................. 27
Register Map ................................................................................... 30
Register Details ............................................................................... 32
Analog Devices ID Register ...................................................... 32
Analog Devices MEMS ID Register ......................................... 32
Device ID Register ..................................................................... 32
Product Revision ID Register ................................................... 32
Status Register ............................................................................. 33
Activity Status Register .............................................................. 33
FIFO Entries Register, MSB ...................................................... 34
FIFO Entries Register, LSB ........................................................ 34
X-Axis Data Register, MSB ....................................................... 34
X-Axis Data Register, LSB ......................................................... 34
Y-Axis Data Register, MSB ........................................................ 35
Y-Axis Data Register, LSB ......................................................... 35
Z-Axis Data Register, MSB ....................................................... 35
Z-Axis Data Register, LSB ......................................................... 35
Highest Peak Data Registers ..................................................... 36
X-Axis Highest Peak Data Register, MSB ............................... 36
X-Axis Highest Peak Data Register, LSB ................................. 36
Y-Axis Highest Peak Data Register, MSB ................................ 36
Y-Axis Highest Peak Data Register, LSB ................................. 37
Z-Axis Highest Peak Data Register, MSB ............................... 37
Z-Axis Highest Peak Data Register, LSB ................................. 37
Offset Trim Registers ................................................................. 38
X-Axis Offset Trim Register, LSB ............................................. 38
Y-Axis Offset Trim Register, LSB ............................................. 38
Z-Axis Offset Trim Register, LSB ............................................. 38
X-Axis Activity Threshold Register, MSB ............................... 39
X-Axis of Activity Threshold Register, LSB ............................ 39
Y-Axis Activity Threshold Register, MSB ............................... 39
Y-Axis of Activity Threshold Register, LSB ............................ 40
Z-Axis Activity Threshold Register, MSB ............................... 40
Z-Axis of Activity Threshold Register, LSB ............................ 40
Activity Time Register ............................................................... 41
X-Axis Inactivity Threshold Register, MSB ............................ 41
X-Axis of Inactivity Threshold Register, LSB ......................... 42
Y-Axis Inactivity Threshold Register, MSB ............................ 42
Y-Axis of Inactivity Threshold Register, LSB ......................... 43

Data Sheet ADXL372
Rev. A | Page 3 of 56
Z-Axis Inactivity Threshold Register, MSB ............................. 43
Z-Axis of Inactivity Threshold Register, LSB .......................... 43
Inactivity Time Registers............................................................ 44
Inactivity Timer Register, MSB ................................................. 44
Inactivity Timer Register, LSB ................................................... 44
X-Axis Motion Warning Threshold Register, MSB ................ 45
X-Axis of Motion Warning Notification Register, LSB .......... 45
Y-Axis Motion Warning Notification Threshold Register,
MSB ............................................................................................... 46
Y-Axis of Motion Warning Notification Register, LSB .......... 46
Z-Axis Motion Warning Notification Threshold Register,
MSB ............................................................................................... 46
Z-Axis Motion Warning Notification Register, LSB............... 47
High-Pass Filter Settings Register ............................................. 47
FIFO Samples Register ............................................................... 48
FIFO Control Register ................................................................ 48
Interrupt Pin Function Map Registers ..................................... 49
INT2 Function Map Register .................................................... 50
External Timing Control Register ............................................ 50
Measurement Control Register ................................................. 51
Power Control Register .............................................................. 52
Self Test Register ......................................................................... 53
RESET (Clears) Register, Part in Standby Mode .................... 53
FIFO Access Register .................................................................. 53
Applications Information ............................................................... 54
Application Examples ................................................................. 54
Operation at Voltages Other Than 2.5 V ................................. 54
Operation at Temperatures Other Than Ambient .................. 54
Mechanical Considerations for Mounting............................... 54
Axes of Acceleration Sensitivity ................................................ 55
Layout and Design Recommendations .................................... 55
Outline Dimensions ........................................................................ 56
Ordering Guide ........................................................................... 56
REVISION HISTORY
12/2017—Rev. 0 to Rev. A
Changes to Turn-On Time, Measurement Mode Instruction to
Valid Data Parameter; Table 1 ......................................................... 5
Changes to Instant On Impact Detection Section ...................... 19
Changes to Address: 0x3A, Reset: 0x00, Name: FIFO_CTL
Section .............................................................................................. 48
3/2017—Revision 0: Initial Version

ADXL372 Data Sheet
Rev. A | Page 4 of 56
SPECIFICATIONS
T
A
= 25°C, V
S
= 2.5 V, V
DDI/O
= 2.5 V, 3200 Hz ODR, 1600 Hz bandwidth, acceleration = 0 g, default register settings, unless otherwise
noted. All minimum and maximum specifications are guaranteed. Typical specifications may not be guaranteed.
Table 1.
Parameter Test Conditions/Comments Min Typ Max Unit
SENSOR INPUT
Each axis
Measurement Range ±200
g
Nonlinearity Percentage of full scale ±0.5 %
Sensor Resonant Frequency 16 kHz
Cross Axis Sensitivity
1
±2.5 %
OUTPUT RESOLUTION Each axis
All Operating Modes 12 Bits
SCALE FACTOR Each axis
Scale Factor Calibration Error
±10 %
Scale Factor at X
OUT
, Y
OUT
, Z
OUT
Expressed in mg/LSB 100 mg/LSB
Expressed in LSB/g 10 LSB/g
Scale Factor Change Due to Temperature
2
0.1
%/°C
0 g OFFSET Each axis
0 g Output X
OUT
, Y
OUT
,
Z
OUT
At V
S
= 2.5 V −3 ±1 +3
g
1.6 V ≤ V
S
≤ 3.5 V −7 ±1 +7
g
0 g Offset vs. Temperature
2
Normal Operation X
OUT
, Y
OUT
, Z
OUT
±50 mg/°C
Low Noise Mode X
OUT
, Y
OUT
, Z
OUT
±35 mg/°C
NOISE PERFORMANCE
RMS Noise Each axis
Normal Operation 3.5 LSB
Low Noise Mode
3
LSB
BANDWIDTH User selectable
ODR
400
6400
Hz
High-Pass Filter, −3 dB Corner
3
0.24
30.48
Hz
Low-Pass (Antialiasing) Filter, −3 dB Corner
4
4-pole low-pass filter 200 ODR/2 Hz
POWER SUPPLY
Operating Voltage Range (V
S
)
1.6 2.5 3.5 V
Input/Output Voltage Range (V
DDI/O
)
1.6 2.5 V
S
V
Supply Current
Measurement Mode 3200 Hz ODR
Normal Operation 22 µA
Low Noise Mode
33
µA
Instant On Mode 1.4 µA
Wake-Up Mode Varies with wake-up rate
At slowest wake-up rate 0.77 µA
Standby <0.1 µA
Power Supply Rejection Ratio (PSRR) C
S
= 1.1 µF, C
IO
= 1.1 µF, input is
100 mV sine wave on V
S
Input Frequency
100 Hz to 1 kHz −20 dB
1 kHz to 250 kHz −17 dB

Data Sheet ADXL372
Rev. A | Page 5 of 56
Parameter Test Conditions/Comments Min Typ Max Unit
Turn-On Time 3200 Hz ODR
Power-Up to Standby C
S
= 1.1 µF, C
IO
= 1.1 µF 5 ms
Measurement Mode Instruction to Valid Data Filter settle bit = 1 16 ms
Filter settle bit = 0 370 ms
Instant On ULP Monitoring to Full Bandwidth Data
1
ms
ENVIRONMENTAL TEMPERATURE
Operating Temperature Range −40 +105 °C
1
Cross axis sensitivity is defined as coupling between any two axes.
2
−40°C to +25°C or +25°C to +105°C.
3
This parameter has an available corner frequency scale with the ODR setting.
4
Bandwidth and ODR are set independent of each other.
剩余55页未读,继续阅读


















安全验证
文档复制为VIP权益,开通VIP直接复制

评论0
