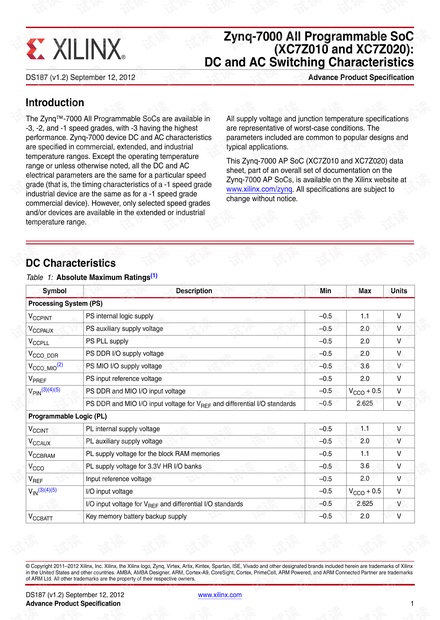

DS187 (v1.2) September 12, 2012 www.xilinx.com

Advance Product Specification 1

in the United States and other countries. AMBA, AMBA Designer, ARM, Cortex-A9, CoreSight, Cortex, PrimeCell, ARM Powered, and ARM Connected Partner are trademarks

of ARM Ltd. All other trademarks are the property of their respective owners.

Introduction

The Zynq™-7000 All Programmable SoCs are available in

-3, -2, and -1 speed grades, with -3 having the highest

performance. Zynq-7000 device DC and AC characteristics

are specified in commercial, extended, and industrial

temperature ranges. Except the operating temperature

range or unless otherwise noted, all the DC and AC

electrical parameters are the same for a particular speed

grade (that is, the timing characteristics of a -1 speed grade

industrial device are the same as for a -1 speed grade

commercial device). However, only selected speed grades

and/or devices are available in the extended or industrial

temperature range.

All supply voltage and junction temperature specifications

are representative of worst-case conditions. The

parameters included are common to popular designs and

typical applications.

This Zynq-7000 AP SoC (XC7Z010 and XC7Z020) data

sheet, part of an overall set of documentation on the

Zynq-7000 AP SoCs, is available on the Xilinx website at

www.xilinx.com/zynq

. All specifications are subject to

change without notice.

DC Characteristics

Zynq-7000 All Programmable SoC

(XC7Z010 and XC7Z020):

DC and AC Switching Characteristics

DS187 (v1.2) September 12, 2012 Advance Product Specification

Table 1: Absolute Maximum Ratings

(1)

Symbol Description Min Max Units

Processing System (PS)

CCPINT

PS internal logic supply –0.5 1.1 V

CCPAUX

PS auxiliary supply voltage –0.5 2.0 V

CCPLL

PS PLL supply –0.5 2.0 V

CCO_DDR

PS DDR I/O supply voltage –0.5 2.0 V

CCO_MIO

(2)

PS MIO I/O supply voltage –0.5 3.6 V

PREF

PS input reference voltage –0.5 2.0 V

(3)(4)(5)

PS DDR and MIO I/O input voltage

–0.5 V

CCO

+0.5

PS DDR and MIO I/O input voltage for V

REF

and differential I/O standards

–0.5 2.625

Programmable Logic (PL)

CCINT

PL internal supply voltage –0.5

1.1

CCAUX

PL auxiliary supply voltage –0.5

2.0

CCBRAM

PL supply voltage for the block RAM memories –0.5

1.1

CCO

PL supply voltage for 3.3V HR I/O banks –0.5

3.6

REF

Input reference voltage –0.5

2.0

(3)(4)(5)

I/O input voltage

–0.5 V

CCO

+0.5

I/O input voltage for V

REF

and differential I/O standards

–0.5 2.625

CCBATT

Key memory battery backup supply

–0.5 2.0

Zynq-7000 All Programmable SoC (XC7Z010 and XC7Z020): DC and AC Switching Characteristics

DS187 (v1.2) September 12, 2012 www.xilinx.com

Advance Product Specification 2

XADC

CCADC

XADC supply relative to GNDADC

–0.5 2.0

REFP

XADC reference input relative to GNDADC

–0.5 2.0

Temperature

STG

Storage temperature (ambient) –65 150 °C

SOL

Maximum soldering temperature for Pb/Sn component bodies

(7)

–+220°C

Maximum soldering temperature for Pb-free component bodies

(7)

–+260°C

Maximum junction temperature

(7)

–+125°C

Notes:

1. Stresses beyond those listed under Absolute Maximum Ratings might cause permanent damage to the device. These are stress ratings only,

and functional operation of the device at these or any other conditions beyond those listed under Operating Conditions is not implied.

Exposure to Absolute Maximum Ratings conditions for extended periods of time might affect device reliability.

2. Applies to both MIO supply banks V

CCO_MIO0

and V

CCO_MIO1

3. The lower absolute voltage specification always applies.

4. For I/O operation, refer to UG471

, 7 Series FPGAs SelectIO Resources User Guide or UG585, Zynq-7000 All Programmable SoC Technical

Reference Manual.

5. The maximum limit applies to DC and AC signals.

6. For maximum undershoot and overshoot AC specifications, see Tabl e 4.

7. For soldering guidelines and thermal considerations, see UG

865, Zynq-7000 All Programmable SoC Packaging and Pinout Specification.

Table 2: Recommended Operating Conditions

(1)

Symbol Description Min Typ Max Units

CCPINT

PS internal supply voltage 0.95 1.00 1.05 V

CCPAUX

PS auxiliary supply voltage 1.71 1.80 1.89 V

CCPLL

PS PLL supply 1.71 1.80 1.89 V

CCO_DDR

PS DDR I/O supply voltage 1.14 1.89 V

CCO_MIO

(2)

PS MIO I/O supply voltage for MIO banks 1.71 – 3.465 V

(3)

PS DDR and MIO I/O input voltage –0.20 – V

CCO

+0.20 V

PS DDR and MIO I/O input voltage for V

REF

and differential I/O

standards

–0.20 – 2.625 V

CCINT

PL internal supply voltage 0.95 1.00 1.05 V

CCAUX

PL auxiliary supply voltage 1.71 1.80 1.89 V

CCBRAM

PL block RAM supply voltage 0.95 1.00 1.05 V

CCO

(4)(5)

PL supply voltage for 3.3V HR I/O banks 1.14 – 3.465 V

(3)

I/O input voltage –0.20 – V

CCO

+0.20 V

I/O input voltage for V

REF

and differential I/O standards –0.20 – 2.625 V

(6)

Maximum current through any pin in a powered or unpowered bank

when forward biasing the clamp diode

––10mA

CCBATT

(7)

Battery voltage 1.0 – 1.89 V

XADC

CCADC

XADC supply relative to GNDADC 1.71 1.80 1.89 V

REFP

Externally supplied reference voltage 1.20 1.25 1.30 V

Table 1: Absolute Maximum Ratings

(1)

(Cont’d)

Symbol Description Min Max Units

Zynq-7000 All Programmable SoC (XC7Z010 and XC7Z020): DC and AC Switching Characteristics

DS187 (v1.2) September 12, 2012 www.xilinx.com

Advance Product Specification 3

Temperature

Junction temperature operating range for commercial (C) temperature

devices

0–85°C

Junction temperature operating range for extended (E) temperature

devices

0–100°C

Junction temperature operating range for industrial (I) temperature

devices

–40 – 100 °C

Notes:

1. All voltages are relative to ground. The PL and PS share a common ground.

2. Applies to both MIO supply banks V

CCO_MIO0

and V

CCO_MIO1

3. The lower absolute voltage specification always applies.

4. Configuration data is retained even if V

CCO

drops to 0V.

5. Includes V

CCO

of 1.2V, 1.5V, 1.8V, 2.5V, and 3.3V.

6. A total of 200 mA per PS or PL bank should not be exceeded.

7. V

CCBATT

is required only when using bitstream encryption. If battery is not used, connect V

CCBATT

to either ground or V

CCAUX

Table 3: DC Characteristics Over Recommended Operating Conditions

Symbol Description Min Typ

(1)

Max Units

DRINT

Data retention V

CCINT

voltage (below which configuration data might be lost) 0.75 – – V

DRI

Data retention V

CCAUX

voltage (below which configuration data might be lost) 1.5 – – V

REF

leakage current per pin – – 15 µA

Input or output leakage current per pin (sample-tested) – – 15 µA

(2)

Die input capacitance at the pad – – 8 pF

RPU
