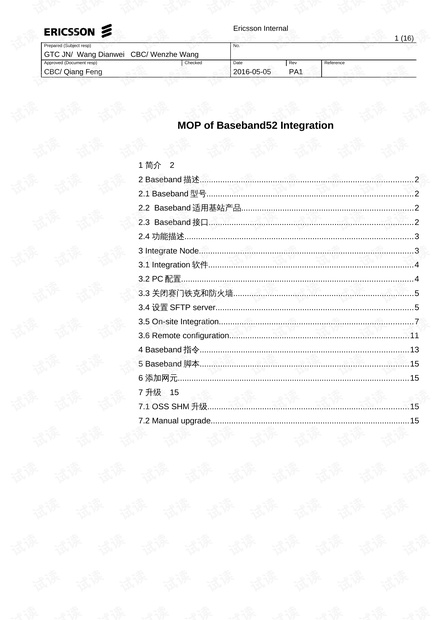

Ericsson Internal
1 (16)
Prepared (Subject resp) No.
GTC JN/ Wang Dianwei CBC/ Wenzhe Wang
Approved (Document resp) Checked Date Rev Reference
CBC/ Qiang Feng 2016-05-05 PA1
MOP of Baseband52 Integration
1 简介 2
2 Baseband 描述.............................................................................................2
2.1 Baseband 型号..........................................................................................2
2.2 Baseband 适用基站产品...........................................................................2
2.3 Baseband 接口.........................................................................................2
2.4 功能描述....................................................................................................3
3 Integrate Node..............................................................................................3
3.1 Integration 软件..........................................................................................4
3.2 PC 配置.....................................................................................................4
3.3 关闭赛门铁克和防火墙...............................................................................5
3.4 设置 SFTP server......................................................................................5
3.5 On-site Integration.....................................................................................7
3.6 Remote configuration..............................................................................11
4 Baseband 指令...........................................................................................13
5 Baseband 脚本...........................................................................................15
6 添加网元.....................................................................................................15
7 升级 15
7.1 OSS SHM 升级........................................................................................15
7.2 Manual upgrade.......................................................................................15
Ericsson Internal
2
(
16
)
Prepared (Subject resp) No.
GTC JN/ Wang Dianwei CBC/ Wenzhe Wang
Approved (Document resp) Checked Date Rev Reference
CBC/ Qiang Feng 2016-05-05 PA1
1 简介
本文档对 Baseband 5216/5212 产品做简单介绍,并描述 Integration 方法和流程,
作为无线工程师的开站参考。
2 Baseband 描述
2.1 Baseband 型号
Baseband5216 和 Baseband5212
2.2 Baseband 适用基站产品
Baseband 适用于以下基站产品
RBS6101 RBS6102 RBS6110 RBS6120 RBS6201 RBS6202 RBS6301 RBS6601
2.3 Baseband 接口
接口 连接 描述
Power ET20 A
电源
EC bus RJ-45
控制总线
LMT RJ-45
本地调测口
TN A RJ-45
100Mb/1G 以太网传输,电口
TN B, C SFP+
1/10G 以太网传输,电口/光口
RI A-F SFP+
Baseband 和 RRU/RU 的接口
IDL A, B Xcede
Baseband 之间的接口
Ericsson Internal
3
(
16
)
Prepared (Subject resp) No.
GTC JN/ Wang Dianwei CBC/ Wenzhe Wang
Approved (Document resp) Checked Date Rev Reference
CBC/ Qiang Feng 2016-05-05 PA1
SYNC RJ-45
同步口
2.4 功能描述
A、时钟功能
B、加载软件
C、下行链路基带处理
D、上行链路基带处理
E、IP 业务管理
F、无线接口
G、传输处理
H、外部同步
I、控制供电
3 Integrate Node
Integration 流程
On site Integration
Autointegration
web GUI
SiteBasic
configuration
SiteEquipment
configuration
Remote
configuration
Enrollment
RN
configuration
TN
configuration
Feature、relation、
baseline Etc
Integration 准备的脚本、UP、LKF
种类 项目 格式 注释
RBS
Installation
File
RbsSummary File Netconf (xml) Paths to the files used for integration
SiteBasic Template Netconf (xml)
Security management, system
management, and transport network
configuration
SiteEquipment Template Netconf (xml) RBS equipment configuration
TN Template Netconf (xml)
Transport configuration (SctpProfile,
Synchronization and QoS )
RN Template Netconf (xml)
Radio configuration (SectorCarrier,
EutranCellFDD and TermpointToMME)
UP Upgrade Package (UP) ZIP RBS software installation
LKF License Key File (LKF) XML License keys for node features
MOS Script Feature Activation Script Moshell (.mos) optional
Ericsson Internal
4
(
16
)
Prepared (Subject resp) No.
GTC JN/ Wang Dianwei CBC/ Wenzhe Wang
Approved (Document resp) Checked Date Rev Reference
CBC/ Qiang Feng 2016-05-05 PA1
Post Integration Script Moshell (.mos) optional
CellRelation Script Moshell (.mos) optional
3.1 Integration 软件
A、moshell (建议 16.0C 版本)
B、SFTP server (推荐 FreeFTPd)
电脑安装 SFTP server,用于存储和传输配置文件到 Baseband
C、浏览器
Browser Version
Internet Explorer 10
Mozilla Firefox, 32 bit and 64 bit 35
Google Chrome 40
3.2 PC 配置
连接 Baseband 的 LMT 与电脑连接,LMT 端口的默认 IP 地址为 169.254.2.2,电脑
的 IP 地址必须与 Baseband 在同一子网。
