PAW3205DB-TJ3T
A
ll rights strictly reserved any portion in this paper shall not be reproduced, copied or transformed to any other forms without permission. 1
專利公示
：本產品業經本公司獲得台灣專利第 509867, 530489, 529309, 560179, 526662, 554497, I230890, I287732 號專利在案。
P
ixArt Ima
g
in
g
Inc.
E
-mail: fae_service@pixart.com.tw V0.2, Nov. 2011

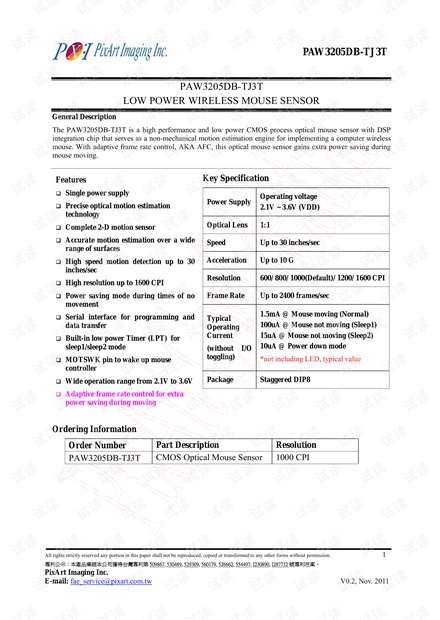

PAW3205DB-TJ3T
LOW POWER WIRELESS MOUSE SENSOR
General Description
The PAW3205DB-TJ3T is a high performance and low power CMOS process optical mouse sensor with DSP
integration chip that serves as a non-mechanical motion estimation engine for implementing a computer wireless
mouse. With adaptive frame rate control, AKA AFC, this optical mouse sensor gains extra power saving during
mouse moving.
Features
Single power supply
Precise optical motion estimation
technology
Complete 2-D motion sensor
Accurate motion estimation over a wide
range of surfaces
High speed motion detection up to 30
inches/sec
High resolution up to 1600 CPI
Power saving mode during times of no
movement
Serial interface for programming and
data transfer
Built-in low power Timer (LPT) for
sleep1/sleep2 mode
MOTSWK pin to wake up mouse
controller
Wide operation range from 2.1V to 3.6V
Adaptive frame rate control for extra
power saving during moving
Key Specification
Power Supply
Operating voltage
2.1V ~ 3.6V (VDD)
Optical Lens 1:1
Speed Up to 30 inches/sec
Acceleration Up to 10 G
Resolution 600/ 800/ 1000(Default)/ 1200/ 1600 CPI
Frame Rate Up to 2400 frames/sec
Typical
Operating
Current
(without I/O
toggling)
1.5mA @ Mouse moving (Normal)
100uA @ Mouse not moving (Sleep1)
15uA @ Mouse not moving (Sleep2)
10uA @ Power down mode
*not including LED, typical value
Package Staggered DIP8
Ordering Information
Order Number
Part Description Resolution
PAW3205DB-TJ3T
CMOS Optical Mouse Sensor 1000 CPI
