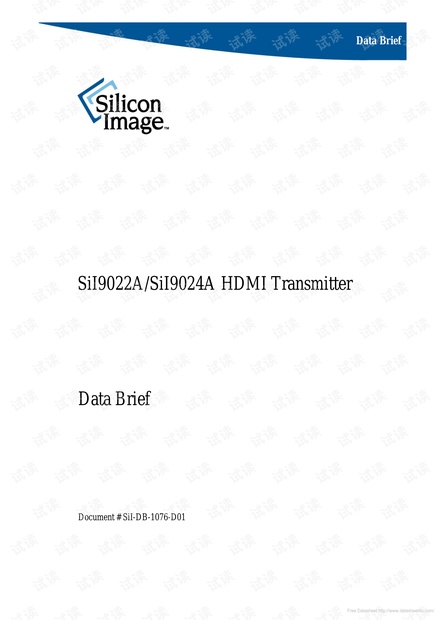

SiL9022A-Silicon Image.pdf

Copyright © 2009-2011 Silicon Image, Inc. All rights reserved. These materials contain proprietary and confidential

information (including trade secrets, copyright and other interests) of Silicon Image, Inc. You may not use these

materials except only for your bona fide non-commercial evaluation of your potential purchase of products and/or

services from Silicon Image or its affiliates, and/or only in connection with your purchase of products and/or services

from Silicon Image or its affiliates, and only in accordance with the terms and conditions herein. You have no right to

copy, modify, transfer, sublicense, publicly display, create derivative works of or distribute these materials, or otherwise

make these materials available, in whole or in part, to any third party.

Group E:1 or foreign national thereof (whether in the U.S. or abroad) may require an export license or other approval from

the U.S. Department of Commerce. For more information, contact the Silicon Image Director of Global Trade Compliance.

To request other materials, detailed hardware and software guides, and additional information, contact your local Silicon

Image, Inc. sales office or visit the Silicon Image, Inc. web site at www.siliconimage.com. Information about obtaining

licenses required for using HDMI and HDCP technologies is available from www.hdmi.org and www.digital-cp.com.

© 2009-2011 Silicon Image. Inc. All rights reserved.

personal mobile devices connect directly to a large

installed base of HDMI TVs and DVI PC monitors by

using the flexible audio and video interfaces provided

by this ultra-low-power solution. S/PDIF or I

S inputs

enable a pure digital audio connection to virtually any

system audio processor or codec. This transmitter is the

next generation of its family and is an enhanced

replacement for the SiI9022/SiI9024 device, with lower

power and enhanced features.

xvYCC metadata support

BTA-T1004 video input format

Integrated color space converter allows direct

connection to all major MPEG decoders, including

those that provide only an ITU-R.656 output

Internal DE generator supports non-embedded sync

formats

HDMI, HDCP, and DVI compatible

HDMI Type A, Type-C, and micro-D connector

support

Consumer Electronics Control (CEC) interface

incorporates an HDMI-compliant CEC I/O with

hardware protocol and arbitration logic, and

requires no external calibration

Monitor detection is supported through both Hot

Plug and Receiver Sense circuits

Single slave I

Four I

audio with programmable channel mapping

(49-ball package supports one I

S input)

DVD-Audio input (2 or up to 8 channels)

MCLK is not required for I

S and S/PDIF

S/PDIF input supports 2-channel PCM or compressed

active, 150 W standby

81-ball VFBGA (4.0 x 4.0 mm) package

72-pin QFN (10 x 10 mm) package

49-ball VFBGA (4.0 x 4.0 mm) package

Standard part covers extended (–20 to +85 °C)

temperature range.
