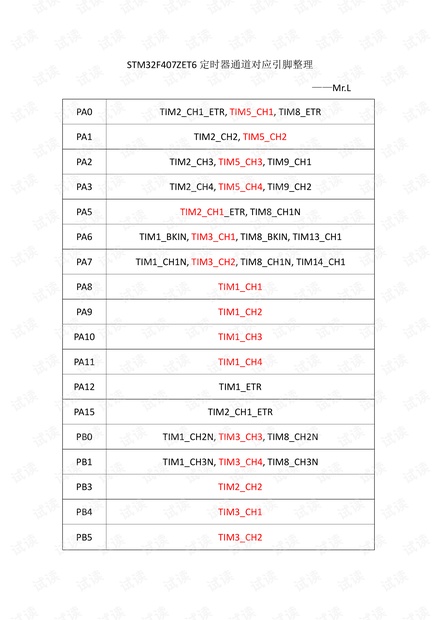

STM32F407ZET6 定时器通道对应引脚整理
——Mr.L
PA0
TIM2_CH1_ETR, TIM5_CH1, TIM8_ETR
PA1
TIM2_CH2, TIM5_CH2
PA2
TIM2_CH3, TIM5_CH3, TIM9_CH1
PA3
TIM2_CH4, TIM5_CH4, TIM9_CH2
PA5
TIM2_CH1_ETR, TIM8_CH1N
PA6
TIM1_BKIN, TIM3_CH1, TIM8_BKIN, TIM13_CH1
PA7
TIM1_CH1N, TIM3_CH2, TIM8_CH1N, TIM14_CH1
PA8
TIM1_CH1
PA9
TIM1_CH2
PA10
TIM1_CH3
PA11
TIM1_CH4
PA12
TIM1_ETR
PA15
TIM2_CH1_ETR
PB0
TIM1_CH2N, TIM3_CH3, TIM8_CH2N
PB1
TIM1_CH3N, TIM3_CH4, TIM8_CH3N
PB3
TIM2_CH2
PB4
TIM3_CH1
PB5
TIM3_CH2
